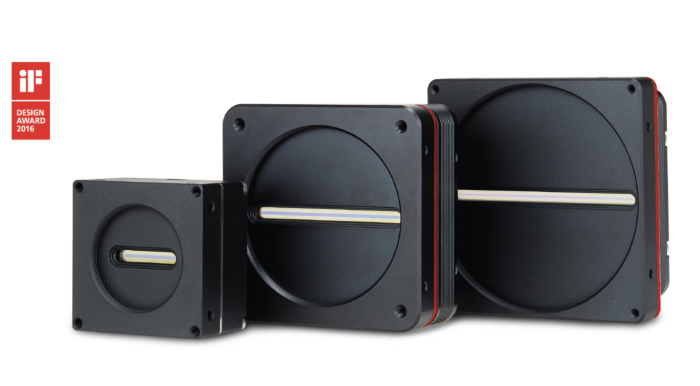

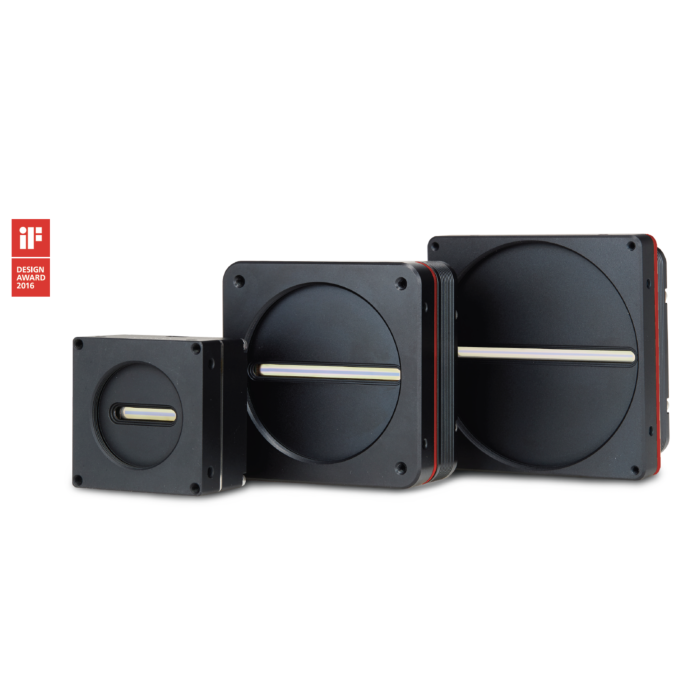

Vieworks VT-12K5C-E60A-64 TDI Line Scan Camera, 12480 × 64 Resolution, 67 kHz, Hybrid Color Sensor, Camera Link, M72 Mount
The Vieworks VT-12K5C-E60A-64 is a precision-engineered TDI line scan camera built to meet demanding industrial imaging needs. With an exceptional 12,480 × 64 resolution and a 5.0 µm pixel size, this advanced imaging sensor captures ultra-sharp and high-speed data, even in low-light conditions. Powered by 64 TDI stages and capable of reaching up to 67 kHz (or 100 kHz with 2×2 binning), it offers the sensitivity, low noise, and fast throughput required for mission-critical inspection workflows.
Designed with professional integration in mind, this Vieworks TDI camera features a flexible Camera Link interface (Base/Medium/Full/10 Tap) and an M72 mount for versatile lens compatibility. Built-in gain control, gamma correction, and PRNU/DSNU calibration optimize image quality for precise analysis. Compact (90 × 90 × 38 mm), lightweight (500 g), and energy-efficient (12 W), the VT12K5CE60A64 is ideal for equipment integrators and machine vision engineers building next-generation high-speed inspection systems.
Features:
- 12,480 × 64 pixel resolution for superior image clarity
- 5.0 µm × 5.0 µm pixel size for high detail capture
- Line rate up to 67 kHz (100 kHz with 2×2 binning)
- 64 TDI stages ensuring exceptional light sensitivity
- Camera Link (Base/Medium/Full/10 Tap) interface
- Configurable analog and digital gain control
- PRNU/DSNU correction with gamma and black level tuning
- Compact 90 × 90 × 38 mm form factor, 500 g weight
- M72 mount for optical flexibility
- Low 12 W power consumption for efficient operation
Applications:
- Display Inspection
- Wafer Analysis
- PCB Testing
- Document Scanning
- System Integration
| Resolution (H × V) | 12480 x 64 |
| Pixel Size | 5.0 ㎛ × 5.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 100㎑ |
| Max. Line Rate (2 x 2 Binning) | 100㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 12MB |
| Camera Link Pixel Clock | 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 64 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.66 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 0.75㎜ |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃) Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 4.5 W |
| Configuration SW | Configurator |
