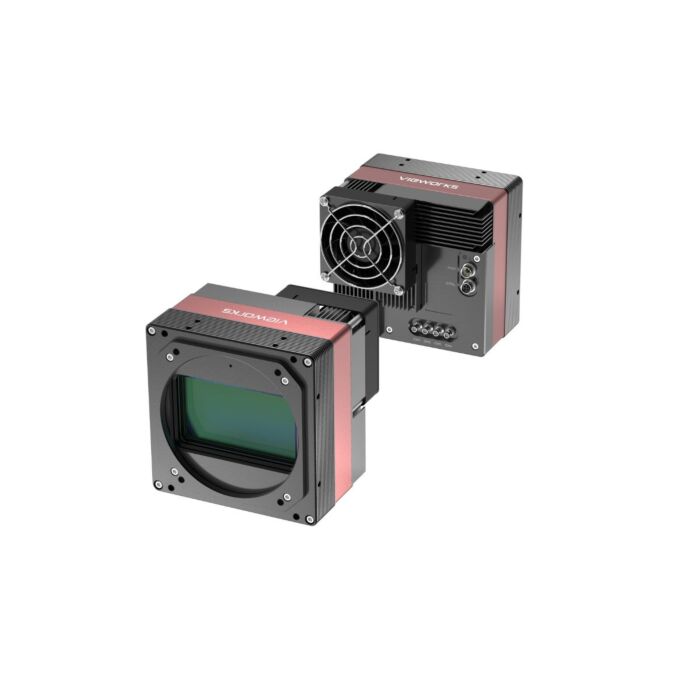

Vieworks VP-144MX2-M 15 12000 × 12000 resolution, 15 fps, DCS144M sensor, pixel size: 3.5 Area Scan Camera
SKU
VP-144MX2
Quick Overview
144 Megapixel Thermoelectric Peltier Cooled Camera with CoaXPress 2.0 Interface
The VP-144MX2, the latest model of the industrial proven VP series, are new 144-Megapixel CoaXPress 2.0 cameras and adopt the cutting-edge High Speed CMOS Image Sensor. The cameras in this series use thermoelectric Peltier (TEC) cooling technology developed for and used by many demanding medical market customers.
The TEC maintains the operating temperature of the image sensor at up to 10 degrees below ambient temperature. The camera provides a stable operating condition and the ability to expose for a long period of time to increase camera sensitivity. Featuring the stable operating capability and high resolution, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.
Features:
- Thermoelectric Peltier Cooled - 10°C below
- 144-Megapixel Resolution
- CoaXPress 2.0 Interface up to 15 fps at 50 Gbps using 4 Channels
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Pixel by Pixel PRNU Correction
- Flat Field Correction with Sequencer Control y Hot Pixel Correction
- Defective Pixel Correction
Applications:
- FPD and Electronics Inspection
- Semiconductor Inspection
- Research and Scientific Imaging
- Document / Film Scanning
| Resolution (H × V) | 12000 × 12000 |
| Sensor | DCS144M |
| Optical Format (Diagonal) | 42.0 ㎜ × 42.0 ㎜ |
| Pixel Size | 3.5 ㎛ × 3.5 ㎛ |
| Interface | CoaXPress 2.0 (CXP-6/10/12) |
| Max. Frame Rate (8 bit) | 15 fps |
| Exposure Time | 1 ㎲ - 60 s |
| Binning | Sensor: Horizontal and Vertical Dependent: X1 Logic: Horizontal and Vertical Dependent: X1, X2 |
| Pixel Data Format | Mono - 8 / 10 / 12 bit |
| Electronic Shutter | Global Shutter |
| Exposure Mode | Timed, Trigger Width |
| Dynamic Range | 60 dB at 12 bit |
| Gain Control | Analog - 1.0x - 4× Digital - 1× ~ 32× |
| Black Level Control | 0 - 255 LSB at 12 bit |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger, UserOutput0, CXP, Timer |
| Extrenal Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dimension / Weight | 125 ㎜ × 125 ㎜ × 106 ㎜, 2 kg (with the mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | M72-mount Custom mount available upon request |
| Power | External - 11 ~ 24 V DC Dissipation - Typ. 36 W |
