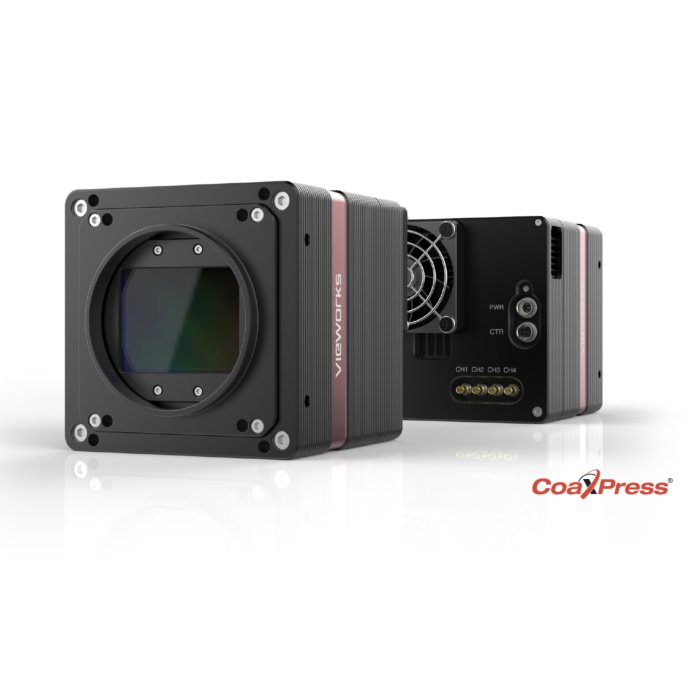

Vieworks VNP-604MX-M/C 6 H 604MP CoaXPress Area Scan Camera with Sony IMX411 Sensor
The Vieworks VNP-604MX-M/C 6 H redefines industrial imaging performance with its Sony IMX411 sensor, delivering a stunning 604-megapixel resolution and advanced pixel-shifting for unparalleled image fidelity. Designed for applications requiring extreme precision, this area scan camera captures at up to 6.2 fps in 1× mode and 1.5 fps in 4× mode, ensuring comprehensive detail for high-accuracy inspection.
Its thermoelectric Peltier cooling system operates up to 15±2℃ below ambient, minimizing sensor noise and ensuring stable image quality even during extended operation. With ultra-fast CoaXPress data transmission up to 25 Gbps and integrated flat-field and pixel correction features, the VNP-604MX-M/C 6 H consistently delivers superior clarity, accuracy, and reliability for professional imaging and inspection environments.
Feature:
- 604 MP resolution via precision nano-stage pixel-shifting
- Sony IMX411 CMOS sensor with 3.76 µm pixel size
- Thermoelectric Peltier cooling keeps sensor 15±2℃ below ambient
- CoaXPress interface supports data rates up to 25 Gbps
- Extended image capture up to 1,359 MP in 4× mode
- Flat-field, DSNU, PRNU, and dynamic pixel correction modes
- Rolling shutter with versatile trigger synchronization
- Wide 78 dB dynamic range for high-contrast imaging
Applications:
- FPD Inspection
- Semiconductor Testing
- PCB Inspection
- Film Scanning
- Optical Metrology
| Model | VNP-604MX-M/C 6 H |
| Resolution (H×V) | 1× (1 Shot) 14192 × 10640; 4× (4 Shot) 28384 × 21280 |
| Sensor | SONY IMX411 |
| Sensor Size (Diagonal) | 53.36 ㎜ × 40.01 ㎜ (66.7 ㎜) |
| Pixel Size | 3.76 ㎛ × 3.76 ㎛ |
| Interface | CoaXPress |
| Max. Frame Rate | 1× Mode 6.2 fps; 4× Mode 1.5 fps |
| Exposure Time | 1 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 546.4 fps at 2 Lines (12 bit) |
| Pixel Data Format | Mono 8 / Mono 10 / Mono 12; Color RG Bayer 8 / RG Bayer 10 / RG Bayer 12 |
| Electronic Shutter | Rolling Shutter |
| Trigger Synchronization | Overlapped Acquisition Free-Run; Hardware, Software, or CXP Trigger |
| Dynamic Range | 78 ㏈ |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 ~ 255 LSB at 12 bit |
| Shift Range | 0 ~ 15 ㎛, 1 ㎚ step |
| Cooling Method | Thermoelectric Peltier Cooling |
| Cooling Performance | 15±2℃ below ambient temperature |
| Dimensions / Weight | 110 ㎜ × 110 ㎜ × 134 ㎜, 2.5 ㎏ |
| Temperature Range | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | M72-mount, Custom mount available |
| Power Supply | External 11 ~ 24 V DC |
| Power Dissipation | Typ. 31.0 W |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
