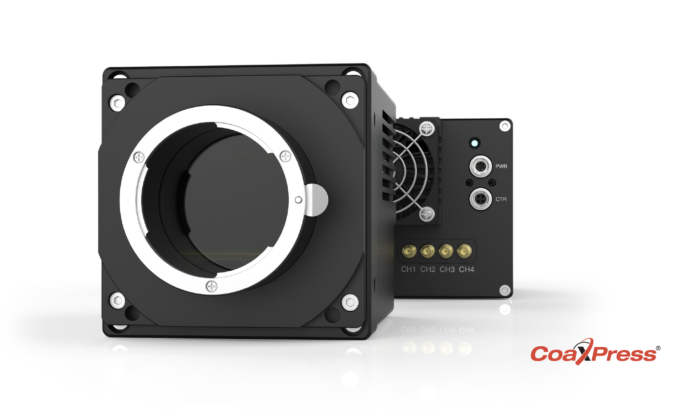

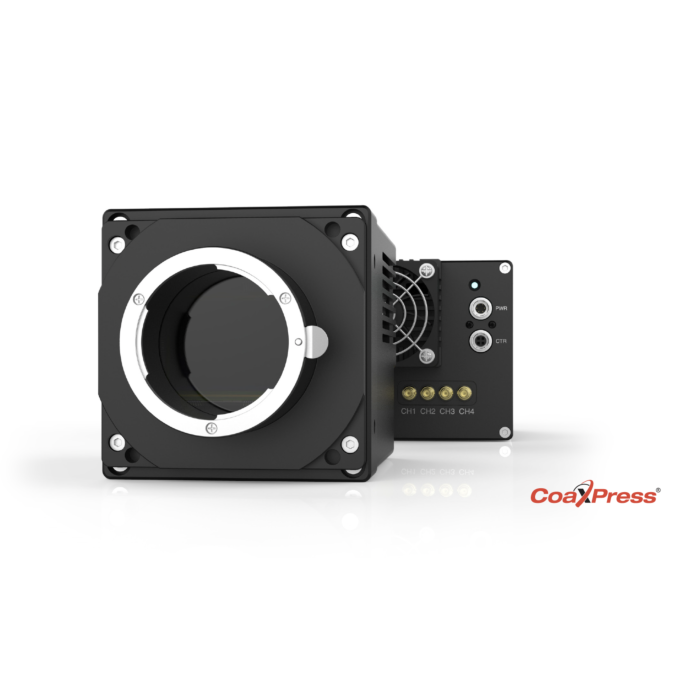

Vieworks VNP-200MX-M/C 30 7920 × 6004 resolution, 30 fps, CMV50000 sensor, pixel size: 4.6 Area Scan Camera
Unmatched Image Precision with Vieworks VNP-200MX
The Vieworks VNP-200MX-M/C 30 area scan camera by Aegis Electronic Group Inc. is designed for industrial and scientific applications demanding exceptionally high-resolution imaging. Powered by a CMV50000 sensor, this 200-megapixel camera achieves remarkable detail and quality using advanced pixel-shifting technology, enhancing resolution up to 427 million pixels in 9-shot mode. The built-in thermoelectric Peltier cooling system keeps the camera’s sensor up to 10 degrees below ambient, reducing noise for sharper image clarity.
The VNP-200MX’s CoaXPress interface transfers data at up to 25 Gbps via four coaxial channels, providing smooth performance even at 30 fps. Pixel defect, flat-field, DSNU, and PRNU corrections further elevate image quality, making this camera ideal for FPD and PCB inspection, semiconductor inspection, high-speed 3D imaging, film/document scanning, and advanced research imaging. Customers in industrial machine vision and scientific fields will find that the VNP200MXM/C 30 offers unmatched resolution, accuracy, and reliability, ideal for quality-focused tasks where precision is key.
Features:
- Resolution: 50MP, up to 427MP with pixel shift
- Cooling System: Thermoelectric Peltier cooling
- Interface: CoaXPress, 25 Gbps over 4 CH, up to 30 fps
- Image Quality Enhancements: Pixel defect, flat field, DSNU, PRNU corrections
- Sensor: AMS CMOSIS CMV50000
Applications:
- FPD and PCB inspection
- Semiconductor inspection
- High-speed 3D imaging
- Document and film scanning
- Research and scientific imaging
| Model | VNP-200MX-M/C 30 |
| Resolution (H × V) | 7920 × 6004 |
| Sensor | AMS CMOSIS CMV 50000 |
| Sensor Size | 36.43 mm × 27.62 mm (Diagonal: 45.72 mm, Optical Format: 35 mm) |
| Sensor Type | High Speed CMOS Image Sensor |
| Pixel Size | 4.6 μm × 4.6 μm |
| Interface | CoaXPress |
| Max. Frame Rate |
|
| Exposure Time | 1 μs - 60 s (1 μs step) |
| Partial Scan (Max. Speed) | 3968 fps at 4 Lines |
| Pixel Data Format | Mono 8 / Mono 10 / Mono 12, BG Bayer 8 / BG Bayer 10 / BG Bayer 12 |
| Electronic Shutter | Global Shutter |
| Exposure Mode | Free-Run, Timed, Trigger Width |
| Dynamic Range | 64 dB |
| Gain Control | 1× ~ 30× (1/1024 step) |
| Black Level Control | 0 ~ 256 LSB at 12 bit (1 LSB step) |
| Shift Range | 0 ~ 7.5 μm, 1 nm step |
| Cooling Method | Thermoelectric Peltier Cooling |
| Cooling Performance | 11℃ below ambient with fan |
| Dimensions / Weight | 90 mm × 90 mm × 191 mm, 1,920 g |
| Temperature | Operating: -5℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| Power | External 10 ~ 24 V DC, Typ. 26.0 W |
| PoCXP | Not supported |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
