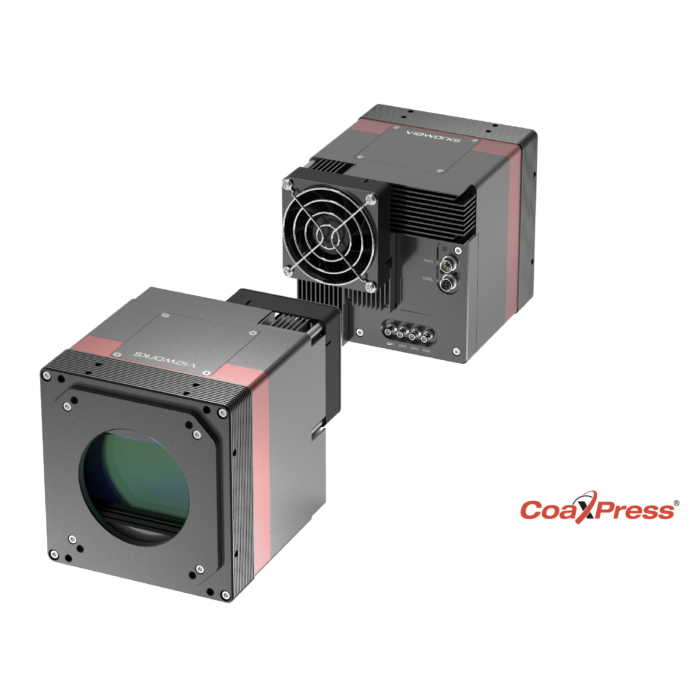

Vieworks VNP-1152MX2-M 15 High-Resolution 1152MP CoaXPress 2.0 Area Scan Camera
The Vieworks VNP-1152MX2-M 15 redefines high-performance industrial imaging with exceptional 1152-megapixel pixel-shifting capability and premium image fidelity. Designed for precision-driven tasks, it delivers stunning 24000 × 12000 resolution at up to 15 fps, ideal for machine vision environments requiring ultra-sharp clarity and uniform illumination. Built with Vieworks’ advanced sensor and cooling technologies, this area scan camera achieves superior noise reduction and temperature stability through its thermoelectric Peltier (TEC) system, maintaining 10±2°C below ambient for consistent, low-noise captures.
Its global shutter CMOS sensor ensures distortion-free images even at high speeds, supported by a CoaXPress 2.0 interface with lightning-fast 50 Gbps transfer across four channels. Engineered with industrial-grade reliability and precision correction tools—such as PRNU/DSNU tuning, flat-field and hot pixel correction—this camera is made for critical visual inspection systems. The VNP1152MX2M 15 combines performance and precision for demanding sectors like FPD, PCB, and semiconductor inspection.
Features:
- 1152-megapixel pixel-shifting capture capability
- Thermoelectric Peltier (TEC) cooling, 10±2°C below ambient
- CoaXPress 2.0 interface enabling 50 Gbps data transfer
- Global shutter CMOS for high-speed, distortion-free performance
- Pixel-by-pixel DSNU, PRNU, and flat-field correction
- Manual or sequence-mode pixel-shift control (1 nm steps)
- 3.75 fps (1152MP) / 15 fps (lower resolutions) versatility
Applications:
- Flat Panel Display (FPD) Inspection
- Printed Circuit Board (PCB) Inspection
- Semiconductor Inspection
- High-Precision Document and Film Scanning
- Electronics Component Evaluation
| Model | VNP-1152MX2–M15K |
| Resolution (H×V) | 24000 x 12000 (1 Shot) / 48000 x 24000 (4 Shot) |
| Sensor | Vieworks 288M Sensor |
| Sensor Size (Diagonal) | 84.0 mm x 42.0 mm |
| Pixel Size | 3.5 μm x 3.5 μm |
| Interface | CoaXPress 2.0 (CXP-6/10/12) |
| Max. Frame Rate | 15 fps at 8bit |
| Exposure Time (1 μs step) | 1 μs – 60 s |
| Pixel Data Format | Mono 8/10/12 bit |
| Electronic Shutter | Global Shutter |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger, UserOutput0, CXP, Timer |
| Dynamic Range | 60 dB at 12 bit |
| Gain Control | Analog: 1× – 4×, Digital: 1× – 32× |
| Black Level Control | 0 – 255 LSB at 12 bit |
| Shift Range | 0 – 14 μm, 1 nm step |
| Shift Control | Manual Mode or Sequence Mode |
| Cooling Method | Thermoelectric Peltier Cooling |
| Cooling Performance | 10±2℃ below ambient temperature – Standard cooling with a fan |
| Dimension / Weight | 125 mm × 125 mm × 157 mm, 3.4 kg (with the mount) |
| Temperature | Operating: 0℃ – 40℃, Storage: –40℃ – 70℃ |
| Lens Mount | M102-mount, Custom mount available upon request |
| Power | External: 11 – 24 VDC, Dissipation: Typ. 40.0 W |
| API SDK | Vieworks Imaging Solution 7.X |
