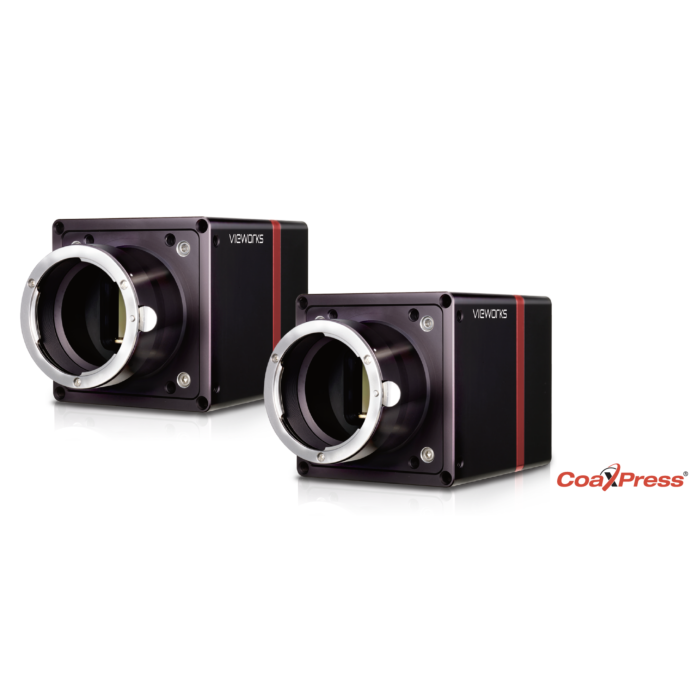

Vieworks VN-25MX-M/C 72 On Semiconductor VITA-25K sensor, 5120 x 5120 resolution, 235 MP at 8 fps, pixel size: 4.5, Global Shutter, CoaXPress Area Scan Camera
The Vieworks VN-25MX-M/C 72 is a high-performance 25 MP CMOS global shutter camera designed for precision imaging applications. It features the On Semiconductor VITA-25K sensor with a 5120 × 5120 resolution and a 4.5 µm pixel size, ensuring superior image clarity and accuracy. Equipped with pixel shifting technology, the camera extends resolution up to an impressive 235 MP at 8 fps, making it ideal for applications requiring ultra-high detail. Its global shutter ensures motion-free capture, critical for high-speed imaging. The CoaXPress interface supports data transmission up to 25 Gbps using four channels, enabling 72 fps at full 25 MP resolution and 18 fps at 100 MP. With partial scan capabilities reaching 7692 fps at 4-line mode, it excels in high-speed inspection tasks.
Optimized for industrial and scientific imaging, the VN-25MX-M/C 72 supports multiple exposure modes (Free-Run, Timed, Trigger Width) with an exposure time range of 10 µs to 60 s. The dynamic range of 54 dB, adjustable gain control (×1 to ×4), and black level control (0–16 LSB at 8-bit, 0–64 LSB at 10-bit) ensure excellent image quality in varying lighting conditions. Its shift control system provides nanometer-level precision (0.001 µm resolution, 7.5 µm shift range) for pixel shifting, enhancing resolution and image fidelity. The camera is housed in a compact 80 × 80 × 150 mm enclosure, weighs 1100 g, and is equipped with an F-mount lens interface for versatile optics compatibility. Designed for FPD, PCB, and semiconductor inspection, as well as 3D imaging and scientific research, this camera delivers unparalleled speed, resolution, and performance for advanced imaging applications.
Features:
- 1/2.8-type ExmorR Starvis Sony CMOS sensor
- 25 Megapixels Resolution
- High Speed Progressive Scan CMOS Image Sensor
- Global Shutter CMOS Technology
- CoaXPress Interface up to 72 fps at 25 Gbps
- using 4 coax cables (4 CH)
- Pixel Shifting Mechanism
- Extended Resolution up to 235 MP at 8 fps (9 Shot Mode)
Applications:
- Industrial inspection
- FPD and PCB Inspection
- Semiconductor Inspection
- High Speed 3D Imaging
- Digitizing and Scanning
- Research and Scientific Imaging
| Model | VN-25MX-M/C 72 |
| Resolution (H × V) | 5120 × 5120 |
| Sensor | On Semiconductor VITA-25K |
| Sensor Size (Optical Format) | 23.04 ㎜ × 23.04 ㎜ (35 mm) |
| Sensor Type | High-Speed CMOS Image Sensor |
| Pixel Size | 4.5 ㎛ × 4.5 ㎛ |
| Interface | CoaXPress |
| Max. Frame Rate | 25 MP: 2 CH: 36 fps at 6.25 Gbps, 4 CH: 72 fps at 6.25 Gbps 100 MP: 2 CH: 9 fps at 6.25 Gbps, 4 CH: 18 fps at 6.25 Gbps 235 MP: 2 CH: 4 fps at 6.25 Gbps, 4 CH: 8 fps at 6.25 Gbps |
| Exposure Time | 10 ㎲ - 60 s (1 ㎲ step) |
| Partial Scan (Max. Speed) | 7692 fps at 4 Lines (H: 256) |
| Pixel Data Format | Mono 8/10, Bayer 8/10 |
| Electronic Shutter | Global Shutter |
| Gain Control | ×1 ~ ×4 |
| Black Level Control | 0 - 16 LSB at 8-bit, 0 - 64 LSB at 10-bit |
| Exposure Mode | Free-Run, Timed, Trigger Width |
| Dynamic Range | 54 dB |
| Shift Range | 0 ~ 7.5 ㎛, 1 ㎚ step |
| Shift Resolution | 0.001 ㎛ |
| Shift Control | Sequence Mode (mono4, mono9, mono2H, mono2V, bayer4, bayer16) |
| Dimensions / Weight | 80 ㎜ × 80 ㎜ × 150 ㎜, 1100 g |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Lens Mount | F-mount |
| Power | Adapter: 11 ~ 30 V DC, Typ. 13 W PoCXP: 24 V DC (Min. two PoCXP cables required) |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
