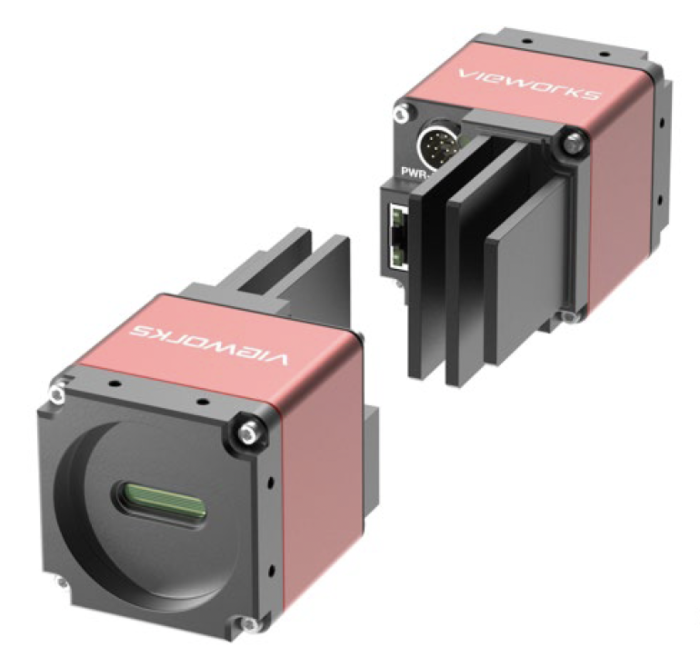

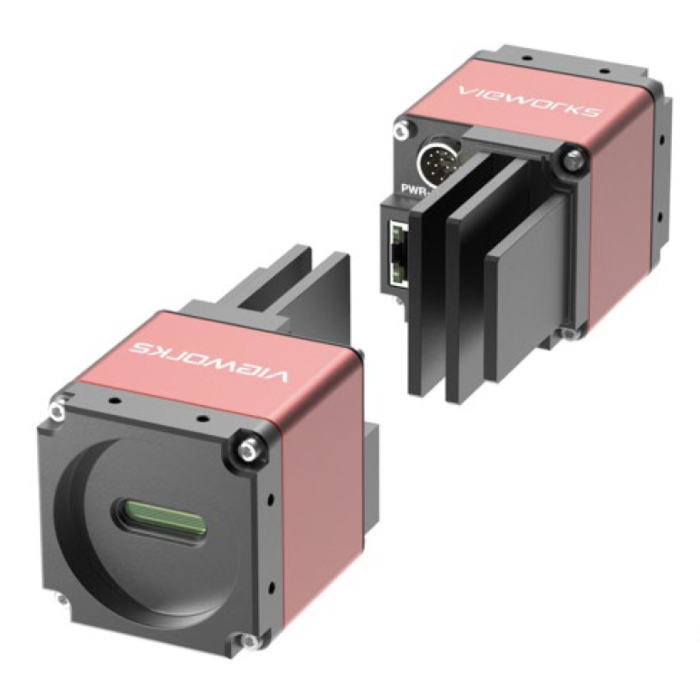

Vieworks VL-4K3.5NG-M83I-2 Line Scan Camera, 8192 × 1 Resolution, 83 kHz, Monochrome GL3504 CMOS Sensor, 5GigE, M42 Mount

The Vieworks VL-4K3.5NG-M83I-2 is an advanced monochrome line scan camera engineered for precision-focused industrial imaging and automated inspection systems. Equipped with dual 4096-pixel linear sensors using the GL3504 CMOS technology, it delivers an 8192-pixel resolution across a 3.5 µm pixel pitch. This fine structure ensures detailed, noise-free image capture for demanding visual inspection and measurement tasks.

Designed for high-throughput manufacturing and real-time optical inspection, its 83 kHz maximum line rate and 5GigE (5 Gbps) data interface enable ultra-fast image transfer with minimal latency. The durable M42 lens mount and GigE Vision compliance ensure flexible integration into existing systems. Built for industrial performance, the VL4K3.5NGM83I2 combines speed, resolution, and reliability for modern automation requirements.

Features:

• Dual 4096-pixel GL3504 CMOS sensors (8192 total pixels).
• 5GigE interface with 5 Gbps data transfer rate.
• 83 kHz maximum line rate for ultra-fast imaging.
• 3.5 µm pixel pitch for exceptional detail capture.
• GigE Vision compliant for seamless system integration.
• Industrial-grade build for stable, continuous operation.
• M42 lens mount for optical flexibility.
• High sensitivity and low noise performance.
• Monochrome output for precision contrast imaging.

Applications:

• Web Inspection
• PCB Analysis
• Wafer Scanning
• Display Inspection
• Robotics Vision
• Pharma QA
• Document Scanning
