High-Performance and Cost-Effective Line Scan Cameras
SKU

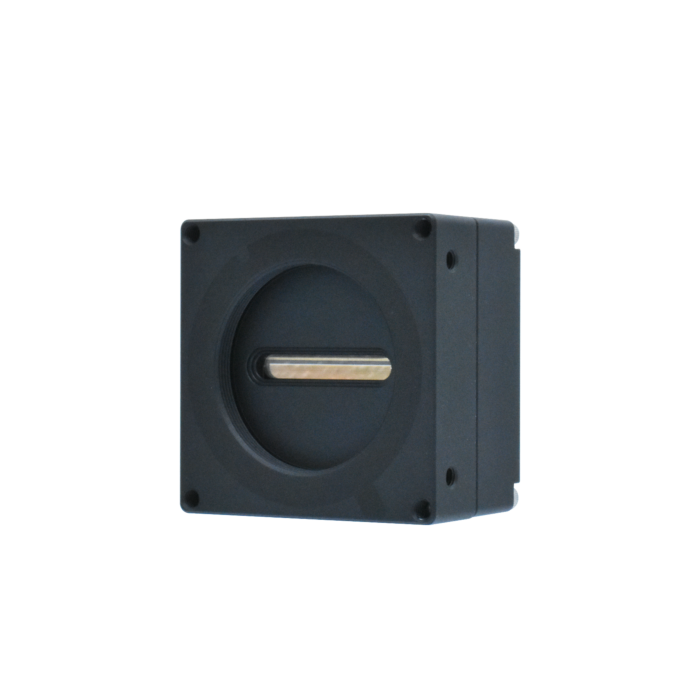

Vieworks VL-2K7C-M200 I-2

The VL-2K7C-M200 I-2, VL-2K7C-C100 I-2, VL-4K7C-M200 I-2 and VL-4K7C-C100 I-2, the latest models of the industrial proven VL series, are new 2k and 4k CMOS line scan cameras available with the Camera Link interface. The VL-2K7C-M200 I-2 camera delivers a maximum line rate of 200 ㎑ at 2k resolution. Even higher resolution, up to 4096 pixel resolution at 200 ㎑ line rate can be achieved using the VL-4K7C-M200 I-2 camera. The VL-2K7C-C100 I-2 and VL-4K7C-C100 I-2, the color line scan cameras, are also available for your color applications and color detection.

Featuring high sensitivity and high speed, these cameras are ideal for wide range of demanding applications such as flat panel display inspection, printed circuit board inspection, and high-performance document scanning.


Features:


  • CMOS Line Scan
  • Camera Link Full Interface
  • Max. 4 k Pixel Resolution
  • Dual Integration Mode
  • Exposure Control
  • PoCL Compliant
  • GenICam Compatible -XML based Control

Applications:

  • Flat Panel Display Inspection
  • Printed Circuit Board Inspection
  • High Performance Document Scanning
  • Printing and Packaging System
Resolution (H × V) 2048 × 2
Sensor Vieworks
Mono / Color Mono
Pixel Size 7.0 ㎛ × 7.0 ㎛
Data Output Mode 2 Tap - 8/10/12 bit
3 Tap - 8/10/12 bit
4 Tap - 8/10/12 bit
8 Tap - 8 bit
10 Tap - 8 bit
Interface Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector
Max. Line Rate 200 ㎑
Exposure time 1.00 ~ 1000.00 ㎲
Pixel Format Mono - Mono8 / Mono10 / Mono12
Color - N/A
Camera Link Pixel Clock Speed 45 / 65 / 85 ㎒
Binning Sensor (HxV) - 2 × 2
Logic (HxV) - 1 × 2, 2 × 2
Trigger Synchronization Free-Run, Hardware Trigger, CC1
External Trigger 3.3 V ~ 5.0 V
Dynamic Range 62 dB
Black Level from -4096 to 4095 LSB at 12 bits
Gain Control Analog Gain - 1.25×, 1.75×, 2.00×, 3.00×, 4.00×
Digital Gain - 1.00× - 32.00×
Lens Mount M42 × 1.0 ㎜ (Sensor to Camera Front: 10.10 ㎜)
Dimension / Weight 60 ㎜ × 60 ㎜ × 37.1 ㎜ / 224 g
Temperature Ambient Operating: 0℃ ~ 40℃ (Housing: 0℃ ~ 60℃), Storage: -40℃ ~ 70℃
Power External - 10 - 30 V DC
Dissipation - Typ. 6.8 W
PoCL - PoCL Compliant - Two PoCL cables required
Compliance CE, FCC, KC
