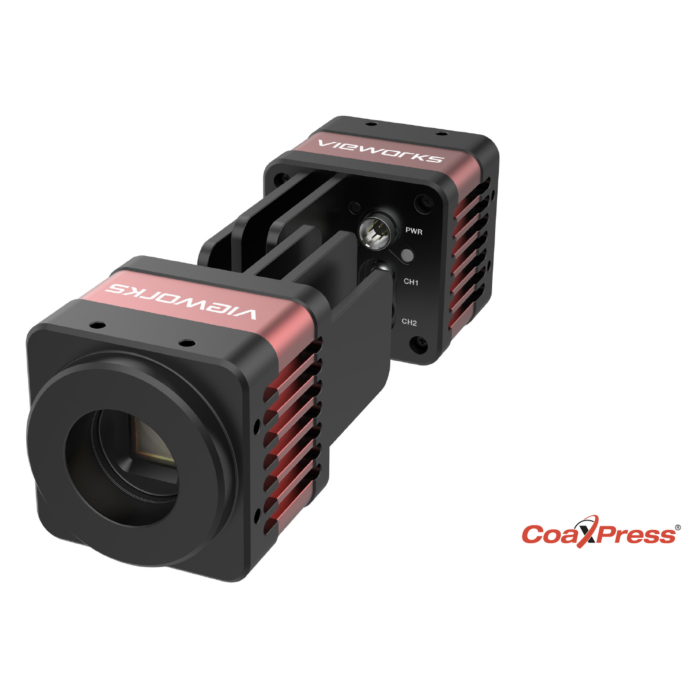

Vieworks VC-9MX2-M/C 262 4192 × 2160 resolution, 262 fps, Gpixel GMAX2509 sensor, pixel size: 2.5 Area Scan Camera
The VC-9MX2-M/C 262 cameras, the latest model of the industrial proven VC series, are new 5/9/18-megapixel CoaXPress cameras and based on the CMOS global shutter image sensor technology (GMAX2505, 2509, 2518) from Gpixel. In the case of the VC9MX2M/C 262 camera, it offers up to 289 frames per second at 2,592 × 2,160 resolution. The camera comes with the next generation CoaXPress 2.0 (CXP-12) interface deliver-ing up to 25 Gigabits per second over two coaxial cables.
These combinations of the CMOS sensor technolo-gy and CoaXPress 2.0 interface set a new standard for industrial, scientific and surveillance digital imaging applications. Customers in the industrial market can take advantage of simple coax cabling to transmit images at rates and distance above and beyond previous standards. The high-speed and high-resolution camera is ideal for wide range of demanding applications such as FPD, PCB and semiconductor inspections.
Features:
- High Speed 9 Megapixel CMOS Image Sensor
- CoaXPress 2.0 Interface up to 289 fps at 25 Gbps using 2 CH (VC-9MX2-M/C289)
- Power over CoaXPress (PoCXP)
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
- Factory Automation, Robotics or AOI
| Resolution (H × V) | 4,192 × 2,160 |
| Sensor | Gpixel GMAX2509 |
| Sensor Size (Diagonal) | 10.5 ㎜ ×5.4 ㎜ (11.8 ㎜) |
| Pixel Size | 2.5 ㎛ × 2.5 ㎛ |
| Interface | CoaXPress 2.0 |
| Max. Frame Rate | 262 fps |
| Exposure Time | 1 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 24844.7 fps at 2 Lines (8 bit) |
| Pixel Data Format | Mono - 8 / 10 Color - RG Bayer 8 / 10 |
| Electronic Shutter | Global Shutter |
| Digital Gain | 1× ~ 32× |
| Black Level Control | 0 - 63 LSB at 10 bit (1 LSB step) |
| Exposure Mode | Free-Run, Timed, Trigger Width |
| External Trigger | 3.3 V ~ 24.0 V, 10mA, Logical Level Input Optically isolated, CoaXPress Control Port |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 62 dB |
| Dimension / Weight | 50.0 ㎜ × 50.0 ㎜ × 91 ㎜, 270 g (C-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | C-Mount |
| Power | Adapter - 11 ~ 24 V DC, Typ. 16 W PoCXP - 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC |
