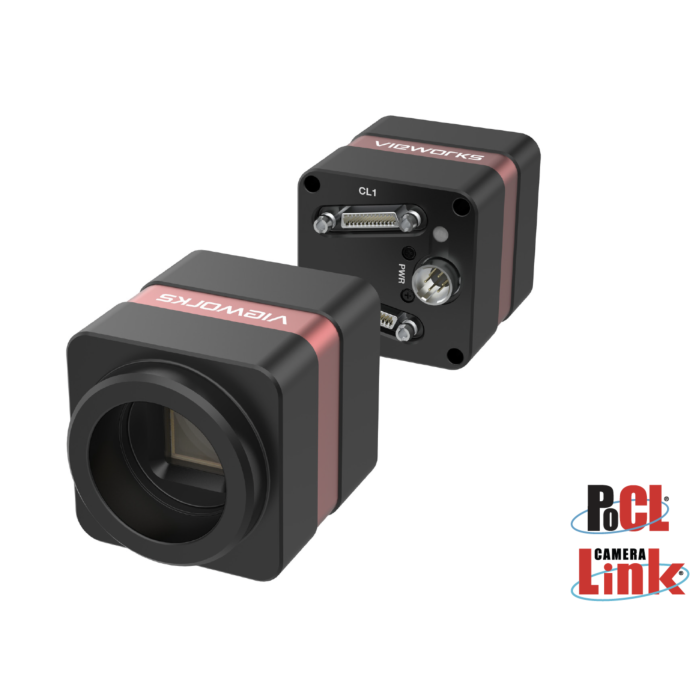

Vieworks VC-9MC-M/C 90 4200 × 2160 resolution, 90.7 fps, 2/3" Optical Format, GMAX2509 sensor, pixel size: 2.5 Area Scan Camera
Unlock Superior Imaging Performance with the Vieworks VC-9MC-M/C 90
The Vieworks VC-9MC-M/C 90 is a high-performance 9-megapixel industrial camera designed to excel in demanding imaging applications. This model leverages the Gpixel GMAX2509 sensor, utilizing global shutter CMOS technology to deliver precise, high-speed imaging without motion blur—ideal for applications where both detail and accuracy are critical. With a maximum resolution of 4200 x 2160 pixels and a remarkable frame rate of 90.7 fps, it is well-suited for industrial and scientific fields such as semiconductor inspection, electronics quality control, and flat-panel display (FPD) assessment.
One of the primary strengths of the VC-9MC-M/C 90 is its advanced image uniformity. Vieworks has developed this camera with features like Dark Signal Non-Uniformity (DSNU) and Photo Response Non-Uniformity (PRNU) corrections to ensure consistently high-quality images across a variety of lighting conditions. Additional highlights include Power over Camera Link (PoCL) for streamlined connectivity and GenICam compliance for seamless integration into complex automated inspection systems.
Aegis Electronic Group Inc. provides these cameras with technical support and guidance on integration, ensuring that your operation benefits from industry-leading performance and reliability.
Features:
- 9-megapixel resolution (4200 x 2160)
- High-speed capture at 90.7 fps
- GMAX2509 CMOS global shutter sensor
- Camera Link interface for efficient data transfer
- Advanced image uniformity with DSNU and PRNU corrections
- Power over Camera Link (PoCL) compatibility
- Compact design with C-mount compatibility
Applications:
- Flat Panel Display (FPD) inspection
- Semiconductor quality assurance
- Printed Circuit Board (PCB) inspection
- Electronics manufacturing and testing
- Document and film scanning
- Factory automation and robotic vision systems
| Model | VC-9MC-M/C 90 |
| Resolution (H × V) | 4,200 × 2,160 |
| Sensor | Gpixel GMAX2509 |
| Sensor Size (Diagonal) | 10.5 mm × 5.4 mm (11.8 mm) |
| Sensor Type | High Speed CMOS Image Sensor |
| Pixel Size | 2.5 µm × 2.5 µm |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Frame Rate | 2 Tap: 18.4 fps 4 Tap: 36.5 fps 8 Tap: 72.0 fps 10 Tap: 90.7 fps |
| Exposure Time (1 µs step) | 1 µs - 60 s |
| Partial Scan (Max. Speed) | 8796.2 fps at 2 Lines (10 Tap) |
| Pixel Data Format | Mono 8 / 10 / 12; Color GB Bayer 8 / 10 / 12 |
| Electronic Shutter | Global Shutter |
| Digital Gain | 1× ~ 32× |
| Black Level Control | 0 - 255 LSB at 12 bit (1 LSB step) |
| Exposure Mode | Free-Run, Timed, Trigger Width |
| External Trigger | 3.3 V ~ 24.0 V, 10mA, Logical Level Input Optically isolated, CC1 |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 65 dB |
| Dimension / Weight | 40.0 mm × 40.0 mm × 51 mm, 130 g (C-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | C-mount |
| Power | 11 ~ 24 V DC, Typ. 6 W, PoCL supported |
| Compliance | CE, FCC, KC |
