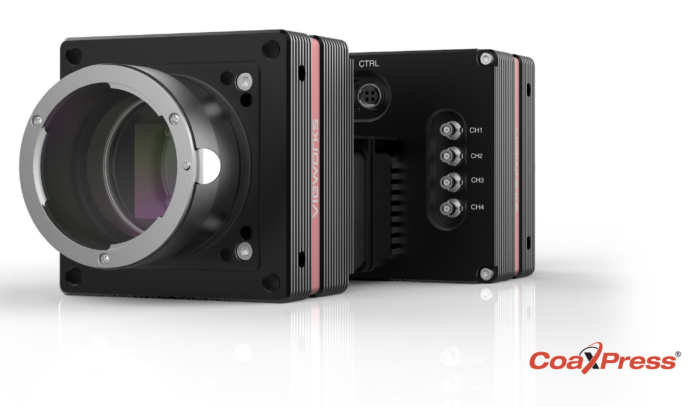

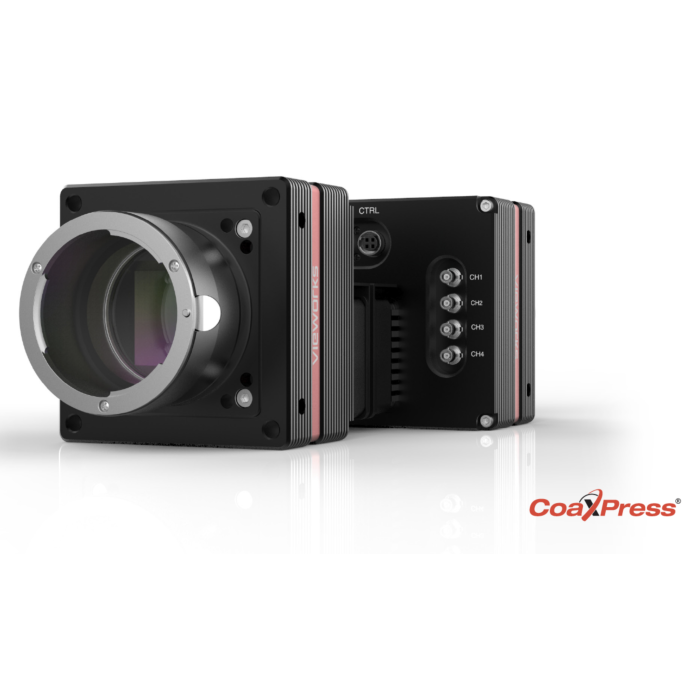

Vieworks VC-65MX2-M/C 71 I 9344 x 7000 resolution, 71.1 fps, GMAX3265 sensor, pixel size: 3.2 Area Scan Camera
The VC-65MX2-M/C 71 I, the latest model of the industrial proven VC series, is a new 65-megapixel CoaXPress camera and based on the CMOS global shutter image sensor technology (GMAX3265) from Gpixel. The VC-65MX2-71 I offers up to 71.1 frames per second at 9,344 × 7,000 resolution. The camera comes with the next generation CoaXPress 2.0 (CXP-12) interface delivering up to 50 Gigabits per second over four coaxial cables.
These combinations of the CMOS sensor technology and CoaXPress 2.0 interface set a new standard for industrial, scientific and surveillance digital imaging applications. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, the VC65MX2M/C 71 I camera offers not only highly uniformed images but also high-speed image processing capabilities. Featured with high-quality image uniformity and high-resolution, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.
Features:
- High Speed 65 Megapixel CMOS Image Sensor
- CoaXPress 2.0 Interface up to 71.1 fps at 50 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
- Hot Pixel Correction
- GenICam Compatible - XML based Control
Applications:
- FPD and Electronics Inspection
- Semiconductor Inspection
- Research and Scientific Imaging
- Document / Film Scanning
| Resolution (H × V) | 9,344 × 7,000 |
| Sensor | Gpixel GMAX3265 - High Speed |
| Sensor Size (Diagonal) | 29.9 ㎜ × 22.4 ㎜ (37.4 ㎜) |
| Pixel Size | 3.2 ㎛ × 3.2 ㎛ |
| Interface | CXP-12 × 4 |
| Max. Frame Rate (8 bit) | CXP-6 × 4 - 37.2 fps CXP-10 × 4 - 59.2 fps CXP-12 × 4 - 71.1 fps |
| Exposure Time | 12 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 4830 fps at 4 Lines |
| Pixel Data Format | Mono - 8 / 10 Color - GB Bayer 8 / 10 |
| Electronic Shutter | Global Shutter |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 - 63.75 LSB at 10 bit |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger or CXP |
| Extrenal Trigger | 3.3 V ~ 24.0 V Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 62 ㏈ |
| Dimension / Weight | 80 ㎜ × 80 ㎜ × 105 ㎜, 750 g (F-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| Power | External - 11 ~ 24 V DC Dissipation - Typ. 22.0 W PoCXP - 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
