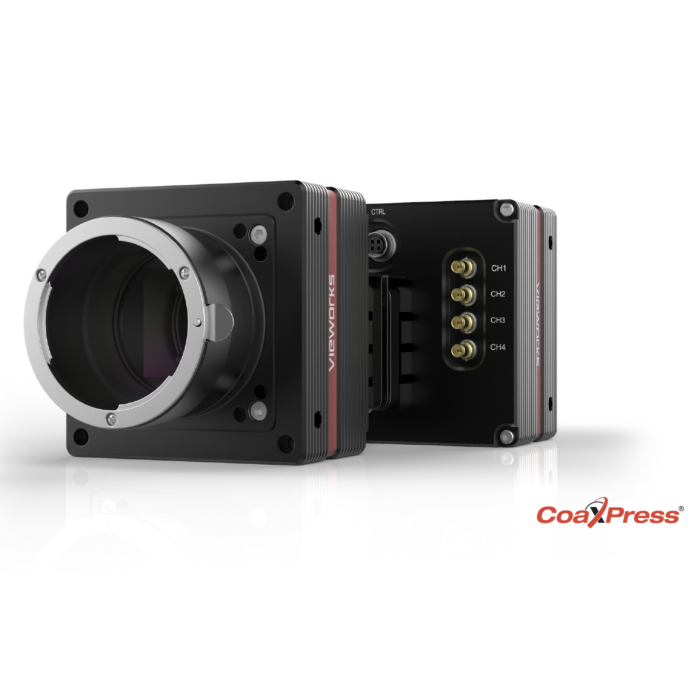

Vieworks VC-65MX-M/C 35 I 9344 x 7000 resolution, 35.5 fps, GMAX3265 sensor, pixel size: 3.2 Area Scan Camera
SKU
VC-65MX-M/C 35 I
Quick Overview
The VC-65MX-M/C 35 I is a high-resolution imaging device with 9344 × 7000 pixels and a frame rate of 35.5 fps. Featuring the GMAX3265 sensor, it captures exceptional quality images in various settings. Compact at 3.2 × 3.2 inches, it's perfect for industrial, scientific, and surveillance applications.
Ultra High Resolution and High Speed
VC series is a series of CMOS cameras for machine vision applications that offer high resolution up to 151 megapixels and high speed up to 337.6 fps.
Better Usability
Programmable camera makes it easier to update the firmware in machine vision fields. VC Series supports Camera Link and CoaXPress interfaces and provides both global shutter and rolling shutter.
Features:
- 65 Megapixel Resolution
- CoaXPress Interface up to 35.5 fps at 25 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
- Hot Pixel Correction
- GenICam Compatible - XML based Control
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
| Resolution (H × V) | 9344 × 7000 |
| Sensor | Gpixel GMAX3265 - High Speed |
| Sensor Size (Diagonal) | 29.9 ㎜ × 22.4 ㎜ (37.4 ㎜) |
| Pixel Size | 3.2 ㎛ × 3.2 ㎛ |
| Interface | CoaXPress |
| Max. Frame Rate | 4 CH: 35.5 fps @ 8 bit 4 CH: 27.5 fps @ 10 bit 4 CH: N/A @ 12 bit 4 CH: 71.1 fps @ 8 bit (2 X 2 Binning) |
| Exposure Time | 12 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 7142.8 fps at 4 Lines |
| Binning | 2 X 2 Binning |
| Pixel Data Format Mono | Mono 8 / Mono 10 |
| Pixel Data Format Color | GB Bayer 8 / GB Bayer 10 |
| Electronic Shutter | Global Shutter |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger or CXP |
| External Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 62 dB @ 10 bit |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 ~ 63 LSB at 10 bit |
| Dimension / Weight | 80.0 ㎜ × 80.0 ㎜ × 103 ㎜, 750 g (with F-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| External | 11 ~ 24 V DC |
| Dissipation | Typ. 17.5 W |
| PoCXP | 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC (in preparation) |
| API SDK | Vieworks Imaging Solution 7.X |
