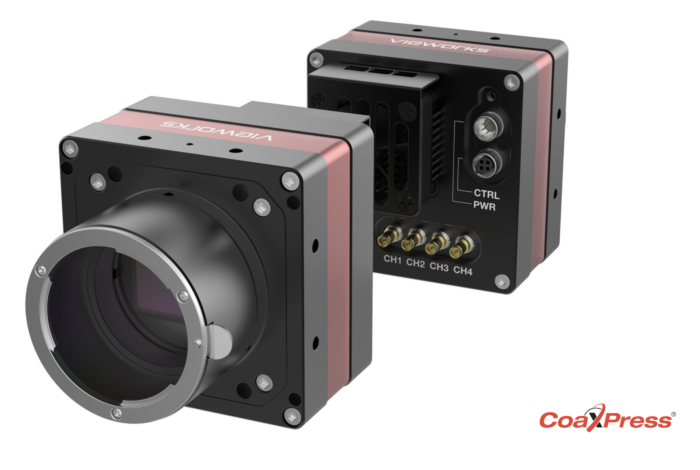

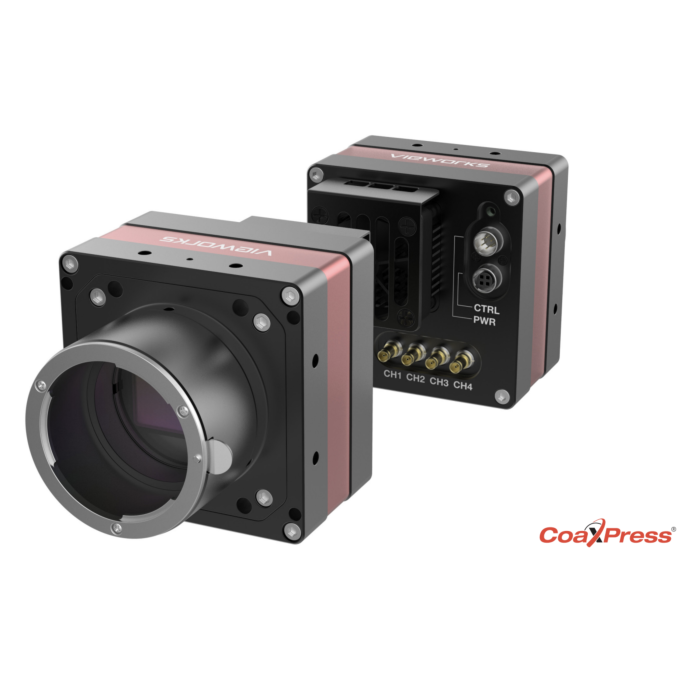

Vieworks VC-61MX-M/C 18 H 61MP, IMX455 SONY sensor, 9568 x 6380, 17.9 FPS, F-Mount Area Scan Camera
SKU
VC-61MX-M/C 18 H
Quick Overview
The VC-61MX-M/C 18 H is a high-performance imaging system featuring a resolution of 9568 × 6380 pixels, a frame rate of 17.93 fps, and an IMX455 sensor for exceptional image quality.
Ultra High Resolution and High Speed
The VC-61MX-M/C 18 H is part of a series of CMOS cameras for machine vision applications that offer high resolution up to 151 megapixels and high speed up to 337.6 fps.
Better Usability
Programmable camera makes it easier to update the firmware in machine vision fields. The VC61MXM/C 18 H supports Camera Link and CoaXPress interfaces and provides both global shutter and rolling shutter.
Features:
- 61 Megapixel Resolution
- CoaXPress Interface up to 17.9 fps at 25 Gbps using 4 CH
- Electronic Rolling Shutter
- DSNU and PRNU Correction
- Flat Field Correction with Sequencer Control
- Hot Pixel Correction
- GenICam Compatible - XML based Control
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
| Resolution (H × V) | 9568 × 6380 |
| Sensor | SONY IMX455 |
| Max. Image Circle | Diagonal 43.3 ㎜ (Type 2.7) |
| Pixel Size | 3.76 ㎛ × 3.76 ㎛ |
| Interface | CoaXPress (CXP-3 / CXP-6) |
| Max. Frame Rate 8 bit | 17.93 fps |
| Max. Frame Rate 10 bit | 9.99 fps |
| Max. Frame Rate 12 bit | 3.98 fps |
| Exposure Time | 17.33 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 2057.6 fps at 4 Lines |
| Sensor | ×1, ×2, ×3 (Horizontal and Vertical Dependent, 8/10/12 bit only) |
| Logic | ×1, ×2, ×4 (Horizontal and Vertical Independent) |
| Pixel Data Format Mono | Mono 8 / Mono 10 / Mono 12 / Mono 14 / Mono 16 |
| Pixel Data Format Color | RG Bayer 8 / RG Bayer 10 / RG Bayer 12 / RG Bayer 14 / RG Bayer 16 |
| Electronic Shutter | Rolling Shutter |
| Trigger Synchronization | Overlapped - Free-Run Non-Overlapped - Hardware Trigger, Software Trigger, CXP or User Output0 |
| External Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 78 dB |
| Gain Control Analog and Digital | 1× ~ 32× |
| Black Level Control | 0 ~ 1023 LSB at 16 bit |
| Dimension / Weight | 80.0 ㎜ × 80.0 ㎜ × 107.0 ㎜, 744 g (with F-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| External | 11 ~ 24 V DC |
| Dissipation | Typ. 16.0 W |
| PoCXP | 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC (in preparation) |
| API SDK | Vieworks Imaging Solution 7.X |
