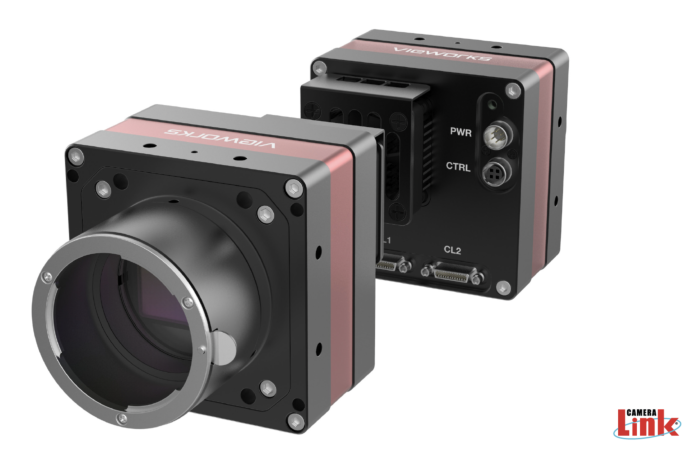

Vieworks VC-61MC-M/C 13 H 9568 × 6380 resolution, 13.68 fps, Sony IMX455 sensor, pixel size: 3.76 Area Scan Camera
High-Performance Imaging with the Vieworks VC-61MC-M/C
The Vieworks VC-61MC-M/C 13 H is an advanced industrial camera designed to meet the demands of various machine vision applications. Featuring an impressive 61-megapixel resolution and a high-speed Sony IMX455 sensor, this camera is capable of capturing stunning images at 13.68 frames per second. The innovative design incorporates a Camera Link interface, allowing for seamless integration into existing systems. With high image uniformity, electronic rolling shutter technology, and multiple correction features such as DSNU, PRNU, and hot pixel correction, the VC-61MC-M/C excels in producing high-quality, precise images, making it ideal for sectors such as flat panel display (FPD) inspection, semiconductor manufacturing, and PCB analysis.
This camera’s ability to deliver high-resolution images in real-time positions it as a valuable tool for industries where detail and accuracy are paramount. Whether you’re conducting quality control or intricate inspections, the Vieworks VC61MCM/C 13 H provides the performance and reliability you need. For industrial and commercial applications looking to enhance their image processing capabilities, this camera is the right choice.
Features:
- 61 Megapixel Resolution
- Camera Link Full Interface
- Electronic Rolling Shutter
- DSNU and PRNU Correction
- Flat Field Correction with Sequencer Control
- Hot Pixel Correction
- GenICam Compatible - XML-based Control
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document and Film Scanning
| Model | VC-61MC-M/C 13 H |
| Resolution (H × V) | 9568 × 6380 |
| Sensor | SONY IMX455 |
| Max. Image Circle | Diagonal 43.3 ㎜ (Type 2.7) |
| Pixel Size | 3.76 µm × 3.76 µm |
| Interface | Camera Link Base / Medium / Full / 10-tap, 26-pin SDR Connector |
| Max. Frame Rate | 2 Tap: 2.75 fps 4 Tap: 5.50 fps 8 Tap: 10.97 fps 10 Tap: 13.68 fps |
| Exposure Time (2-Line step) | 22.72 ㎲ - 60 s (@ 10 Tap) |
| Partial Scan (Max. Speed) | 1569.85 fps at 4 Lines |
| Binning | Sensor: ×1, ×2, ×3 (Horizontal and Vertical Dependent) Logic: ×1, ×2, ×4 (Horizontal and Vertical Independent) |
| Pixel Data Format | Mono: Mono 8/10/12 Color: RG Bayer 8/10/12 |
| Data Output Pixel Clock Speed | 85 ㎒ |
| Electronic Shutter | Global Shutter |
| Trigger Synchronization | Free-Run, Timed and Trigger Width |
| Dynamic Range | 64 ㏈ |
| Gain Control | 1× ~ 30× (1/1024 step) |
| Black Level Control | 0 - 256 LSB at 12 bit (1 LSB step) |
| Dimension / Weight | 68 ㎜ × 68 ㎜ × 102 ㎜, 432 g |
| Temperature | Operating: -5℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Vibration/Shock | 3G (20 ~ 200 ㎐) XYZ / 10G 6 ㎳ |
| Lens Mount | F-mount, Custom mount available upon request |
| Power | 10 ~ 24 V DC, Typ. 9.0 W |
| Compliance | CE, FCC, KC |
| Configuration Software | Configurator |
