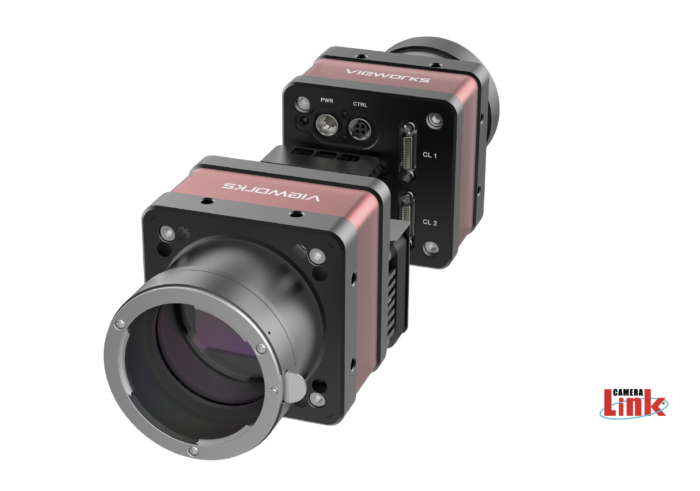

Vieworks VC-31MC-M/C 26 H 6464 × 4852 resolution, 26.2 fps, APS-C (27.9 mm) optical format, SONY IMX342 sensor, pixel size: 3.45 Area Scan Camera
Vieworks VC-31MC-26 H: High-Resolution Imaging Solution for Demanding Industrial Applications
The Vieworks VC-31MC-26 H camera, a cutting-edge solution in industrial machine vision, combines high resolution, speed, and precision, making it an ideal choice for demanding inspection applications. Equipped with the Sony IMX342 sensor, this area scan camera offers an impressive 31 megapixel resolution (6464 × 4852) at 26.2 frames per second, enabling it to capture detailed images with exceptional clarity. The APS-C optical format (27.9 mm) and a pixel size of 3.45 µm enhance its sensitivity, making it perfect for applications that require precision and accuracy.
The camera’s Camera Link interface and global shutter CMOS technology ensure fast data transfer and minimize motion artifacts, crucial for high-speed industrial processes. Vieworks’ advanced technologies, such as flat field correction, PRNU correction, and hot pixel correction, contribute to unparalleled image uniformity and quality, even under continuous operation. This camera is well-suited for flat panel display (FPD) inspection, PCB and semiconductor inspection, and document scanning.
For industries focused on quality and reliability, the VC31MC26 H is an optimal choice, backed by the quality reputation of Vieworks. Its advanced imaging capabilities make it a valuable asset to industries requiring precision inspections. Explore the VC-31MC-26 H for your industrial needs.
Features:
- 31 MP resolution (6464 × 4852) with Sony IMX342 sensor
- 26.2 frames per second for high-speed imaging
- APS-C (27.9 mm) optical format, 3.45 µm pixel size
- Global shutter CMOS and Camera Link interface
- Advanced correction features: flat field, PRNU, and hot pixel correction
- Compatible with GenICam XML control for easy integration
Applications:
- Flat Panel Display (FPD) Inspection: High-resolution scanning for quality control.
- PCB and Electronics Inspection: Detects defects in electronic components.
- Semiconductor Inspection: Ideal for detailed imaging of semiconductor materials.
- Document and Film Scanning: Captures high-detail images for archival purposes.
| Model | VC-31MC-M/C 26 H |
| Resolution (H × V) | 6464 × 4852 |
| Sensor | SONY IMX342 |
| Sensor Size (Diagonal) | APS-C (27.9 ㎜) |
| Pixel Size | 3.45 µm × 3.45 µm |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Frame Rate | 2 Tap: 5.3 fps 4 Tap: 10.6 fps 8 Tap: 21.1 fps 10 Tap: 26.2 fps |
| Exposure Time | 2.4 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 1442.3 fps at 4 Lines |
| Binning - Sensor | ×1, ×2 (Horizontal and Vertical Dependent) |
| Pixel Data Format | Mono: Mono 8 / Mono 10 / Mono 12 Color: RG Bayer 8 / RG Bayer 10 / RG Bayer 12 |
| Data Output Pixel Clock Speed | 85 ㎒ |
| Electronic Shutter | Global Shutter |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger or CC1 |
| External Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 72 ㏈ |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 - 255 LSB at 12 bit |
| Dimension / Weight | 68 ㎜ × 68 ㎜ × 105 ㎜, 537 g (with F-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| Power | 11 ~ 24 V DC, Typ. 17.0 W |
| Compliance | CE, FCC, KC (in preparation) |
| API SDK | Vieworks Imaging Solution 7.X |
