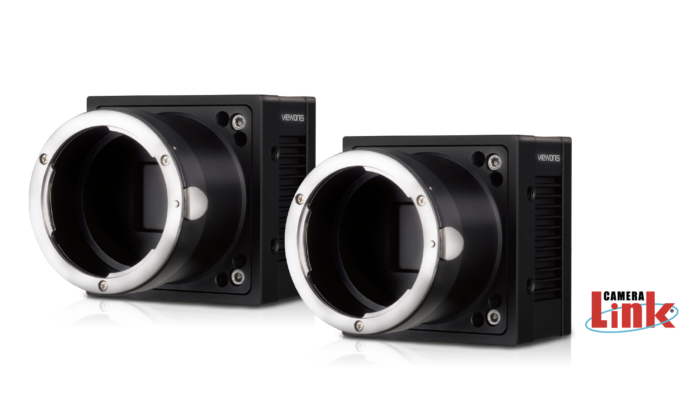

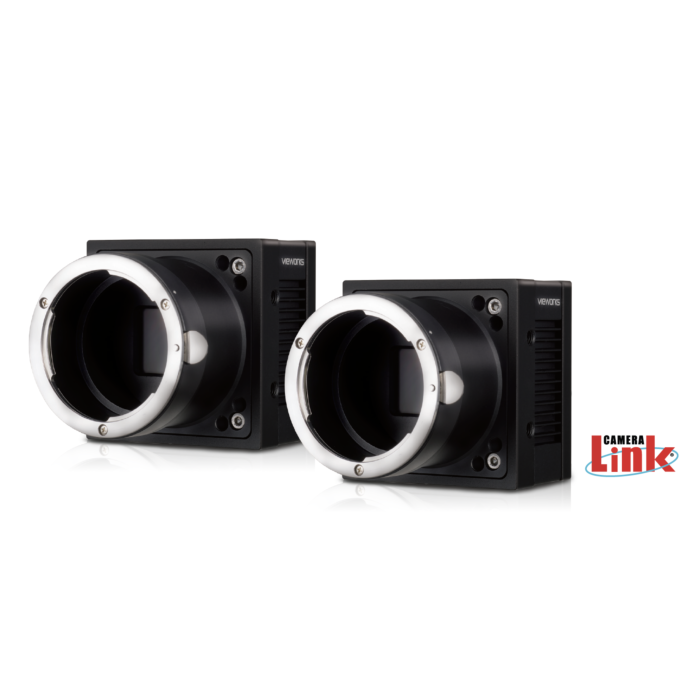

Vieworks VC-2MC-M/C 150 Area Scan Camera 2048 × 1088 Resolution 148.5 fps 2/3" Optical Format AMS CMOSIS CMV2000 Sensor 5.5 µm Pixel Size
The Vieworks VC-2MC-M/C 150 is a high-performance industrial machine vision camera engineered for precision imaging applications requiring speed, clarity, and reliability. Featuring the advanced AMS CMOSIS CMV2000 sensor, it delivers a crisp resolution of 2048 × 1088 pixels with frame rates up to 148.5 fps. Its 5.5 µm pixel size and global shutter technology ensure distortion-free, high-frame-rate images even in dynamic industrial environments—perfect for capturing fast-moving subjects with exceptional accuracy.
Built for seamless integration, the VC2MCM/C 150 supports Camera Link interfaces with both 8-bit and 10-bit output, making it a versatile solution for automation, inspection, and scientific systems. Vieworks’ proprietary noise reduction, pixel defect correction, and field-upgradable firmware further enhance image integrity and ensure long-term performance stability. Whether for metrology, microscopy, or production quality control, this global shutter camera empowers imaging professionals to achieve superior results consistently.
Features:
- Resolution: 2048 × 1088 pixels
- Frame Rate: Up to 148.5 fps
- Sensor: AMS CMOSIS CMV2000
- Pixel Size: 5.5 µm × 5.5 µm
- Shutter Type: Global shutter
- Interface: Camera Link (8/10-bit output)
- Low-noise, high-dynamic-range imaging (60 dB)
- Field-upgradable firmware and defect correction
- Compact and durable design (68 × 68 × 54 mm, 373 g)
- C or F-mount lens compatibility
Applications:
- Machine Vision
- Scientific Imaging
- Microscopy
- Metrology
- Industrial Inspection
| Model | VC-2MC-M/C 150 |
| Resolution (H × V) | 2048 × 1088 |
| Sensor | CMOSIS CMV 2000 |
| Sensor Size (Optical Format) | 11.26 mm × 5.98 mm (2/3”) |
| Sensor Type | High Speed CMOS Image Sensor |
| Pixel Size | 5.5 μm × 5.5 μm |
| Interface | Camera Link |
| Max. Frame Rate | 2 Tap: 74.4 fps 4 Tap: 148.5 fps 8 Tap: N/A 10 Tap: N/A |
| Transfer Time | 8 Tap: 3.38 ms 10 Tap: 2.96 ms |
| Pixel Data Format | 8 bit (2/4 Tap) 10 bit (2/4 Tap) 8 bit (2/4/8/10 Tap) 10 bit (2/4/8 Tap) |
| Electronic Shutter | Global Shutter |
| Data Output Pixel Clock Speed | 85 MHz |
| Trigger Mode | Free-Run, Trigger Programmable Exposure Time and Trigger Polarity |
| Dynamic Range | 60 dB |
| Dimension / Weight | 68 mm × 68 mm × 54 mm, 373 g (with C-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | C or F-mount |
| Power | 10 ~ 14 V DC Typ. 4 W |
| Compliance | CE, FCC, KC (Application of VC-3MC in preparation) |
| Configuration Software | Configurator |
