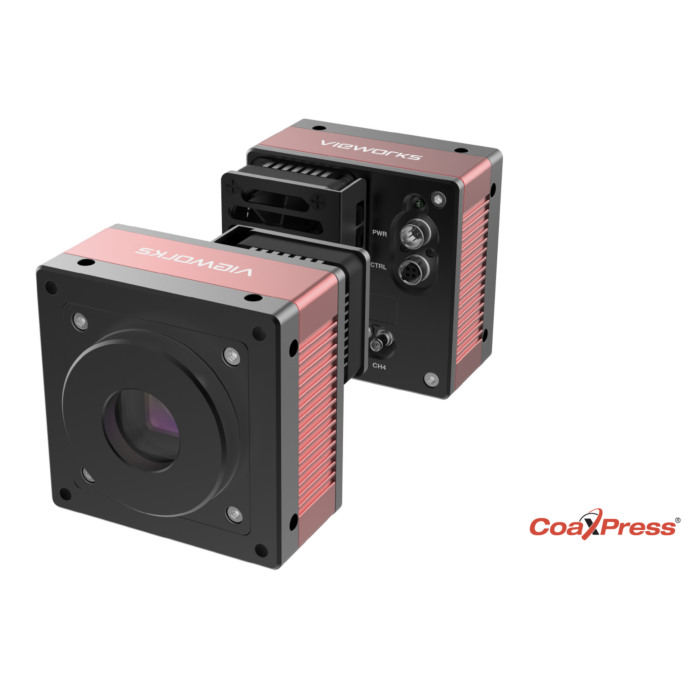

Vieworks VC-25MX2-M/C 150 I 5120 × 5120 resolution, 150.2 fps, GMAX0505 sensor, pixel size: 2.5 Area Scan Camera
The VC-25MX2-M/C 150 I, the latest model of the industrial proven VC series, is a new 25-megapixel CoaXPress camera and based on the CMOS global shutter image sensor technology (GMAX0505) from Gpixel. The VC25MX2M/C 150 I camera offers up to 150.2 frames per second at 5,120 × 5,120 resolution. The camera comes with the next generation CoaXPress 2.0 (CXP-12) interface delivering up to 50 Gigabits per second over four coaxial cables.
These combinations of the CMOS sensor technology and CoaXPress 2.0 interface set a new standard for industrial, scientific and surveillance digital imaging applications. Customers in the industrial market can take advantage of simple coax cabling to transmit images at rates and distance above and beyond previous standards. This high-speed and high-resolution camera is ideal for wide range of demanding applications such as FPD, PCB and semiconductor inspections.
Features:
- High Speed 25 Megapixel CMOS Image Sensor
- CoaXPress 2.0 Interface up to 150.2 fps at 50 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
- GenICam Compatible - XML based Control
Applications:
- FPD and Electronics Inspection
- Semiconductor Inspection
- Research and Scientific Imaging
- Document / Film Scanning
| Resolution (H × V) | 5120 × 5120 |
| Sensor | Gpixel GMAX0505 |
| Sensor Size (Diagonal) | 12.8 ㎜ × 12.8 ㎜ (18.1 ㎜) |
| Pixel Size | 2.5 ㎛ × 2.5 ㎛ |
| Interface | CXP-12 × 4 |
| Max. Frame Rate (8 bit) | CXP-6 × 4 - 93.1 fps CXP-10 × 4 - 145.6 fps CXP-12 × 4 - 150.2 fps |
| Exposure Time | 1 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 9022 fps at 4 Lines |
| Pixel Data Format | Mono - 8 / 10 Color - GB Bayer 8 / 10 |
| Electronic Shutter | Global Shutter |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 - 63 LSB at 10 bit |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger or CXP |
| Extrenal Trigger | 3.3 V ~ 24.0 V Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 61 ㏈ |
| Dimension / Weight | 80 ㎜ × 80 ㎜ × 69.4 ㎜, 560 g (C-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | C-mount, Custom mount available upon request |
| Power | External - 11 ~ 24 V DC Dissipation - Typ. 14 W PoCXP - 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
