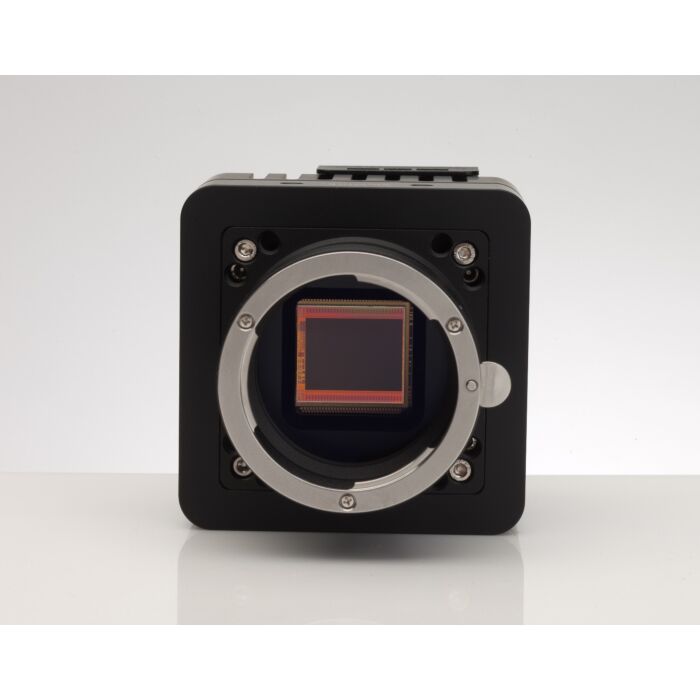

Vieworks VC-25MX-M/C 91 I 5120 x 5120 resolution, 91.3 fps, 1.1" optical format, GMAX0505 sensor, pixel size: 2.5 Area Scan Camera
SKU
VC-25MX-M/C 91 I
Quick Overview
The VC-21MX2-M/C 230 I is an ultra-high-resolution industrial camera featuring 5120x4096 resolution, 229 fps frame rate, and a 29.5mm GSPRINT 4521 sensor, ideal for precision imaging in fast-paced environments.
Ultra High Resolution and High Speed
VC series is a series of CMOS cameras for machine vision applications that offer high resolution up to 151 megapixels and high speed up to 337.6 fps.
Better Usability
Programmable camera makes it easier to update the firmware in machine vision fields. VC Series supports Camera Link and CoaXPress interfaces and provides both global shutter and rolling shutter.
Features:
- 25 Megapixel Resolution
- CoaXPress Interface up to 91.3 fps at 25 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Dynamic Defective Pixel Correction
- GenICam Compatible - XML based Control
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
| Resolution (H × V) | 5120 × 5120 |
| Sensor | Gpixel GMAX0505 (Monochrome/Color) Gpixel GMAX0505RF (NIR enhanced) |
| Sensor Size (Diagonal) | 12.8 ㎜ × 12.8 ㎜ (18.1 ㎜) |
| Pixel Size | 2.5 ㎛ × 2.5 ㎛ |
| Interface | CoaXPress |
| Max. Frame Rate 1 CH | 23.2 fps |
| Max. Frame Rate 2 CH | 46.5 fps |
| Max. Frame Rate 4 CH | 91.3 fps |
| Exposure Time | 1 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 14260 fps at 64x 2 |
| Pixel Data Format Mono | Mono 8 / Mono 10 |
| Pixel Data Format Color | GB Bayer 8 / GB Bayer 10 |
| Electronic Shutter | Global Shutter |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger or CXP |
| External Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 60 dB |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 ~ 63 LSB at 10 bit |
| Dimension / Weight | 50 ㎜ × 50 ㎜ × 57 ㎜, 210 g (with C-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | C-mount, Custom mount available upon request |
| External | 11 ~ 24 V DC |
| Dissipation | Typ. 10.0 W |
| PoCXP | 24 V DC, Ch 1 only |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
