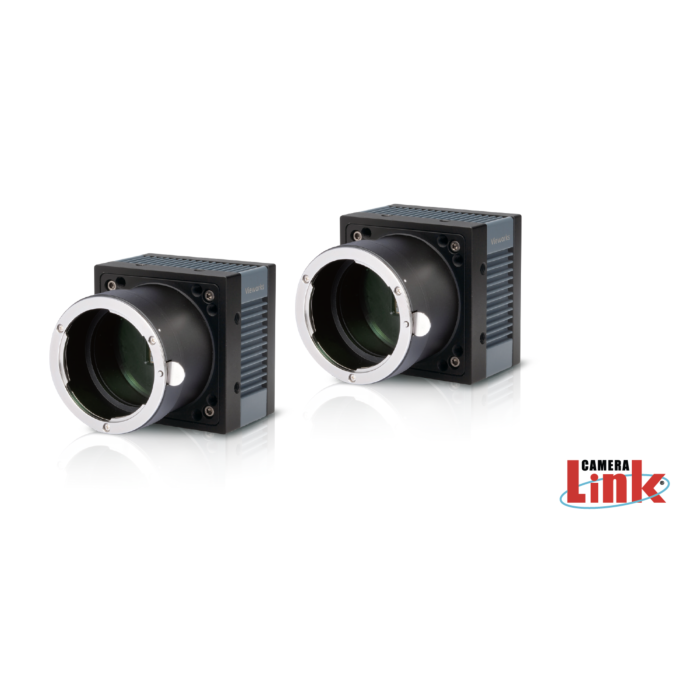

Vieworks VC-25MC-M/C 30 D 25MP Area Scan Camera 5120 × 5120 Resolution 30 fps 35 mm Optical Format PYTHON 25K Sensor 4.5 µm Pixel
The Vieworks VC-25MC-M/C 30 D is a high-performance 25-megapixel area scan camera designed for demanding industrial inspection and scientific imaging applications. Built with the On Semiconductor PYTHON-25K sensor, it delivers 5120 × 5120 resolution with superior detail and accuracy at up to 30 frames per second. Its Camera Link interface ensures high-speed data transfer and real-time precision, making it ideal for machine vision systems requiring exceptional clarity and stability.
Engineered with a global shutter CMOS sensor, optimized noise reduction, and efficient thermal management, the VC25MCM/C 30 D guarantees sharp, stable images even under fast-motion or long-duration operation. The camera supports both 8-bit and 10-bit output, field-upgradable firmware, and pixel defect correction, providing unmatched adaptability for complex inspection environments. Whether used in semiconductor quality control, PCB inspection, or 3D surface analysis, it empowers users to achieve consistent, high-accuracy results with long-term reliability.
Features:
- 25MP high-resolution PYTHON‑25K CMOS image sensor
- Global electronic shutter for distortion-free imaging
- Full Camera Link interface with 8-/10-bit output options
- Optimized heat treatment and noise reduction design
- Field-upgradable firmware and pixel defect correction
- Compact 68 × 68 × 80 mm build with F-mount lens support
- Dynamic range of 59 dB for detailed imaging performance
- CE, FCC, and KC compliant design for industrial standards
Applications:
- PCB Inspection
- Semiconductor Inspection
- Automated Optical Inspection (AOI)
- 3D Inspection
- Scientific Research and Imaging
| Model | VC-25MC-M/C 30 D |
| Resolution (H × V) | 5120 × 5120 |
| Sensor | On Semiconductor PY-THON-25K |
| Sensor Size (Diagonal) | 23.04 ㎜ × 23.04 ㎜ |
| Sensor Type | High Speed CMOS Image Sensor |
| Pixel Size | 4.5 µm × 4.5 µm |
| Interface | Camera Link |
| Max. Frame Rate | 2 Tap: N/A 4 Tap: N/A 8 Tap: 25.3 fps 10 Tap: 30.1 fps |
| Transfer Time | 2 Tap: N/A 4 Tap: N/A 8 Tap: 39.5 ms 10 Tap: 33.2 ms |
| Pixel Data Format | 8 bit (2/4/8/10 Tap), 10 bit (2/4/8 Tap) |
| Electronic Shutter | Global Shutter |
| Digital Gain | 1× ~ 32× |
| Black Level Control | 0 - 255 LSB at 12 bit (1 LSB step) |
| Exposure Mode | Free-Run, Trigger, Programmable Exposure Time and Trigger Polarity |
| Data Output Pixel Clock Speed | 85 ㎒ |
| Dynamic Range | 59 dB |
| Dimension / Weight | 68 ㎜ × 68 ㎜ × 80 ㎜, 432 g (F-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| Power | 10 ~ 14 VDC, Typ. 7 W |
| Compliance | CE, FCC, KC |
