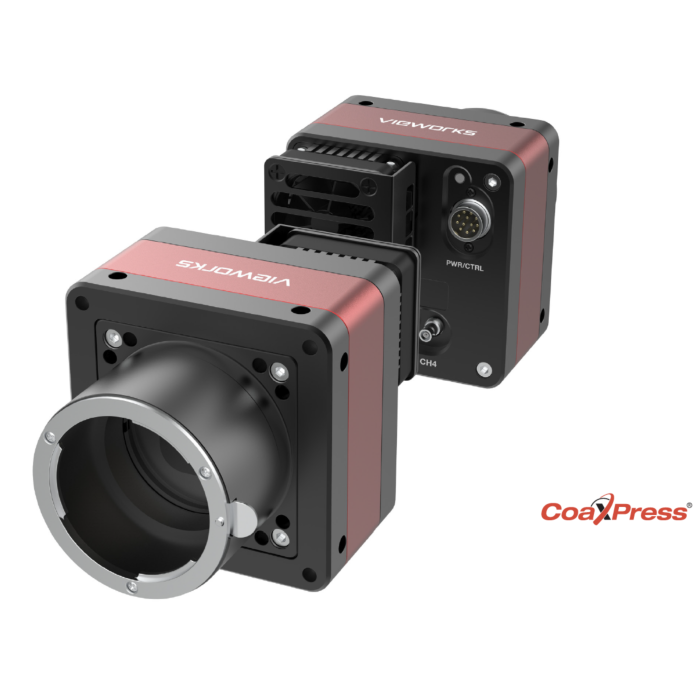

Vieworks VC-21MX2-M/C 230 I 5120 × 4096 resolution, 229 fps, GSPRINT 4521 sensor, pixel size: 4.5 Area Scan Camera
SKU
VC-21MX2-M/C 230 I
Quick Overview
The Vieworks VC-21MX2-M/C 230 I camera delivers 5120x4096 resolution at 229 fps with a 29.5mm GSPRINT 4521 sensor, 4.5 μm pixels—ideal for high-speed, high-detail industrial imaging.
The VC-21MX2-M/C 230 I camera is Vieworks’ first camera with the CoaXPress 2.0 interface that offers 230 frames per second at 5120 × 4096 resolution. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, this camera offers not only fast frame rates but also highly uniformed images.
Its CoaXPress 2.0 interface supports transmitting image data at up to 50 Gbps using four coaxial cables. Featured with high speed and high performance, the VC-21MX2-M/C 230 I camera is an excellent choice for applications that require high data rates and resolutions, such as FPD, PCB and semiconductor inspections.
Features:
- High Speed 21 Megapixel CMOS Image Sensor
- CoaXPress 2.0 Interface up to 230 fps at 50 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
- GenICam Compatible - XML based Control
Applications:
- FPD and Electronics Inspection
- Semiconductor Inspection
- Research and Scientific Imaging
- Document / Film Scanning
| Resolution (H × V) | 5120 × 4096 |
| Sensor | GSPRINT 4521 |
| Sensor Size (Diagonal) | 23.04 ㎜ × 18.43 ㎜ (29.5 ㎜) |
| Pixel Size | 4.5 ㎛ × 4.5 ㎛ |
| Interface | CoaXPress 2.0 (CXP-12) |
| Max. Frame Rate (8 bit) | CXP-12 × 1 - 56 fps CXP-12 × 2 - 114 fps CXP-12 × 4 - 229 fps |
| Exposure Time | 4 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 10011.7 fps at 32 Lines |
| Pixel Data Format | Mono - 8 / 10 / 12 bit Color - GB Bayer 8 / 10 / 12 bit |
| Electronic Shutter | Global Shutter |
| Gain Control | Analog - 1×, 2.0x, 4.2× Digital - 1× ~ 32× |
| Black Level Control | 0 - 255 LSB at 12 bit |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger or CXP |
| Extrenal Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | Typ. 67.8 ㏈ at 12 bit |
| Dimension / Weight | 80 ㎜ × 80 ㎜ × 104.5 ㎜, 750 g (F-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| Power | External - 12 ~ 24 V DC Dissipation - Typ. 24 W PoCXP - 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC |
