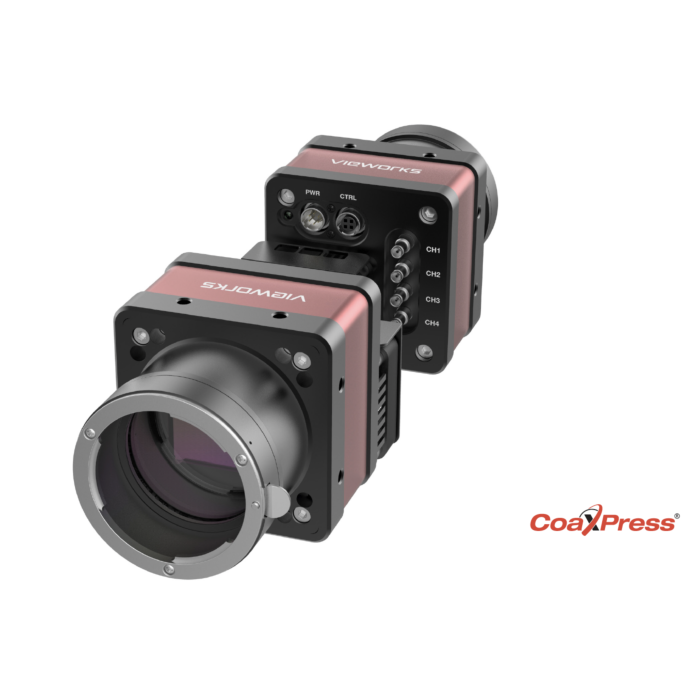

Vieworks VC-17MX-M/C 61 H 5446 x 3076 resolution, 17MP, 61.3 fps, Sony IMX387 sensor, FM Mount, pixel size: 3.45 Area Scan Camera
SKU
VC-17MX-M/C 61 H
Quick Overview
The Vieworks VC-17MX-M/C is a high-performance area scan camera featuring a 17MP IMX387 Sony sensor with a resolution of 5446 x 3076 pixels. It offers both monochrome and color imaging at a fast frame rate of 61 FPS. Designed for versatility, it includes an FM mount for easy installation and a CXP-6 interface for efficient data transfer. Ideal for various industrial and scientific applications, this camera ensures exceptional image quality and reliability.
Ultra High Resolution and High Speed
VC series is a series of CMOS cameras for machine vision applications that offer high resolution up to 151 megapixels and high speed up to 337.6 fps.
Better Usability
Programmable camera makes it easier to update the firmware in machine vision fields. VC Series supports Camera Link and CoaXPress interfaces and provides both global shutter and rolling shutter.
Features:
- 17 / 31 Megapixel Resolution
- CoaXPress Interface up to 61.3 fps at 25 Gbps using 4 CH y Global Shutter CMOS Technology
- Flat Field Correction with Sequencer Control
- PRNU Correction
- Hot Pixel Correction
- Defective Pixel Correction
- Frame Averaging
- GenICam Compatible - XML based Control
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
| Resolution (H × V) | 5440 × 3076 |
| Sensor | SONY IMX387 |
| Optical Format (Diagonal) | 4/3” (21.7 ㎜) |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | CoaXPress (CXP-3 / CXP-6) |
| Max. Frame Rate 8 bit | 61.3 fps |
| Max. Frame Rate 10 bit | 56.5 fps |
| Max. Frame Rate 12 bit | 40.4 fps |
| Exposure Time | 2.4 ㎲ - 60 s |
| Partial Scan (Max. Speed) | 1724.0 fps at 4 Lines |
| Pixel Data Format Mono | Mono 8 / Mono 10 / Mono 12 |
| Pixel Data Format Color | RG Bayer 8 / RG Bayer 10 / RG Bayer 12 |
| Electronic Shutter | Global Shutter |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger or CXP |
| External Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 72 dB |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 ~ 255 LSB at 12 bit |
| Dimension / Weight | 68 ㎜ × 68 ㎜ × 105 ㎜, 550 g (with F-mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | F-mount, Custom mount available upon request |
| External | 11 ~ 24 V DC |
| Dissipation | Typ. 17.0 W |
| PoCXP | 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC (in preparation) |
| API SDK | Vieworks Imaging Solution 7.X |
