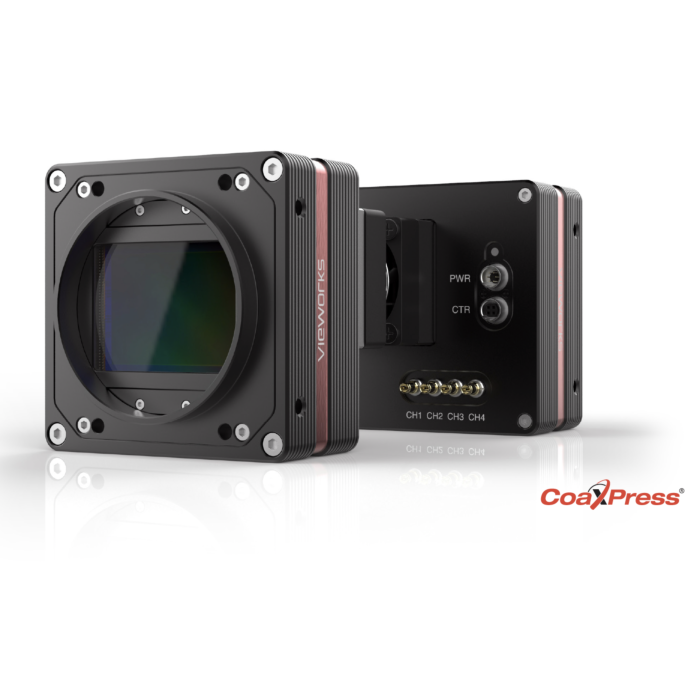

Vieworks VC-151MX-M/C 6 H 14192 × 10640 resolution, 6.2 fps, SONY IMX411 sensor, pixel size: 3.76 Area Scan Camera
SKU
VC-151MX-M/C 6 H
Quick Overview
The Vieworks VC-151MX-M/C is a high-resolution area scan camera with a 14192 × 10640 pixel count, 6.2 fps frame rate, and a SONY IMX411 sensor, offering exceptional image quality and performance. Its 3.76 µm pixel size ensures sensitivity and clarity, making it ideal for various applications, including manufacturing and inspection.
Ultra High Resolution and High Speed
VC series is a series of CMOS cameras for machine vision applications that offer high resolution up to 151 megapixels and high speed up to 337.6 fps.
Better Usability
Programmable camera makes it easier to update the firmware in machine vision fields. VC Series supports Camera Link and CoaXPress interfaces and provides both global shutter and rolling shutter.
Features:
- 151 Megapixel Resolution
- CoaXPress Interface
- Electronic Rolling Shutter
- DSNU and PRNU Correction
- Flat Field Correction with Sequencer Control
- Hot Pixel Correction
- Dynamic Defective Pixel Correction
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
| Resolution (H × V) | 14192 × 10640 |
| Sensor | SONY IMX411 |
| Sensor Size (Diagonal) | 53.36 ㎜ × 40.01 ㎜ (66.7 ㎜) |
| Pixel Size | 3.76 ㎛ × 3.76 ㎛ |
| Interface | CoaXPress (CXP-3 / CXP-6) |
| Max. Frame Rate | 6.2 fps (with Overlapped Acquisition) |
| Exposure Time | 1 ㎲ - 60 s |
| Binning | Sensor - ×1, ×3 (Horizontal and Vertical Dependent) Logic - ×1, ×2, ×4 (Horizontal and Vertical Independent) |
| Pixel Data Format | 8 / 10 / 12 / 14 / 16 bit |
| Electronic Shutter | Rolling Shutter |
| Trigger Synchronization | Overlapped Acquisition - Free-Run Non-overplapped Acquisition - Hardware Trigger, Software Trigger or CXP |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 78 dB |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 ~ 4095 LSB at 16 bit |
| Dimension / Weight | 100 ㎜ × 100 ㎜ × 92.5 ㎜, 1070 g (with M-72 mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | M72-mount, Custom mount available upon request |
| External | 11 ~ 24 V DC |
| Dissipation | Typ. 15.5 W |
| PoCXP | 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
