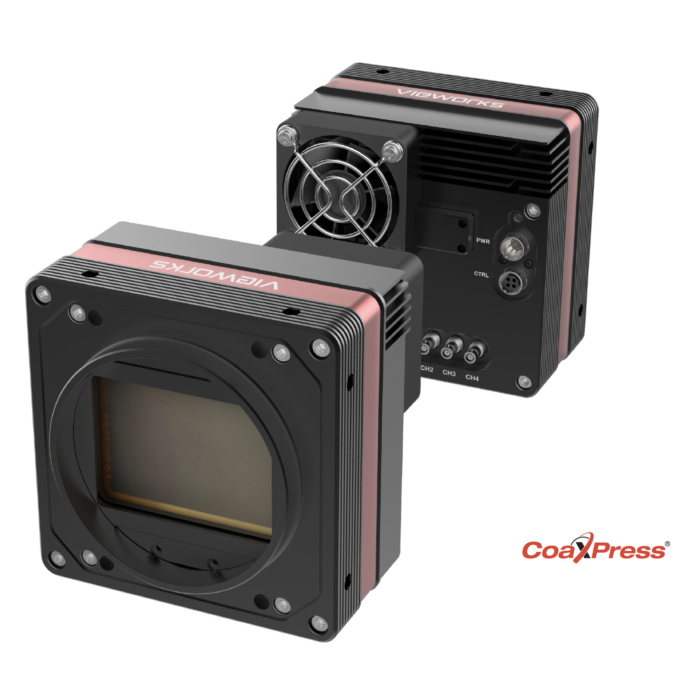

Vieworks VC-127MX2-M/C 21 H 127MP CoaXPress 2.0 Camera with Sony IMX661 Sensor
The Vieworks VC-127MX2-M/C21H is a next-generation 127-megapixel industrial CoaXPress 2.0 camera designed for precision inspection, imaging, and metrology applications. Powered by Sony’s advanced IMX661 CMOS global shutter sensor, this camera delivers exceptional clarity and low-noise performance at up to 21.9 fps with a resolution of 13376 × 9528 pixels. Its CoaXPress 2.0 (CXP-12) interface offers ultra-fast data transmission up to 50 Gbps across four coaxial channels, ensuring reliable high-speed performance for demanding machine vision tasks.
Engineered for accuracy and consistency, the VC-127MX2-M/C21H integrates Vieworks’ image uniformity correction technologies such as DSNU, PRNU, and defective pixel correction. The result is maximum stability, precise image calibration, and consistent data quality—essential for fault detection, FPD panel inspection, and scientific imaging environments under variable lighting conditions.
Features:
- 127-megapixel high-resolution imaging
- CoaXPress 2.0 interface (up to 50 Gbps with 4 channels)
- Power over CoaXPress (PoCXP) support
- Global shutter CMOS for no motion distortion
- DSNU, PRNU, and hot pixel correction
- Flat-field correction with sequencer control
- High-speed frame capture up to 21.9 fps
- Ultra-stable image processing and uniformity
Applications:
- FPD Inspection
- PCB Inspection
- Semiconductor Inspection
- Scientific Research
- Document Scanning
| Resolution (H × V) | 13376 × 9528 |
| Sensor | SONY IMX661 |
| Sensor Size (Diagonal) | 46.15 ㎜ × 32.87 ㎜ (56.73 ㎜) |
| Pixel Size | 3.45 ㎛ × 3.45 ㎛ |
| Interface | CoaXPress 2.0 (CXP-6/10/12) |
| Max. Frame Rate | 1 CH - 8.8 fps 2 CH - 17.9 fps 4 CH - 21.9 fps |
| Exposure Time | 1 ㎲ - 60 s |
| Binning | Sensor (12, 14 bit) - Horizontal and Vertical Dependent: ×1, ×2 Logic - Horizontal and Vertical Independent: ×1, ×2, and ×4(Mono Only) |
| Pixel Data Format | Monochrome - 8/10/12/14 bit Color - RG Bayer 8/10/12/14 bit |
| Electronic Shutter | Global Shutter |
| Exposure Mode | Timed, Trigger Width |
| Dynamic Range | 72.7 dB at 14 bit |
| Gain Control | Analog - 1× ~ 12× Digital - 1× ~ 32× |
| Black Level Control | 0 ~ 1023 LSB at 14 bit |
| Dimension / Weight | 100 ㎜ × 100 ㎜ × 81 ㎜, 1.01 ㎏ (with M-72 mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Trigger Synchronization | Free-Run, Hardware Trigger, Software Trigger, UserOutput0, CXP, Timer |
| External Trigger | 3.3 V ~ 24.0 V, 10 ㎃, Logical Level Input, Optically Isolated |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Lens Mount | M72-mount, Custom mount available upon request |
| Power | External - 11 ~ 24 V DC Dissipation - Typ. 25.5 W PoCXP - 24 V DC, Minimum 2 of PoCXP cables required |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
