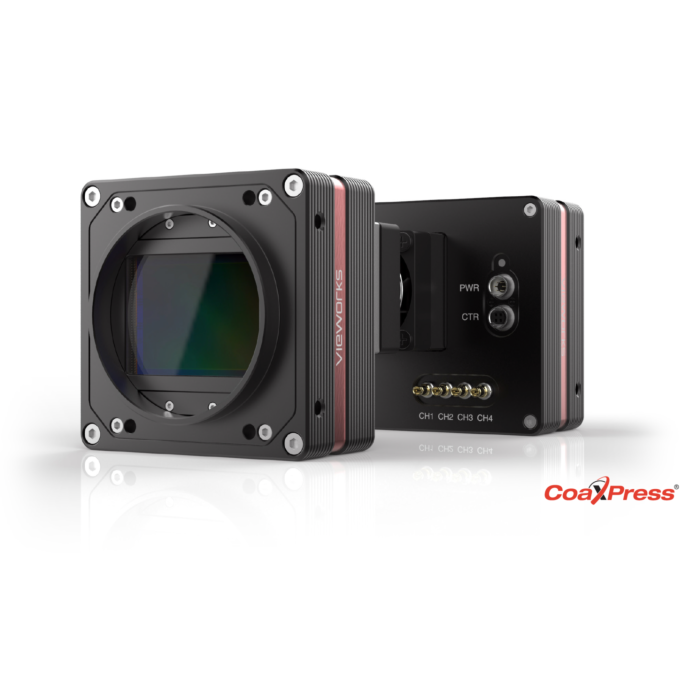

Vieworks VC-101MX-M/C 9 H 11656 × 8742 resolution, 8.7 fps, SONY IMX461 sensor, pixel size: 3.76 Area Scan Camera
SKU
VC-101MX-M/C 9 H
Quick Overview
Ultra High Resolution and High Speed
Ultra High Resolution and High Speed
The VC-101MX-M/C 9 H is part of a series of CMOS cameras for machine vision applications that offer high resolution up to 151 megapixels and high speed up to 337.6 fps.
Better Usability
Programmable camera makes it easier to update the firmware in machine vision fields. The VC101MXM/C 9 H supports Camera Link and CoaXPress interfaces and provides both global shutter and rolling shutter.
Features:
- 101 Megapixel Resolution
- CoaXPress Interface
- Electronic Rolling Shutter
- DSNU and PRNU Correction
- Flat Field Correction with Sequencer Control
- Hot Pixel Correction
- Dynamic Defective Pixel Correction
Applications:
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
| Resolution (H × V) | 11648 × 8742 |
| Sensor | SONY IMX461 |
| Sensor Size (Diagonal) | 43.80 ㎜ × 32.87 ㎜ (55 ㎜) |
| Pixel Size | 3.76 ㎛ × 3.76 ㎛ |
| Interface | CoaXPress (CXP-3 / CXP-6) |
| Max. Frame Rate | 8.7 fps (with Overlapped Acquisition) |
| Exposure Time | 1 ㎲ - 60 s |
| Binning | Sensor - ×1, ×3 (Horizontal and Vertical Dependent) Logic - ×1, ×2, ×4 (Horizontal and Vertical Independent) |
| Pixel Data Format | 8 / 10 / 12 / 14 / 16 bit |
| Electronic Shutter | Rolling Shutter |
| Trigger Synchronization | Overlapped Acquisition - Free-Run Non-overplapped Acquisition - Hardware Trigger, Software Trigger or CXP |
| Software Trigger | Asynchronous, Programmable via Camera API |
| Dynamic Range | 78 dB |
| Gain Control | 1× ~ 32× |
| Black Level Control | 0 ~ 4095 LSB at 16 bit |
| Dimension / Weight | 90 ㎜ × 90.0 ㎜ × 92.5 ㎜, 800 g (with M-72 mount) |
| Temperature | Operating: 0℃ ~ 40℃, Storage: -40℃ ~ 70℃ |
| Lens Mount | M72-mount, Custom mount available upon request |
| External | 11 ~ 24 V DC |
| Dissipation | Typ. 15.5 W |
| PoCXP | 24 V DC, Minimum of two PoCXP cables required |
| Compliance | CE, FCC, KC |
| API SDK | Vieworks Imaging Solution 7.X |
