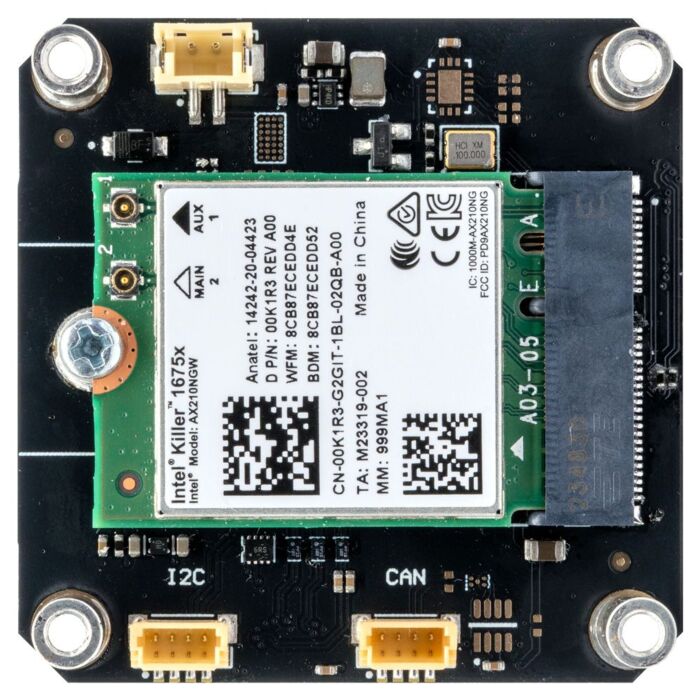

Videology SCAiLX Wi-Fi Board i.MX8M Plus, Intel® Wi-Fi 6E AX-210, 2x2 MIMO, 2.4/5/6 GHz, 2.4 Gbps

The Videology SCAiLX Wi-Fi Board is a NDAA compliant, high-performance wireless module designed for the i.MX8M Plus Edge AI platform, powered by the Intel® Wi-Fi 6E AX-210 chipset. Supporting Wi-Fi 4, 5, and 6, dual-band 2.4/5/6 GHz operation, and 2x2 TX/RX MIMO streams, it delivers peak wireless throughput of up to 2.4 Gbps. Integrated Bluetooth 5.3 enables flexible device connectivity, while PCIe Gen3, 1-lane ensures low-latency, high-speed communication for AI, IoT, and edge computing applications. The board is fully compatible with Linux OS, allowing seamless integration into embedded systems.

Engineered and built in the USA, the board measures a compact 42 x 42 x 8.6 mm and weighs just 13 g. It consumes 2.5 W typical (5 W max) and operates reliably across temperatures from 0° C to 50° C, with storage up to 85° C. Dual MHF/U.FL antenna connectors provide support for external antennas to enhance range and stability in complex environments. This combination of small form factor, high-speed connectivity, and low power consumption makes it ideal for edge AI devices, smart cameras, industrial IoT nodes, and other connected systems.

Features:

• Intel® Wi-Fi 6E AX-210 chipset, Wi-Fi 4/5/6 compatible
• Dual-band 2.4/5/6 GHz, 2x2 TX/RX MIMO streams
• Maximum speed up to 2.4 Gbps
• PCIe Gen3, 1-lane connectivity
• Integrated Bluetooth 5.3
• Dual MHF/U.FL antenna connectors
• Compact 42 x 42 x 8.6 mm, 13 g weight
• Low power: 2.5 W typical, 5 W max
• Linux OS compatible

Applications:

• AI edge devices
• Embedded IoT systems
• Industrial automation & monitoring
• Smart cameras and vision systems
• Low-latency wireless communication nodes
• Modular AI platforms
