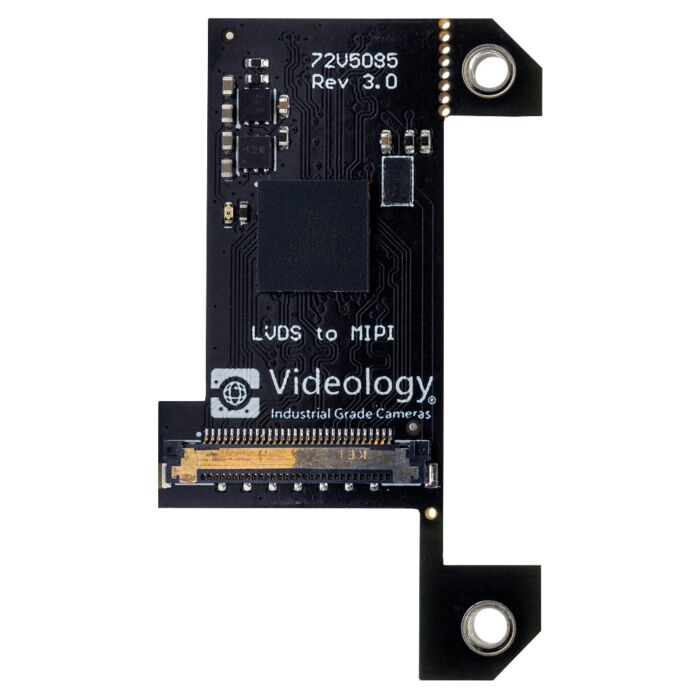

Videology SCAILX-LVDS-2-MIPI Single or Double Channel LVDS to MIPI Interface Board
Boost your machine vision performance with the Videology SCAILX-LVDS-2-MIPI Single or Dual Channel LVDS to MIPI interface board, made in the USA. Designed for industrial and automated imaging applications, this high-performance board leverages the i.MX8M Plus Edge AI Modular Platform for reliable processing and seamless camera integration.
Supporting multiple resolutions (720p and 1080p) and various frame rates, it’s compatible with Sony FCB-EV7520A, Tamron MP1010M-VC, and Videology 24Z2.1W block cameras. A KEL micro coaxial connection ensures robust, high-quality video transmission.
Ideal for industrial automation, quality inspection, surveillance, and precision imaging, the SCAILX-LVDS-2-MIPI offers firmware upgrades via SCAILX-SOM-AI, keeping your system current with the latest AI edge developments.
Features:
- Single/Double channel LVDS to MIPI interface
- Supports 720p and 1080p resolutions at various frame rates
- Compatible with Sony, Tamron, and Videology block cameras
- KEL micro coaxial connection
- Firmware upgradable via SCAILX-SOM-AI
- Made in the USA
Applications:
- Industrial automation
- Quality inspection
- Surveillance systems
- Precision imaging systems
- Edge AI applications
| Electrical | |
| Supply Voltage | 9-12 V ± 0.75 V (via MIPI connector via SCAILX-SOM board) |
| Block camera power supply | 9-12 V via KEL connector |
| Enviromental | |
| Operating Temp. | -40 °C ~ 60 °C (-40 °F ~ 140 °F) |
| Storage Temp. | -40 °C ~ 85 °C (-40 °F ~ 185 °F) |
| Operating Humidity | 30% ~ 90% RH |
| Storage Humidity | <85% RH |
| Mechanical | |
| Dimensions WxH | 24.5x42x4.1 mm, PCB thickness 1.56 mm |
| Weight | 2 g |
| Connectors | MIPI-OUT (J1) - DF40C-40DP-0.4V(51) KEL (J2) - USL00-30L-A |
