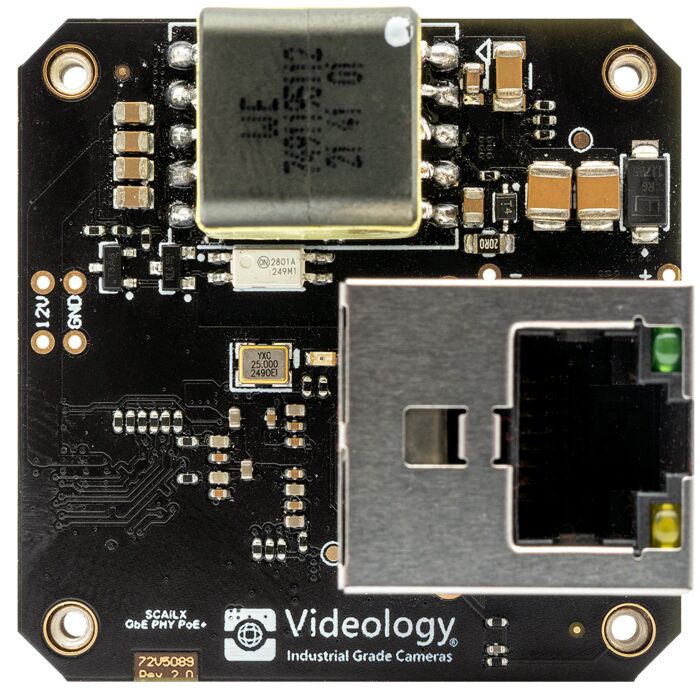

Videology SCAILX-ETH-POE Ethernet Interface Board with PoE
The Videology SCAILX-ETH-POE Ethernet Interface Board with PoE, NDAA compliant and proudly Made in the USA by Aegis Electronic Group Inc., is designed to enhance the performance of industrial and machine vision systems. Leveraging the robust i.MX8M Plus Edge AI Modular Platform, this interface board provides reliable and high-speed connectivity with Ethernet LAN speeds of 10/100/1000 Mbps. The SCAILXETHPOE features Power over Ethernet (PoE) functionality, adhering to Class 4 Type 2 IEEE 802.3at standards, ensuring efficient power delivery over Ethernet cables. With a supply voltage range of 42.5-57V, it is built to withstand a wide range of environmental conditions, operating reliably in temperatures from -20°C to 60°C and in high humidity environments.
Its RGMII interface, connected via FlexPCB to the SCAILX-SOM-AI module, offers seamless data transmission and integration. The compact dimensions (42x42 mm) and light weight (23 g) make it ideal for space-constrained applications. This board is perfect for industries requiring robust, high-performance network connections and power solutions, making it essential for advanced machine vision systems and industrial automation.
Features:
- Ethernet LAN: 10/100/1000 Mbps
- PoE Class 4 Type 2 IEEE 802.3at
- Supply Voltage: 42.5-57V
- RGMII interface with FlexPCB integration
- Compact size: 42x42 mm
- Operating Temp: -20°C to 60°C
Applications:
- Advanced machine vision systems
- Industrial automation
- High-speed data transfer networks
- Power-over-Ethernet (PoE) applications
- Robust environmental conditions operation
| RGMII (DF40C-40DS-0.4V(51)) | |||
| 01 | TX_CTL | 02 | GND |
| 03 | TXC (O) | 04 | MDC (I) |
| 05 | GND | 06 | MDIO (I/O) |
| 07 | TD0 (O) | 08 | GND |
| 09 | TD1 (O) | 10 | INT |
| 11 | GND | 12 | CLK125 |
| 13 | TD2 (O) | 14 | GND |
| 15 | TD3 (O) | 16 | RST (I) |
| 17 | +5V_ETH1 | 18 | +5V_ETH1 |
| 19 | 12V_PWR_OUT | 20 | 12V_PWR_OUT |
| 21 | 12V_PWR_OUT | 22 | 12V_PWR_OUT |
| 23 | +5V_ETH1 | 24 | +5V_ETH1 |
| 25 | Reserved | 26 | RX_CTL |
| 27 | GND | 28 | RXC (I) |
| 29 | Reserved | 30 | GND |
| 31 | Reserved | 32 | RD3 (I) |
| 33 | GND | 34 | RD2 (I) |
| 35 | Reserved | 36 | GND |
| 37 | Reserved | 38 | RD1 (I) |
| 39 | GND | 40 | RD0 (I) |
1: power in from SOM board
| Electrical SCAILX-ETH-POE | |
| Supply Voltage | 42.5-57 V |
| Enviromental | |
| Operating Temp. | -20 °C ~ 60 °C (-4 °F ~ 140 °F) |
| Storage Temp. | -40 °C ~ 85 °C (-22 °F ~ 185 °F) |
| Operating Humidity | 30% ~ 90% RH |
| Storage Humidity | <85% RH |
| Mechanical | |
| Dimensions WxLxH | 42x42x17 (top side) mm - 3 mm spacer on bottom side |
| Weight | 23 g |
| Connectors | RGMII - DF40C-40DS-0.4V(51) |
