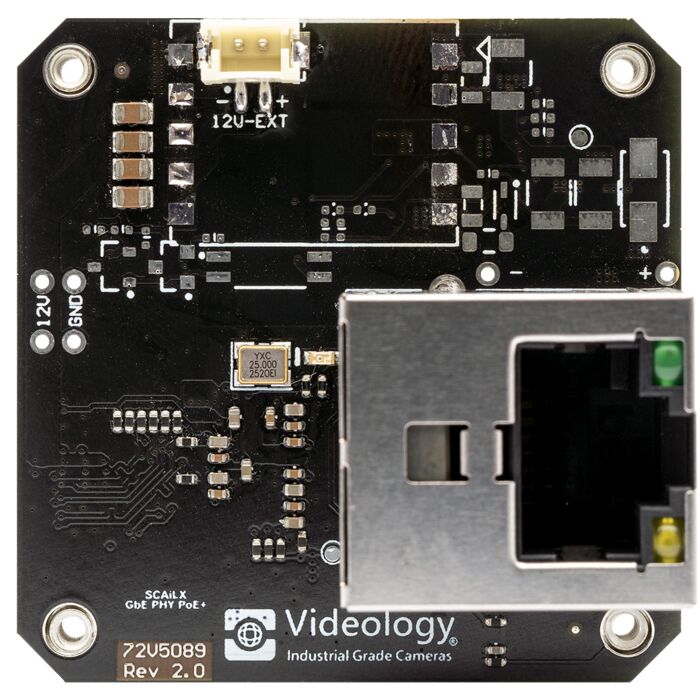

Videology SCAILX-ETH-DC Ethernet Interface Board with DC Power Input
The Videology SCAILX-ETH-DC Ethernet Interface Board delivers high-speed, reliable connectivity for machine vision and industrial applications. Built on the advanced i.MX8M Plus Edge AI Modular Platform, it features an Ethernet LAN supporting 10/100/1000 Mbps with auto negotiation and auto MDI-X for simplified network setup.
Designed with DC power input and an RGMII connection to the SCAILX-SOM-AI module via flexible PCB, this compact 42 × 42 mm board integrates easily into a variety of system configurations. The included ISO M2 tapped spacers provide versatile mounting options.
Proudly made in the USA, the SCAILX-ETH-DC ensures dependable performance and precision for security, medical, and bioscience industries—delivering American-built quality you can rely on.
Features:
- High-performance Ethernet interface board
- Supports 10/100/1000 Mbps Ethernet LAN
- Auto negotiation and auto MDI-X
- RGMII interface via FlexPCB
- 12V DC power input
- Compact size (42x42mm) with tapped 3mm spacers (ISO M2)
- Made in the USA
Applications:
- Machine vision systems
- Industrial monitors
- Security applications
- Medical imaging
- Bioscience research
- Automated inspection systems
- Robotics and automation
| RGMII (DF40C-40DS-0.4V(51)) | |||
| 01 | TX_CTL | 02 | GND |
| 03 | TXC (O) | 04 | MDC (I) |
| 05 | GND | 06 | MDIO (I/O) |
| 07 | TD0 (O) | 08 | GND |
| 09 | TD1 (O) | 10 | INT |
| 11 | GND | 12 | CLK125 |
| 13 | TD2 (O) | 14 | GND |
| 15 | TD3 (O) | 16 | RST (I) |
| 17 | +5V_ETH1 | 18 | +5V_ETH1 |
| 19 | 12V_PWR_OUT | 20 | 12V_PWR_OUT |
| 21 | 12V_PWR_OUT | 22 | 12V_PWR_OUT |
| 23 | +5V_ETH1 | 24 | +5V_ETH1 |
| 25 | Reserved | 26 | RX_CTL |
| 27 | GND | 28 | RXC (I) |
| 29 | Reserved | 30 | GND |
| 31 | Reserved | 32 | RD3 (I) |
| 33 | GND | 34 | RD2 (I) |
| 35 | Reserved | 36 | GND |
| 37 | Reserved | 38 | RD1 (I) |
| 39 | GND | 40 | RD0 (I) |
1: power in from SOM board
| Electrical SCAILX-ETH-DC | |
| Supply Voltage | 9-12 V DC |
| Connector PCB | WR-WTB 1.5mm male 2 pin |
| Mating connector and cable | WR-WTB 1.5mm female 2 pin (648 002 113 322) WR-WTB 1.5 mm pre-crimped cable AWG28 (648 148 128 130) |
| Enviromental | |
| Operating Temp. | -20 °C ~ 60 °C (-4 °F ~ 140 °F) |
| Storage Temp. | -40 °C ~ 85 °C (-22 °F ~ 185 °F) |
| Operating Humidity | 30% ~ 90% RH |
| Storage Humidity | <85% RH |
| Electrical SCAILX-ETH-DC | |
| Dimensions WxLxH | 42x42x17 (top side) mm - 3 mm spacer on bottom side |
| Weight | 23 g |
| Connectors | RGMII - DF40C-40DS-0.4V(51) |
