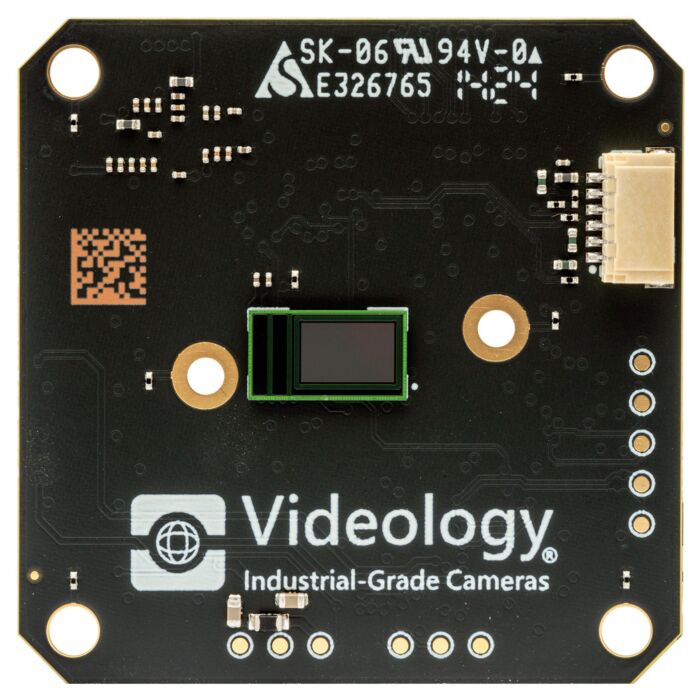

Videology SCAILX-2GS234-xM 2MP Monochrome Board Camera with Sony CMOS Global Shutter Sensor, 42×42mm
The NDAA compliant Videology SCAiLX-2GS234-xM, proudly made in the USA and available at Aegis Electronic Group Inc., is a cutting-edge 2MP monochrome global shutter camera designed for high-performance machine vision and industrial applications. This versatile camera integrates the i.MX8M Plus Edge AI Modular Platform, offering advanced imaging capabilities and seamless integration with various systems.
Featuring a 1/2.6" CMOS sensor with a global shutter, the SCAiLX-2GS234-xM ensures crisp and clear images even in fast-moving environments. With a compact 42x42 mm (1.65x1.65") board size and multiple lens mount options, including pinhole, M12, and CS, this American-made camera provides flexible deployment options.
Ideal for applications requiring precise image capture and analysis—such as automated inspection, robotics, and quality control—the SCAiLX2GS234xM excels in low-light conditions with sensitivity levels below 0.1 lux. The MIPI interface and I²C control make integration straightforward, while the robust environmental specifications ensure reliable performance in harsh industrial settings. With a resolution of up to 1920 x 1200 and frame rates up to 120 fps, this USA-engineered camera delivers exceptional image quality and performance, making it a top choice for professionals seeking advanced imaging solutions.
Features:
- 2MP Global Shutter Monochrome Camera
- i.MX8M Plus Edge AI Modular Platform
- 1/2.6" CMOS Sensor
- Resolution: Up to 1920 x 1200
- Frame Rate: Up to 120 fps
- Low-light sensitivity: < 0.1 lux
- MIPI interface
- Controllable via I²C
- Compact 42x42 mm (1.65x1.65") board size
- Multiple lens mount options: pinhole, M12, CS
Applications:
- Automated inspection systems
- Robotics and automation
- Quality control and assurance
- High-speed image capture
- Low-light industrial environments
- AI-driven image analysis
- Factory and production line monitoring
| Opto-Electrical | |
| Image Sensor | 1/2.6” CMOS Sensor |
| Pixel Size / Image Size | 3.0 μm x 3.0 μm / 1920 x 1200 |
| Shutter Type | Global Shutter |
| Resolution | Up to 1920 x 1200 |
| Framerate | Up to 120 fps |
| Dynamic Range | 71.4 dB |
| Signal to Noise ratio | 38 dB |
| Sensitivity | Color: < 0.1 lux Monochrome: < 0.05 lux |
| Video output interfaces | MIPI |
| Environmental | |
| Operating Temp. | -25 °C ~ 70 °C (-13 °F ~ 158 °F) |
| Storage Temp. | -40 °C ~ 85 °C (-40 °F ~ 185 °F) |
| Operating Humidity | < 90% (non-condensing) |
| Storage Humidity | < 75% |
| Electrical | |
| Supply Voltage | +5 V ± 10% |
| Maximum Current | 120 fps 220 mA 60 fps 170 mA 30 fps 140 mA Standby 17 mA |
| Power | 0.7 ~ 1.1 W |
| Standby | < 85 mW |
