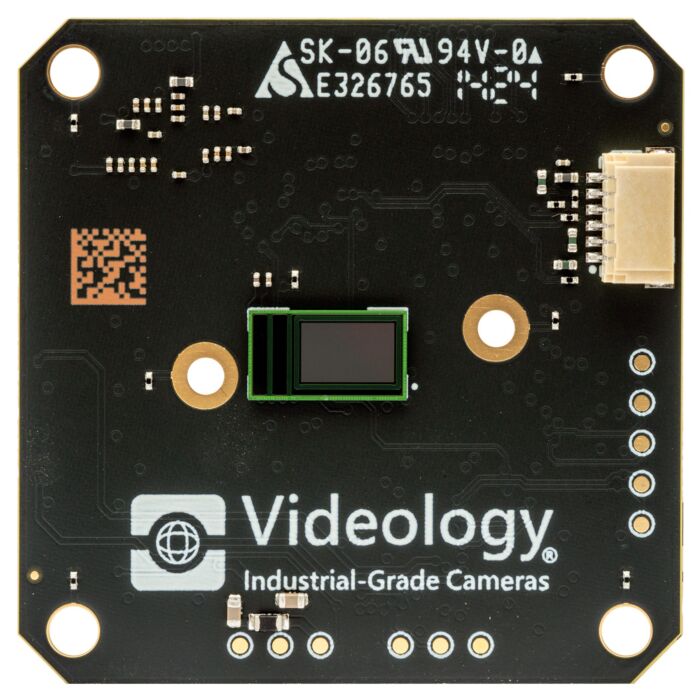

Videology SCAiLX-2GS234-xC 2MP Global Shutter Color Camera with Sony CMOS Sensor

The Videology SCAiLX-2GS234-xC, proudly made in the USA and NDAA compliant, is a powerful 2MP color global shutter camera designed to meet the demanding requirements of machine vision and industrial applications. Equipped with a 1/2.6" CMOS sensor and a global shutter, this camera delivers exceptional image quality with a resolution of up to 1920 x 1200 pixels. Its robust design, featuring a compact 42x42 mm board size and MIPI interface, ensures seamless integration into various systems. The camera is controllable via I²C and supports multiple lens mounts, including pinhole, M12, and CS, providing flexibility for diverse use cases.

The SCAiLX2GS234xC excels in environments where precise imaging is crucial, thanks to its high dynamic range of 71.4 dB and a signal-to-noise ratio of 38 dB. It performs efficiently in low-light conditions, with sensitivity levels of <0.1 lux for color and <0.05 lux for monochrome imaging. The camera is built to withstand harsh industrial conditions, with an operating temperature range of -25 °C to 70 °C and humidity tolerance up to 90%.

Features:

• 2MP Color Global Shutter Camera
• 1/2.6" CMOS Sensor
• Resolution up to 1920 x 1200 pixels
• High dynamic range of 71.4 dB
• Sensitivity: Color < 0.1 lux, Monochrome < 0.05 lux
• Framerate up to 120 fps
• Compact 42x42 mm board size
• MIPI interface, controllable via I²C
• Pinhole, M12, and CS lens mounts

Applications:

• Industrial Automation
• Security Surveillance
• Medical Imaging
• AI-based Systems
• Quality Control
• Robotics Vision
• Traffic Monitoring
• Agricultural Imaging
