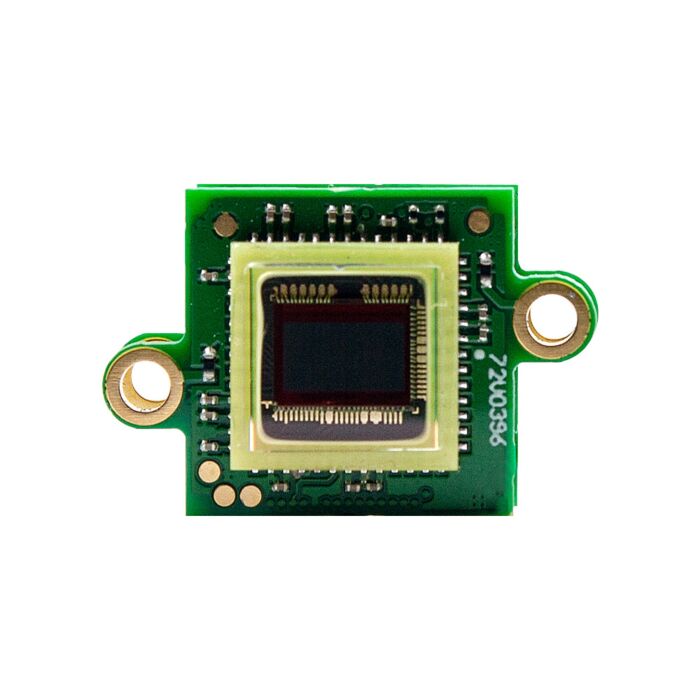

Videology 24C46X-2 Industrial Grade 1080p Mini 2.1 MP CMOS Color Cameras
Discover the High-Performance Videology 24C46X-2 Industrial Grade Cameras for Machine Vision Applications
Aegis Electronic Group Inc. presents the Videology 24C46X-2 industrial grade cameras, a benchmark in high-performance imaging solutions tailored for machine vision and industrial applications. These cameras feature a 1/3" CMOS sensor with a resolution of 1920 x 1080, providing sharp and clear images. The rolling shutter technology ensures smooth and accurate image capture, even in high-speed environments. With a pixel size of 2.8μm x 2.8μm and a sensitivity of less than 0.5 lux, these cameras deliver exceptional performance in low-light conditions.
The Videology 24C46X-2 cameras support both TVI and AHD coaxial outputs, offering flexible integration options. Their robust design, capable of operating in extreme temperatures ranging from -30°C to 60°C, makes them ideal for harsh industrial environments. Additionally, the wide dynamic range of 60.0 dB ensures that these cameras can handle high-contrast scenes effectively.
Applications benefiting from the Videology 24C46X-2 cameras include industrial automation, vision inspection, quality control, and various machine vision tasks. These cameras enhance precision and efficiency, contributing significantly to improved operational outcomes. Invest in Videology 24C46X-2 cameras to elevate your industrial imaging solutions to the next level.
Features:
- 1/3" CMOS sensor, 2.1MP resolution
- 1920 x 1080 recording pixels
- Rolling shutter with automatic/fixed options
- High sensitivity (<0.5 lux) for low-light conditions
- Supports TVI and AHD coaxial outputs
- Wide dynamic range of 60.0 dB
- Operates in extreme temperatures (-30°C to 60°C)
- Lightweight and compact design
- Also available In Housed Camera & Housed Camera with Optional Lens Shown
Applications:
- Industrial automation
- Vision inspection systems
- Quality control processes
- High-speed imaging tasks
- Low-light environment imaging
- High-contrast scene capture
| ELECTRICAL | |
| Image Sensor | 1/3” CMOS 2.1MP |
| Active Pixels | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Pixel Size / Image Size | 2.8μm x 2.8μm / 5.42mm x 3.068mm |
| Scanning System | Progressive |
| Resolution / Frame Rate | 2.1 MP (1920x1080) 30/25 fps |
| Pixel clock rate | 74.25MHz |
| Sensitivity | < 0.5 Lux 3.6 V/lux-sec |
| Gamma | 0.45 default |
| Gain | Automatic: 1 – 64x / Manual: 1 – 128x |
| Synchronization | Internal |
| Dynamic range | 60.0 dB |
| Signal to Noise ratio | 42.0 dB |
| Automatic Gain Control | Automatic / manual |
| Mirror / Flip | Horizontal & Vertical On/Of |
| Video output interfaces | Coaxial: AHD or TVI Twisted-pair: AHD or TVI |
| Supplied Voltage | 4.0 – 5.5 V |
| Current drawn @5V | Typical: 180mA Max: 220mA |
| Power consumption | 0.9W (max 1.1W) |
| COMMUNICATION | |
| Interface | Serial I2C |
| HD TRANSMISSION DISTANCE | |
| TVI/AHD Coaxial | >500m (1,600ft) |
| TVI/AHD Twisted pair | >300m (950ft) |
| MECHANICAL | |
| Dimensions WxHxD (w/ connector) | 24C46XBCD-2 - 15mm x 15mm x 13mm (0.59” x 0.59” x 0.26”) 24C465BCD-2 M-12 mount - 17.2mm x 16.6mm x 27mm (0.67” x 0.65” x 1.06”) |
| Connectors | Analog TVI/ AHD Coaxial - MMCX 50Ω type (75Ω Cable is advised) Power/GPIO 5-pin - Würth WR-WTB 1.0mm (665 305 124 022) Video ADH/TVI 3-pin - Würth WR-WTB 1.0mm (665 303 124 022) (100Ω Cable is advised) |
| ENVIRONMENTAL | |
| Operating Temp. | -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Temp. | -40°C ~ 105°C (-40°F ~ 221°F) |
| Operating Humidity | 20% ~ 90% RH |
| Storage Humidity | 94% RH |
