Videology 24C24XW Full HD 2.18MP Mini CMOS Color Camera with Wide Dynamic Range, MIPI/BT.1120/AHD/TVI Outputs, 22×26mm
The Videology 24C24XW 1080p Mini CMOS Color Camera, engineered and made in the USA, is built with a 1/2.7” CMOS sensor, delivering a high resolution of 1960x1120 active pixels with a pixel size of 3.0μm x 3.0μm. This ensures crisp and detailed image capture in a compact form factor. The camera supports multiple output formats, including MIPI (1080p at 30fps or 25fps), BT.1120 (1080p at 30fps or 25fps), and AHD/TVI (1920x1080 or 1280x720). With a dynamic range of 120dB, it excels in environments with challenging lighting conditions, delivering clear images with excellent contrast. The camera operates at a frame rate of 30fps or 25fps, depending on the output configuration, and offers analog HD transmission over distances up to 500m (1600ft) with AHD/TVI signals.
NDAA compliant and designed for flexibility and control, the 24C24XW features I²C communication for remote configuration, along with support for various lens mounts, including M12, CS, and pinhole, to meet diverse application needs. The board design measures just 22mm x 26mm, making it highly suitable for embedded and space-constrained systems. It operates on a 5V power supply, with typical power consumption of 1.05W and maximum power consumption of 1.25W. Its robust environmental specifications allow operation in extreme temperatures from -40°C to 60°C, with storage tolerance from -40°C to 85°C. Proudly made in the USA, the 24C24XW combines high-performance imaging, versatile output options, and proven reliability—making it ideal for industrial, surveillance, and embedded applications.
Features:
- 1/2.7” CMOS sensor

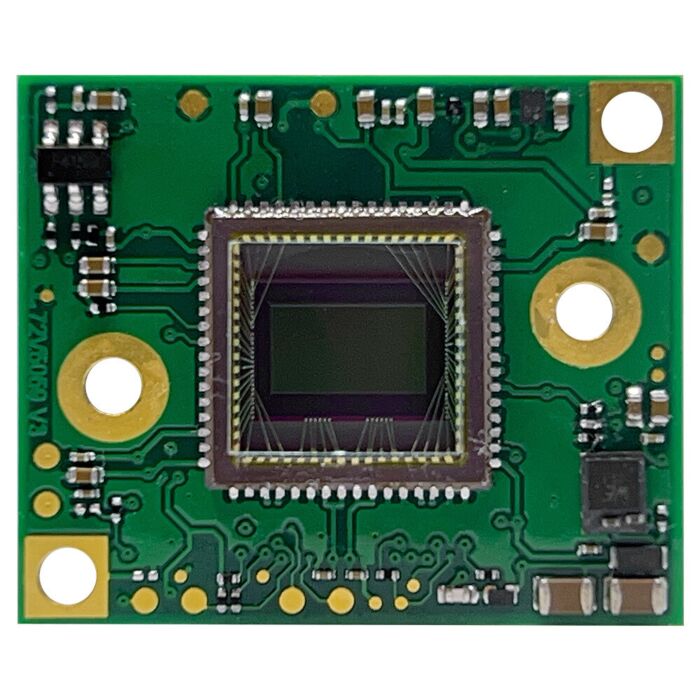

- Small stackable board design (22mm x 26mm)
- AHD/TVI HD Transmission up to 500m (1600ft.)
- Wide Dynamic Range
- Controllable via I2C
- PCB-PCB connector for Add-on boards
- Pinhole, M12 and CS lens mount options
- Digital output
- 4 lane MIPI (1080p @ 30fps or 25fps) (720p @ 30fps or 25fps)
- BT.1120 (1080p @ 30fps or 25fps)
Applications:
- CCTV and Surveillance Systems
- Retail Security and Loss Prevention
- Industrial and Manufacturing Monitoring
- Traffic Monitoring and Control
- Outdoor Surveillance and Remote Locations
- License Plate Recognition (LPR) Systems
- Healthcare and Hospital Surveillance
- Banking and Financial Institution Security
- Public Safety and Law Enforcement
| Opto-Electrical | |
|---|---|
| Image sensor | 1/2.7” CMOS Sensor |
| Active Pixels | 1960 x 1120 |
| Pixel size | 3.0μm x 3.0μm |
| Effective image size | 5.88 mm x 3.36 mm (diagonal 6.77mm) |
| Scanning system | Progressive |
| Shutter type | Rolling |
| Framerate | 25fps / 30fps |
| Analog Output Format | 1920 x 1080 (AHD or TVI), 1280 x 720 (AHD) |
| Digital Output MIPI | 4 lanes (148.5 MHz MIPI clock), 1920 x 1080, 1280 x 720 Other configurations available upon request. MOQ may apply. |
| Digital Output BT.1120 | (74.25 MHz clock) 1920 x 1080 Other configurations available upon request. MOQ may apply. |
| Aspect ratio | 16:9 |
| Dynamic range | 120 dB |
| Signal to Noise ratio | 44.9 dB |
| Sensitivity | < 0.5 lux |
| Video output interfaces | AHD / TVI / MIPI / BT.1120 |
| Electrical | |
| Supply Voltage | 5V ± 0.75V |
| Current typical/max. | 210mA / 250mA |
| Power typical/max. | 1.05W / 1.25W |
| Communication | |
| I²C interface | 3.3V (4.7 kΩ pull-up resistors) |
| HD Transmission Distance | |
| TVI/AHD single ended 75Ω | Up to 500m (1600ft.) with high quality cable |
| Environmental | |
| Operating Temp. | -40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 30% ~ 90% RH |
| Storage Humidity | <85% RH |
| Mechanical | |
| Dimensions WxHxD | 26x22x7.25 mm |
| Weight | 3g or 13g (with M12 lens mount) |
| Connectors | J100 - 8 pin Würth 665108131822 J101 - 30 pin Molex 501920-3001 J102 - 6 pin JST SM06B-SURS-TF |
| Accessories (included) | |
| 60C1041 | 6.89in (175mm) 8-pin JST with flying leads |
| I²C Communication Kit (Optional) | |
| 60C5-D | I²C Communication Kit for 24C24xW |
