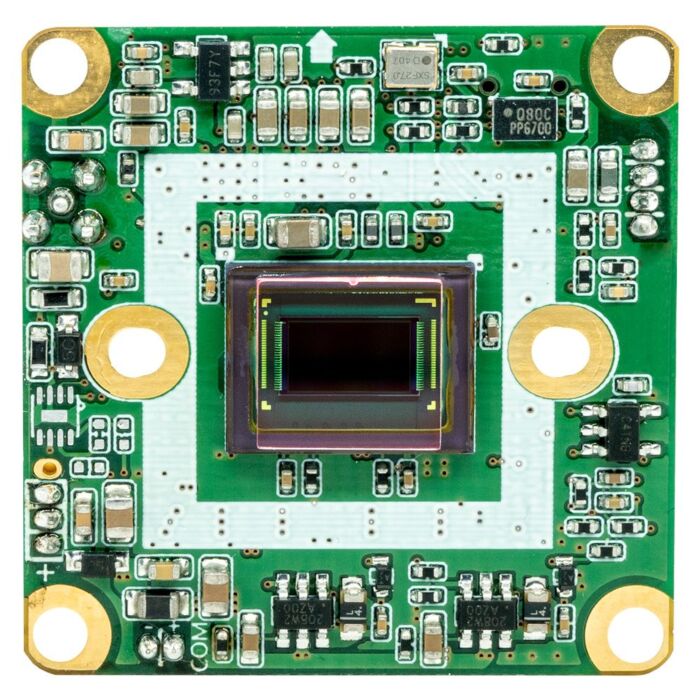

Videology 202-ESHSAHCV-662-XYZQ Full HD 2.18MP Board Camera with Sony STARVIS-2 Sensor, ePTZ, VISCA Control, 32×32mm

The NDAA compliant Videology 202-ESHSAHCV-662-xyzq is a high-performance Full HD color board camera proudly made in the USA, featuring the advanced 1/2.8” Sony STARVIS-2 IMX662 sensor, offering exceptional low-light sensitivity with a minimum illumination of just 0.04 lux. This sensor delivers 2.18 MP effective pixels (1965 x 1113) for crisp, detailed images. It supports a wide range of video resolutions, including 1080p at 30/25/24 fps, 1080i at 60/50 fps, and 720p at 60/50 fps, with selectable digital slow shutter capabilities ranging from 2x to 32x. This camera is equipped with ePTZ (digital pan, tilt, and zoom), enabling flexible control of the camera’s view, and incorporates CLEAR HDR technology to improve image clarity in high-contrast environments.

For versatile integration, the 202ESHSAHCV662xyzq supports a range of video output formats including HD-SDI, EX-SDI (1.0/2.0), AHD, TVI, CVI, and CVBS, making it adaptable to different surveillance and imaging systems. It features VISCA control via RS-485, allowing remote camera operation and system integration. The compact 32mm x 32mm x 6.8mm form factor, combined with a weight of only 6g, makes this camera ideal for embedded and space-constrained applications. With customizable options such as lens mounts, IR-cut filters, and video output configurations, the camera ensures high adaptability and performance in a variety of environments. Designed, engineered, and manufactured in the USA, it is powered by 12V DC and serves as an ideal solution for high-performance, low-latency imaging applications.

Features:

• Low light performance by Sony STARVIS-2 technology
• ePTZ (Digital, Pan, Tilt, & Zoom)
• CLEAR HDR technology
• Low-latency video transmission
• VISCA control

Applications:

• Surveillance Systems
• Embedded Vision Solutions
• Industrial Inspection and Quality Control
• Medical Imaging Systems
• Live Broadcasting and Video Production
• Remote Monitoring and Surveillance
• Automated Inspection in Manufacturing
• Law Enforcement and Public Safety
• Smart Home and IoT Applications
