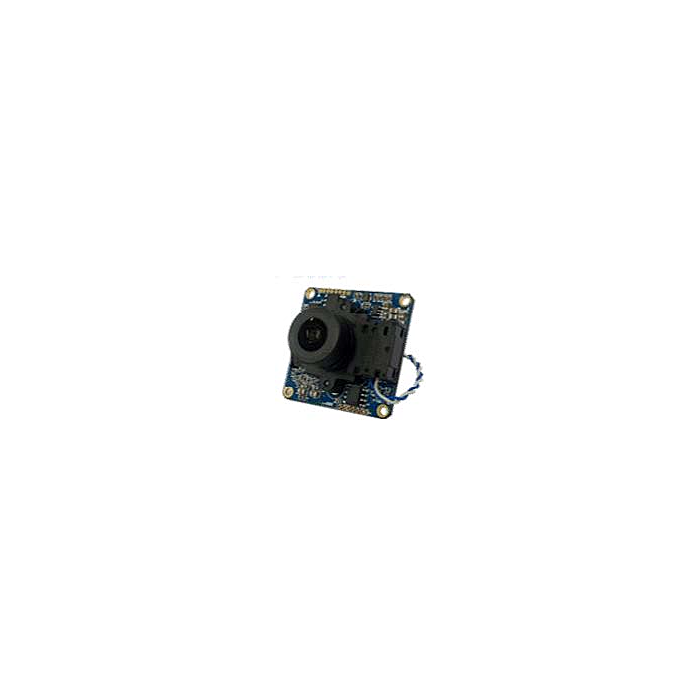

UBHM800 Full HD USB 2.0/UVC Board Level Camera, 2.13MP 1/2.8" Sony STARVIS CMOS, MJPEG + CVBS Output, 1920x1080 @ 30fps, OSD, DWDR, 3DNR
SKU
UBHM800
Quick Overview
UBHM800 USB 2.0 MJPEG camera with 2.13MP SONY STARVIS sensor, CVBS output, DWDR, 3DNR, TDN, Sens-up, 1920x1080 @ 30fps, OSD control, and lens options.
The UBHM800 is a compact Full HD USB board level camera designed for industrial, security, and embedded imaging systems. It features a 2.13MP 1/2.8" Sony STARVIS CMOS sensor for excellent low-light performance, delivering 1920x1080 MJPEG output at 30fps with simultaneous CVBS analog video. Key image enhancements include DWDR, 3DNR, Sens-up, and built-in OSD controls for real-time adjustment. Compatible with Windows, Linux, and Android.
Features:
- 2.13MP 1/2.8” Sony STARVIS CMOS Sensor
- Full HD 1920x1080 @ 30fps (MJPEG over USB 2.0)
- Simultaneous CVBS Output (1280H @ 30fps)
- DWDR, 2D/3D Noise Reduction, Digital Defog
- True Day/Night with TDN Mechanism
- On-Screen Display (OSD) with Multi-Language Support
- Sens-up, Backlight Compensation, Privacy Masking
- Board lens options: 2.1mm, 2.5mm, 2.8mm, 3.6mm, 4.0mm (Standard 3.6mm Included)
- Low Power: <1.1W via USB (DC 5V)
- UVC Compliant – Windows 7/8/10, Linux, Android
Applications:
- Industrial Machine Vision
- Embedded Imaging Systems
- Security & Surveillance
- OEM Integration Projects
- Kiosk and Access Control Systems
- Robotics and Automation Monitoring
| Image Sensor | |
|---|---|
| Sensor Type | 1/2.8" SONY 2.13M STARVIS CMOS |
| Sensor Size | 1/2.8 inch |
| Scan Method | Progressive Scan |
| Total Pixels | 1945(H) × 1109(V), 2.16 MP |
| Effective Pixels | 1945(H) × 1097(V), 2.13 MP |
| Video Output | |
| USB Output | USB 2.0 (MJPEG) |
| Analog Output | CVBS 1280H @ 30fps |
| Video Resolutions | 640x480, 704x480, 800x600, 960x540, 1024x768, 1280x720, 1366x768, 1920x1080 (default) |
| Max Frame Rate | 30fps |
| Image Settings | |
| Min. Illumination | Color: 0.1 Lux / B&W: 0.05 Lux; Color Sens-up: 0.01 Lux / B&W Sens-up: 0.005 Lux |
| White Balance | ATW / AWC-SET / INDOOR / OUTDOOR / MANUAL / AWB |
| Exposure | AUTO / FLK |
| Shutter Speed | NTSC: 1/30 ~ 1/50,000 sec; PAL: 1/25 ~ 1/50,000 sec |
| Sens-Up | AUTO(x4) / x2 / x4 / x6 / x8 / x10 / x15 / x20 / x25 / x30 |
| Backlight Compensation | OFF / BLC / HSBLC |
| WDR | DWDR |
| Privacy Masking | 4 Zones |
| Day & Night | AUTO / COLOR / B&W / EXT |
| Motion Detection | OFF / ON |
| 2D + 3D NR | OFF / LOW / MIDDEL / HIGH |
| Digital Effects | OFF / MIRROR / V-FLIP / ROTATE & FREEZE |
| Sharpness | Adjustable |
| Defog | ON / OFF |
| OSD | Built-in (5-direction Key) |
| Lens | |
| Board Lens Options | 2.1mm, 2.5mm, 2.8mm, 3.6mm, 4.0mm |
| USB & Interface | |
| Transfer System | USB 2.0 Compliant |
| Video Coding | MJPEG |
| Supported OS | Windows 7/8/10, Linux, Android |
| USB Cable | USB 2.0 Type A |
| UVC Compatibility | Yes |
| Power & Environment | |
| Input Power | DC 5V via USB |
| Power Consumption | Less than 1.1W (220mA @ DC5V) |
| Operating Temp | -20°C ~ +50°C |
| Storage Temp | -30°C ~ +60°C |
