Twiga TV10 0096 3G/HD-SDI for LVDS Zoom Block Cameras

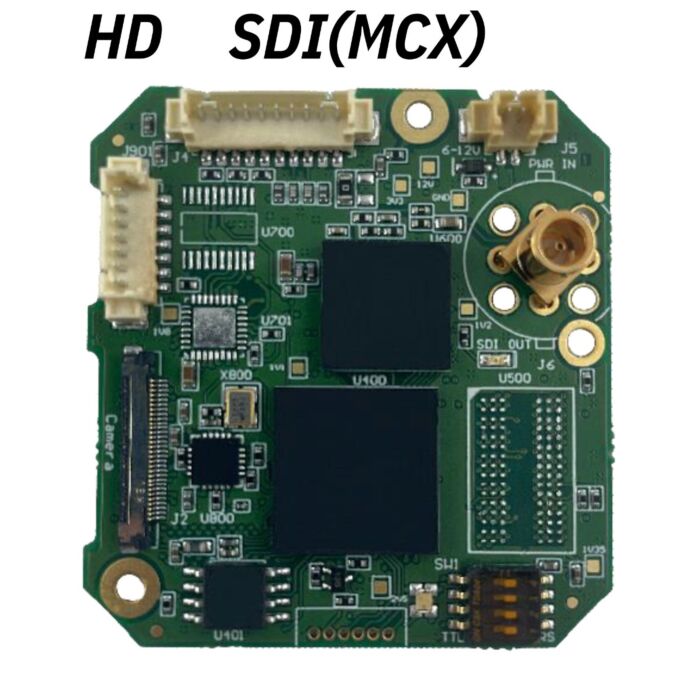

The 3G-SDI board converts the native LVDS video signal from camera zoom blocks to 3G/HD-SDI standard.
Take advantage of a high quality and uncompressed video stream.
- Compatible with latest Sony FCB-EV9500L
- Compatible with latest Tamron MP3010
Staggering Image Quality
3G/HD-SDI interface board enables to transmit uncompressed high-definition video signals from LVDS zoom cameras to screen and delivers high picture quality.
3G/HD-SDI allows real time and secure HD video transmission over long distances using coaxial cable (100 m+)
Easy Integration
3G/HD-SDI module can be rear-mounted on the camera without hampering the mechanical integration.
3G/HD-SDI conversion board has been expertly designed to offer a robust, industrial and sustainable solution for applications such as medical imaging, surveillance, machine vision, inspection that require long life cycle.
Custom Functionalities
Depending on your application, a board-to-board connector available on the module will allow you benefit from custom functionalities including integrated RTC, audio embedded to SDI, additional video input.
Features:
- 3G/HD-SDI Output
- Video resolution up to 1080p60
- Ultra-low transmission latency (<1ms)
- UART Communication - RS232/TTL using VISCA
- Setup & Update via UART
- Video mode selection by switches
Applications:
- Medical Imaging
- Surveillance
- Machine Vision
- Inspection
| Digital Video Output | 3G/HD-SDI - SMPTE 424 M, HD-SDI 292 M |
| Video Output Standard Configuration | Switches |
| Camera Setting | VISCA – RS232 / TTL level (selectable via switches) |
| Power Supply | 7 to 12 VDC |
| Power Consumption | 5 W (including camera) |
| Environmental | 0°C to 60°C |
| Storage | -20°C to 60°C |
| Regulation | CE EMC compliant, PCB : UL |
| Dimensions ( mm) | 48(H) x 45(W) x 13(D) |
| Weight | 15 g |
