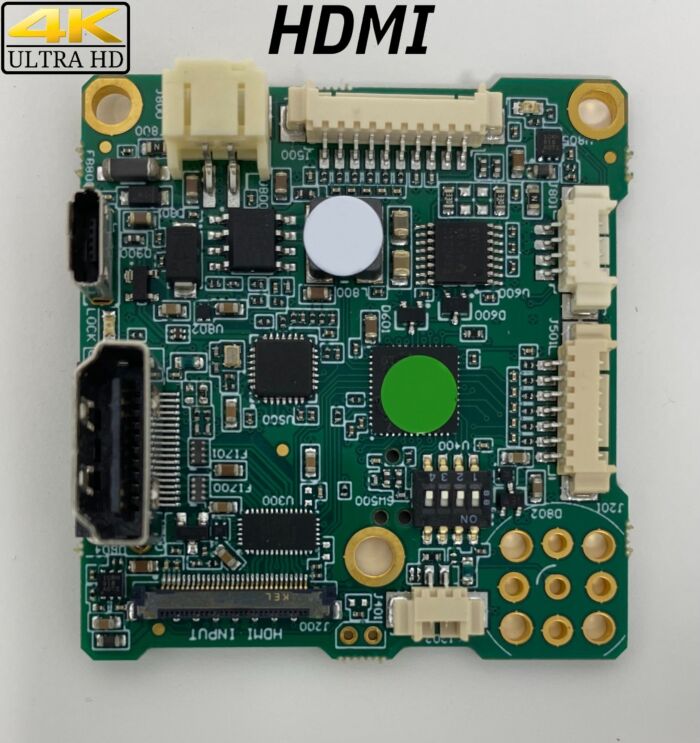

Twiga TV10 0077 HDMI 4K Interface Board
Introducing the latest edition to our 4k interface board range: The HDMI 4K Ext Sync has been specifically designed for Sony FCB-ER8530, FCB-ER8550, FCB-ES8230 and New FCB-EW9500H 4k cameras. Twiga high performance new HDMI 4k module will brings 4k possibility to a variety of application where performance, color image quality, and space is a premium.
The new HDMI 4k module will bring 4K possibilities to a variety of application where performance, color image quality, and space is a premium. The interface board supports 4K video format in Ultra HD resolution (3840 x 2160) with output flexibility. Depending on your application and configuration, you can select the format you need from HD to 4K. Highly compact, and very easy to connect, the HDMI-4K-SYNC can be rear-mounted on Sony 4K range of cameras without hampering the mechanical integration.
Features:
- Designed for Sony FCB-ER8300, FCB-ER8530, FCB-ER8550
- Supports External Synchronization input (for FCB ER-8550)
- Drive HDMI cable up to 20m (65.61ft)
- Supports 4k video resolution – up to 2160p25/29.97Hz
- Supports Full HD resolution
- Serial communication TTL or RS232
- USB micro B for communication & update
- Camera control through VISCA and GPIO
- Video format selection by DIP switches
- 5V 1A switchable power output for external devices
- Low power sleep mode for mobile applications
| Digital video output | HDMI 1.4b |
| External sync input | Molex 2 pts (J202) or coax connector (option not natively mounted) |
| Video Format | Full HD – 4K resolution up to 3840x2160 29.97p |
| Video format configuration | DIP Switches |
| Camera communication & settings | VISCA – RS232 / TTL level |
| Power Supply | 6 to 12 VDC 0,2W (sleep mode), 4.1W (running mode)* with camera set in 4k30p |
| Operating Temperature Range | -10°C to 50°C |
| Storage Temperature Range | -20°C to 60°C |
| Regulation | EMC FCC part 15, PCB : UL 94 V0 |
| Dimension | 48 (H) x 45 (W) x 11 (D) |
