TruVu VM-10.1Z (VM10.1Z) | 10.1” Color LCD Monitor Image #1

Tru-Vu VM-10.1Z (VM10.1Z) 10.1” Color LCD Monitor

Tru-Vu SRM-10.4S (SRM10.4S) 10.4” Sunlight Readable Monitor

Tru-Vu SRM-10.4S (SRM10.4S) 10.4” Sunlight Readable Monitor

Tru-Vu VMTR-10.1R (VMTR10.1R) 10.1” Industrial-Grade Touch Screen Monitor

The VMTR-10.1R Series touch screen monitors utilize 5-wire resistive touch technology; the screen can be activated via a finger, gloved hand, credit card or stylus. They are ideal for use in a wide range of industrial, law enforcement, marine, military, advertising, commercial and material handling applications. An extensive list of OEM options enables you to customize the VMTR-10.1 Series to meet your exact needs.

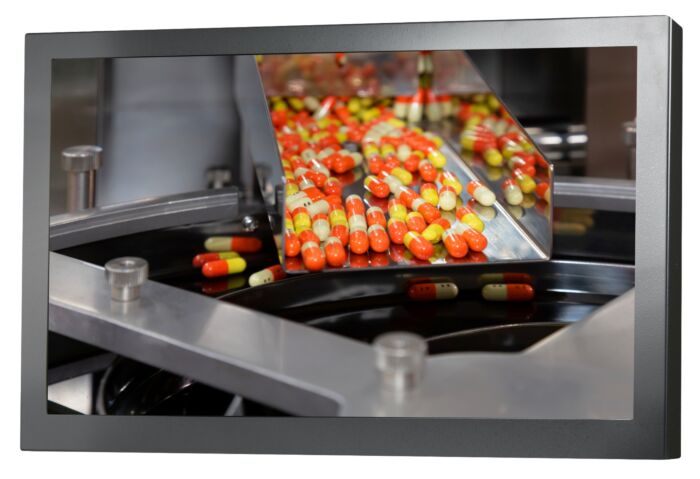

Tru-Vu VMTR-10.1R 10.1” Industrial-Grade Touch Screen Monitor

TRU-Vu's VMTR-10.1R is an industrial LCD monitor specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.




  • 0.1” Industrial-Grade Touch Screen Monitor
  • 5-Wire Resistive Touch Screen
  • Available with Optical Bonding
  • 1280 x 800 (WXGA) Resolution
  • Video Inputs: VGA, HDMI, DisplayPort
  • Lockable On-Screen Display (OSD) Controls
  • Auto Re-Start After Power Loss
  • TRU-Tuf Ensures Maximum Shock/Vibration Resistance
  • 3 Year Warranty



  • Industrial
  • Military
  • Medical
  • A/V
  • Commercial Applications
  • Model
    LCD Panel 10.1” Color MVA LCD; LED Backlights
    Touch Screen 5-Wire Resistive Touch
    Resolution 1280 x 800 (WXGA) (Accepts up to 1920 x 1080p Input)
    Display Area 8.54” (W) x 5.34” (H) (216.96 x 135.6 mm)
    Pixel Pitch 0.1695 mm
    Display Colors
    Aspect Ratio
    350 nits
    Contrast Ratio
    Viewing Angle
    170° (H) x 170° (V)
    Response Time 10ms
    Control OSD via Rear Push Buttons
    Video Inputs VGA, HDMI, DisplayPort
    Power Requirement 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Adapter
    Power Consumption TBD
    Powder-Coated Steel
    Operating Temperature +14° to +122° F (-10° to +50° C)
    Shock 50G, 20ms, Half-sine wave
    Vibration 1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z)
    Dimensions 9.37” (W) x 6.21” (H) x 1.18” (D) (238.1 x 157.7 x 30 mm)
    Weight 2.31 lbs. (1.05 kg)
    3 Years
