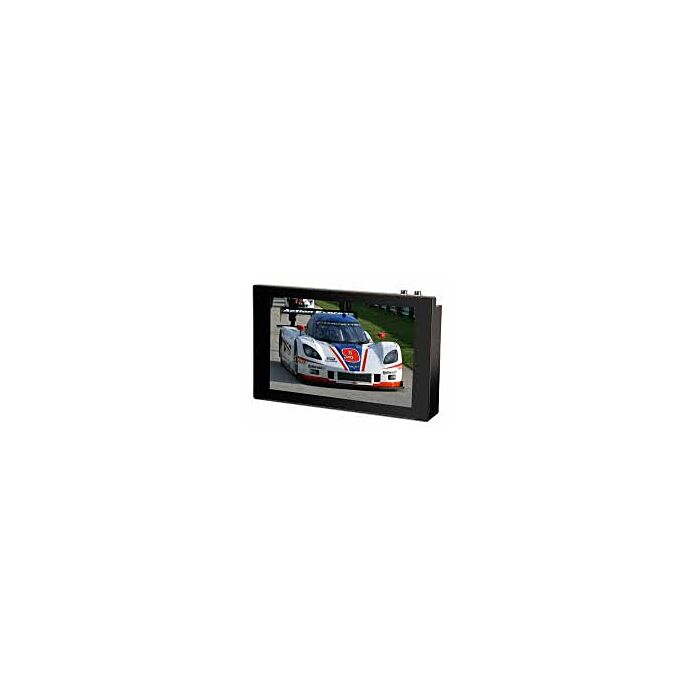

Tru-Vu VM-10.1Z (VM10.1Z) 10.1” Color LCD Monitor
*Product is discontinued, Replacement Option: VM-10.1U
The VM-10.1Z is a rugged 10.1” LCD monitor designed for a wide range of applications. Utilizing the built-in rechargeable battery, the VM-10.1Z is ideal for use as a portable test monitor. It will operate for 7 continuous hours on a new fully-charged battery.
The VM-10.1Z can also be used on equipment or in vehicles, powered via 12VDC. The wide range of SD and HD video inputs, bright screen and steel housing make this a rugged, reliable, high-performance monitor.
Features:
• Battery-Powered or Operate on 12VDC
• Ideal for Mobile Applications
• Video Inputs: HD-SDI, HDMI, VGA,
Composite (BNC)
• Video Outputs: HD-SDI and Composite (BNC)
• Powder-Coated Steel Enclosure
• 3-Year Warranty
• Approximately 7 Hours Operation with New Fully-Charged Battery
Applications:
| Model |
VM-10.1Z
|
| LCD Panel | 10.1” TFT LCD |
| Resolution | 1280 x 800 (WXGA) |
| Display Area | 8.54” (W) x 5.33” (H) (216.96 x 135.6mm) |
| Pixel Pitch | 0.1695 mm |
| Display Colors |
16.7m
|
| Aspect Ratio |
16:10
|
| Brightness |
350 nits
|
| Contrast Ratio |
800:1
|
| Viewing Angle |
170° (H) x 170° (V)
|
| Response Time | 10ms |
| Control | OSD via Rear Push Buttons |
| Video Inputs | 1 HD-SDI Input / 1 HD-SDI Output |
| Power Requirement | 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Adapter |
| Power Consumption |
12W
|
| Enclosure |
Powder-Coated Steel
|
| Operating Temperature | 14° to +122°F (-10 to +50° C) |
| Shock | 100G, 6ms, Half-sine wave |
| Vibration | 10-55 Hz, l.5mm Stroke 2 hrs/axis (X,Y,Z) |
| Dimensions | 10.75” (W) x 6.75” (H) x 1.71” (D) (273.05 x 171.45 x 43.43 mm) |
| Weight |
2.8 lbs. / 1.3 kg
|
| Warranty |
3 Years
|
