Tru-Vu SXOBH-55-XTR 55” Outdoor Waterproof Sunlight Readable LCD Monitor
*Product is discontinued, Replacement Option: SXOBH-55-4

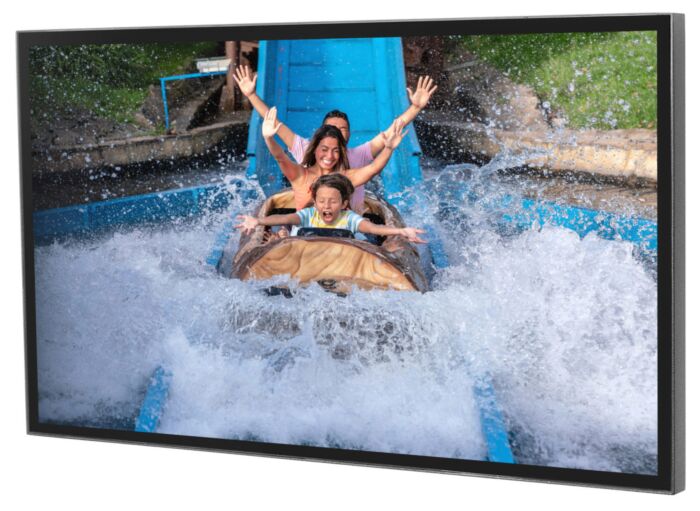

The SXOBH-55-XTR is a 55” waterproof Sunlight Readable LCD outdoor monitor.
The SXOBH-55-XTR is the best outdoor waterproof sunlight readable LCD TV monitor on the market. It represents the most advanced technology available today. This Optically Bonded high-brightness 55″ TV monitor screen features 2,500 nits screen brightness. You will see clear, sharp video images even with bright sunlight directly on the screen. Thanks to our special polarizer, our high brightness full sun TV operates in both Portrait and Landscape modes. Our SXOBH-55-XTR features a fully-sealed enclosure. It is a corrosion-resistant enclosure, rated IP68/NEMA 6. This is the ultimate solution for use outdoors. Also, it is very popular for challenging industrial environments. Additionally, the optional waterproof sound-bar provides exceptional sound quality. Remote-Monitoring is supported via IP-addressable user interface for temperature, humidity and power draw diagnostics of the display.
Features:
- Ultra-Bright – 2,500 Nits Brightness
- Optical Bonding Improves Contrast Ratio and Image Quality
- IP 68/NEMA 6 Fully-Sealed Enclosure
- Works in Landscape and Portrait Mode
- Completely-Sealed Waterproof Enclosure (IP 68)
- Maintenance-Free: No Vents, Fans or Filters
- Ambient Light Sensor Adjusts Screen Brightness Automatically
- Anti-Reflective, Impact-Resistant Safety Glass, Rated IK10
- Remote Diagnostics (SNMP Protocol)
- Auto Re-Start After Power Loss
- Built-in TV Tuner
- 12 VDC and 5 VDC Power Outputs
- KeyLock Function
| Model | SXOBH-55-XTR |
| LCD Panel | 55” IPS Panel, Optically Bonded |
| Display Resolution | 1920 x 1080p Full HD |
| Viewable Area | 42.27” (W) x 23.78” (H) (1074mm x 604mm) |
| Display Mode | Landscape or Portrait Mode |
| Pixel Pitch | 0.5593 x 0.5593 mm |
| Display Colors | 10 Bit, 1.07 Billion Colors |
| Aspect Ratio | 16:9 |
| Brightness | 2,500 nits |
| Contrast Ratio | 1,300:1 |
| Ambient Light Sensor | Standard |
| Optical Bonding | Standard |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 12ms (Gray to Gray) |
| Video Inputs | VGA, HDMI (x3), CVBS, YPbPr, TV Coax, DisplayPort, USB |
| Audio Inputs | VGA x 1, 3.5mm (x1) |
| Control | Remote Control with IR Extender; RS-232 Control |
| Power Requirement | 100 VAC to 240 VAC |
| Power Consumption | 186W |
| Enclosure / IP Rating | Rugged Corrosion-Resistant Aluminum; IP68/NEMA 6 Waterproof |
| Protective Glass | 5mm Tempered Anti-Reflective Glass (IK10) |
| Mounting | 400mm x 400mm, 400mm x 200mm VESA Hole Pattern |
| Operating Temp | -31°F to +140°F (-35°C to +60°C) |
| Dimensions | 50.07” (W) x 29.23” (H) x 3.92”(D) (1272x742x100mm) |
| Net Weight | 133 lb (60 kg) |
| Approvals | UL, FCC, cUL, RoHS |
| Warranty | 2 Years |
