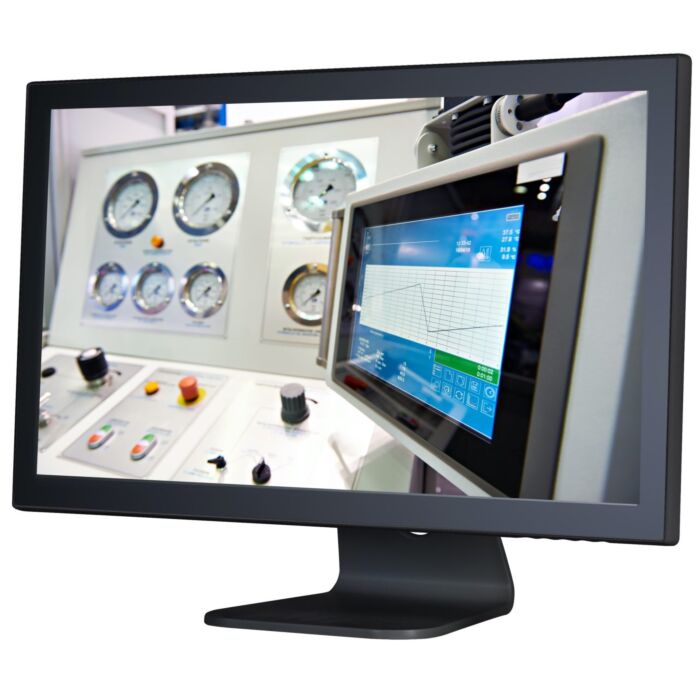

Tru-Vu ZBVM-21.5C-120 21.5" Zero-Bezel Monitor
The Tru-Vu ZBVM-21.5C-120 zero-bezel industrial LCD monitor delivers clarity, precision, and durability in a sleek, all-glass design. Featuring a frameless front surface, this 21.5-inch display ensures a seamless viewing experience, ideal for environments requiring hygiene and easy cleaning. Its Full HD resolution (1920x1080) provides sharp, vibrant images, supported by wide 178°/178° viewing angles and LED backlighting for consistent performance in industrial and commercial use.
Engineered with industrial-grade components and backed by a 3-year warranty, the Tru-Vu ZBVM-21.5C-120 ensures continuous operation in demanding conditions. Its multiple input options—HDMI, VGA, and DisplayPort—provide flexibility for integration across different systems, while the rugged IP65 front panel rating protects against dust and moisture.
Features:
- 21.5" Full HD (1920x1080) zero-bezel LCD display
- Seamless edge-to-edge all-glass front for easy cleaning
- Industrial-grade components for continuous operation
- LED backlight for energy efficiency and clarity
- Wide 178° horizontal and vertical viewing angles
- Dual built-in rear speakers
- HDMI, VGA, and DisplayPort inputs
- Lockable OSD controls
- IP65 front, IP30 rear rating
- TAA compliant with 3-year warranty
Applications:
- Healthcare Displays
- Industrial Control
- Machine Vision
- Kiosk Systems
- Hospitality Screens
- Surveillance Stations
| LCD Panel | 21.5” TFT Color LCD |
| Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Display Area | 18.76” x 10.55” (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 18 ms Trf |
| Controls | Lockable OSD (On-Screen Display) via Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 12 VDC (90-240 VAC with Included Power Brick) |
| Power Consumption | 25W at 12 VDC/2.1A |
| Enclosure | ABS with Zero-Bezel Front Face |
| IP Rating | Front: IP65 | Rear: IP30 |
| Mounting | 100 x 100 mm VESA Mount | Optional Tabletop Base |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 5–90% Non-Condensing |
| Vibration | 1.5G RMS; Random Wave; 10–200 Hz; 30 mins per axis |
| Shock | 50G, Half-sine Wave, 20 msec (X, Y, Z) |
| Dimensions | 20.68” (W) x 12.61” (H) x 2.20” (D) (525.3 x 320.3 x 55.8 mm) |
| Weight | 10.21 lbs (4.62 kg) excluding base |
| Warranty | 3 Years |
