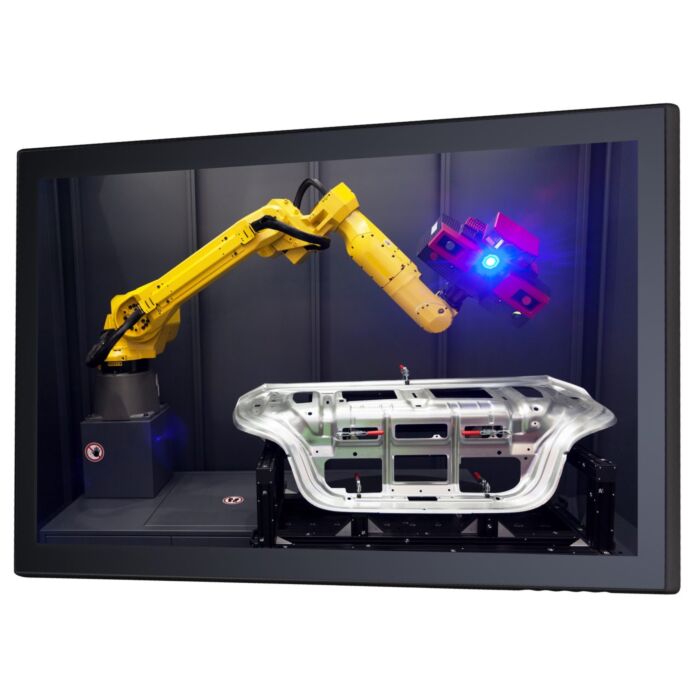

Tru-Vu ZBTP-21.5A-24M 21.5” 10 Point P-CAP Touchscreen Monitor
The Tru-Vu ZBTP-21.5A-24M is a 21.5-inch industrial-grade bezel-less projected capacitive (P-Cap) touchscreen display engineered for rugged performance and multi-touch precision. Featuring TRU-Touch technology, this 10-point capacitive panel delivers fast, accurate touch response, even through liquids or gloves. With a full HD 1920x1080 resolution and LED backlight, it ensures brilliant clarity and smooth operation across diverse industrial applications.
Built with a durable steel enclosure and zero-bezel glass front, the Tru-Vu ZBTP-21.5A-24M combines superior aesthetics with industrial resilience. The wide operating temperature range from -4°F to +176°F guarantees consistent performance in extreme conditions. Its anti-glare coating, UV protection, and multiple video inputs (VGA, DVI, HDMI) make it ideal for control systems, production lines, and field operations.
Features:
- 21.5” Full HD 1920x1080 resolution
- 10-point projected capacitive multi-touch
- TRU-Touch scratch-resistant glass surface
- Bezel-less all-glass front for easy cleaning
- Steel enclosure with 100x100 VESA mount pattern
- VGA, DVI, and HDMI inputs
- Wide operating temperature: -4°F to +176°F (-20°C to +80°C)
- UV-stable, optically clear adhesives for sunlight readability
- External remote control included
- 3-year warranty
Applications:
- Factory Automation
- Control Systems
- Kiosk Displays
- Medical Equipment
- POS Terminals
- Outdoor Monitoring
- Marine Systems
- Vehicle Integration
| Model | Tru-Vu ZBTP-21.5A-24M |
| LCD Panel | 21.5” Color LCD with LED Backlights |
| Touch Screen Type | Projected Capacitive, 10 Touch Points |
| Touch Interface | USB |
| Resolution | 1920 x 1080 (Full HD) |
| Viewable Area | 478.66(H) × 260.28(V) mm |
| Pixel Pitch | 0.2331(H) x 0.2331(V) mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Surface Treatment | Anti-glare, 3H |
| Contrast Ratio | 700:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 14 Typ. / 21 Max ms |
| Control | External Remote Control |
| Video Inputs | VGA, DVI, HDMI |
| Power Requirement | 24VDC & 90-240VAC (with AC adapter) |
| Power Consumption | TBD |
| Enclosure | Painted Steel, Zero-Bezel Front |
| Mounting | 100 x 100mm VESA Holes |
| Operating Temperature | -4° to 176° F (-20° to +80° C) |
| Humidity | 80% RH |
| Shock/Vibration | 50 G (11 msec, sine wave) |
| Dimensions | 499(H) x 286.2(V) x 10.7(D) mm |
| Weight | 4.41 lbs (2 kg) |
| Warranty | 3 Years |
