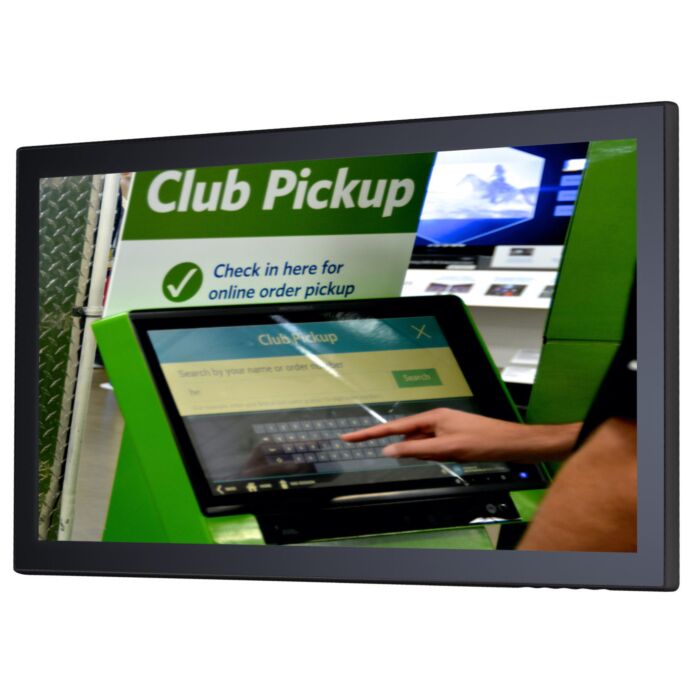

Tru-Vu ZBMT-18.5R10 18.5" Bezel-Less Projected Capacitive Touch Screen Monitor
SKU
ZBMT-18.5R10-1
$1,145.00
Quick Overview
18.5” bezel-less touchscreen monitor with projected capacitive, multi-touch technology, zero-bezel all-glass front, HD resolution, and industrial reliability for medical, automation, and kiosk use.
Experience advanced touchscreen technology with the TRU-Vu ZBMT-18.5R10, an 18.5" bezel-less, projected capacitive monitor engineered for demanding environments. Its seamless all-glass front is easy to clean and hygienic, resisting contamination and build-up. Activate touch with exposed fingers or gloves—ideal for medical, commercial, and industrial use.
Built with true industrial-grade components, this 16:9 widescreen display delivers crisp HD resolution (1366x768), wide viewing angles, and robust reliability. Featuring auto restart, lockable OSD controls, dual built-in speakers, versatile video inputs, and TAA compliance, it is the trusted solution for automation, healthcare, kiosks, and beyond.
Features:
- Bezel-less all-glass front
- Projected capacitive multi-touch
- Glove activation (surgical/cotton)
- HD resolution: 1366 x 768 (16:9)
- Dual rear speakers
- Lockable OSD
- Auto re-start after power loss
- Wide viewing angles
- Rugged industrial build
- TAA compliant
- Customizable options
- 3-year warranty
- Compatible with Automation Direct HMI
Applications:
- Medical Displays
- Kiosks & Vending
- Hospitality
- Digital Signage
- Automation
- OEM Integration
- Government Use
| Model | TRU-Vu ZBMT-18.5R10 |
| LCD Panel | 18.5” TFT Color LCD; LED Backlights |
| Touch Screen Type | Projected Capacitive (P-Cap) |
| Touch Interface | USB |
| Windows 10 Compatibility | Yes |
| Resolution | 1366 x 768 (WXGA) |
| Viewable Area | 16.13” x 9.07” (409.8 x 230.4 mm) |
| Pixel Pitch | 0.300mm |
| Colors | 16.7M |
| Aspect Ratio | 16:9 |
| Brightness | 450 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5 ms Trf |
| Controls | OSD via Pushbuttons (Lockable) |
| Video Inputs | VGA, HDMI, DisplayPort |
| Speakers | Standard (Dual Rear) |
| Power Requirement | 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Power Brick |
| Power Consumption | 16W |
| Enclosure | ABS, Zero-Bezel Front |
| IP Rating | Front: IP65; Rear: IP30 |
| Mounting | 100x100 mm Rear VESA |
| Operating Temp | 32°–140°F (0–60°C) |
| Dimensions | 17.88" (W) x 11.22" (H) x 2.02" (D) (454.09 x 284.89 x 51.43 mm) |
| Weight | TBD |
