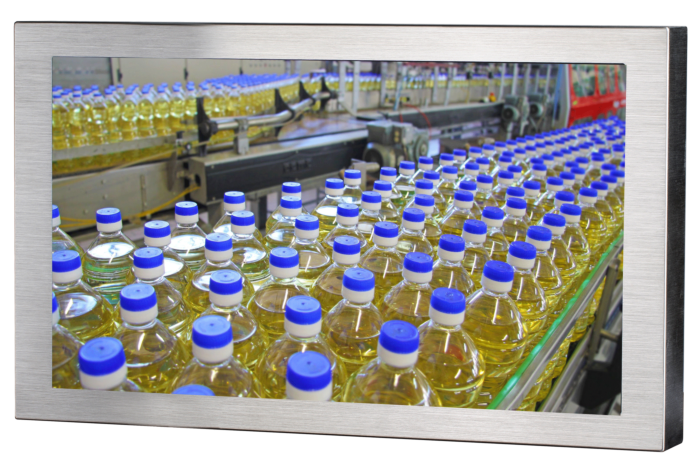

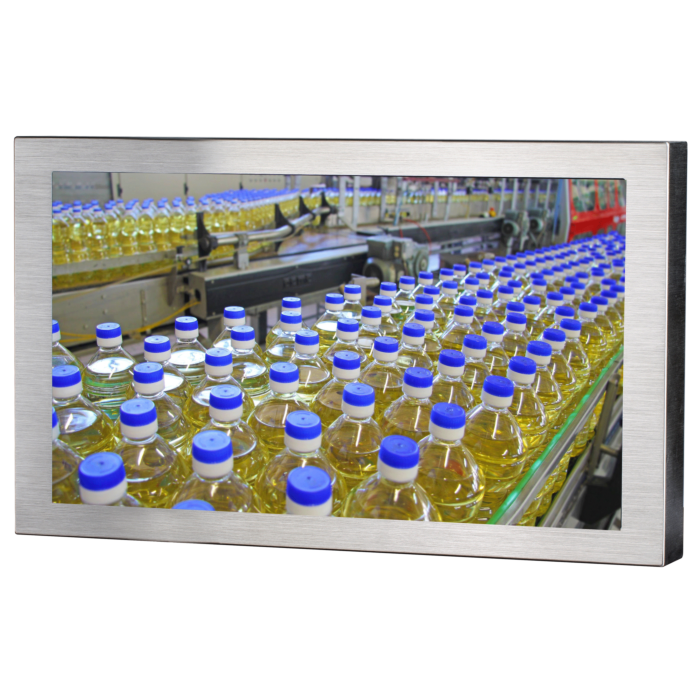

Tru-Vu VMW-21.5R 21.5" Waterproof LCD Monitor
The VMW-21.5R features a rugged NEMA 4X rustproof stainless steel enclosure. It will withstand rain, snow, sleet, etc. and are ideal for use in any area where water or liquids would damage standard monitors, such as manufacturing, plants, food processing, bottling plants, indoor sports facilities and stadiums, on marine vessels and any wash down environments.
SKU
Tru-Vu VMW-21.5R 21.5" Waterproof LCD Monitor
All TRU-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
| Model | VMW-21.5R |
| LCD Panel | 21.5” Color AHVA Panel; LED Backlights |
| Display Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Viewable Area | 18.76” x 10.55” (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (W) |
| Response Time | 22 TrF |
| Control | OSD (On-Screen Display) via Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirements | 90-240 VAC |
| Power Consumption | 60 Watts |
| Enclosure | NEMA 4X Weatherproof Stainless Steel with bottom vent holes |
| Mounting | 100 x 100 and 200 x 100 VESA Hole Pattern |
| Operating Temp | 32° to 140° F (0 to +60° C) |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS 10-200 HZ |
| Dimensions | TBD |
| Weight | TBD |
| Warranty | 3 Years |
