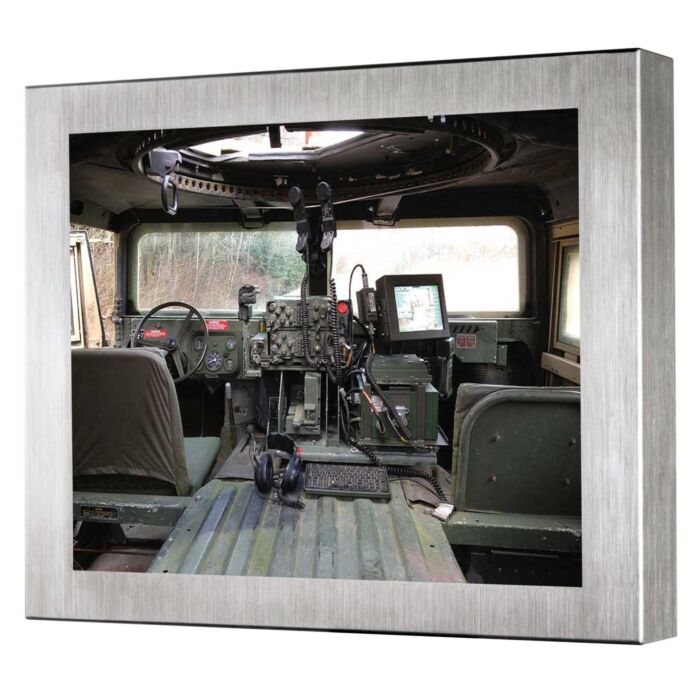

Tru-Vu VMTRW-15R-36 15” IP65 Industrial-Grade Touch Screen Monitor
The Tru-Vu VMTRW-15R-36 is a rugged, industrial-grade 15” touch screen monitor designed for demanding environments requiring maximum reliability. It features a stainless steel, NEMA 4X/IP65 rated enclosure that’s fully waterproof, corrosion-resistant, and engineered to endure exposure to liquids, harsh chemicals, and extreme temperatures ranging from -22°F to 185°F (-30°C to 85°C). Its advanced TRU-Tuff treatment and 5-wire resistive touch ensure responsive operation and durability against vibration and shock.
Trusted by military, law enforcement, aviation, industrial, marine, and transportation sectors worldwide, the VMTRW-15R-36 combines a high-quality 15” TN LCD panel with robust connectivity—VGA, HDMI, and DisplayPort. It operates on versatile 9-36VDC power, includes a lockable OSD and auto-restart functionality, and comes with a 3-year warranty. Designed for both indoor and outdoor use, it meets TAA compliance and supports reliable, long-term performance with a 50,000 hour MTBF.
Features:
- Waterproof NEMA 4X/IP65 stainless steel enclosure
- 5-wire resistive touch technology
- Auto restart after power loss
- Lockable on-screen display (OSD) controls
- TRU-Tuff shock/vibration resistance
- Wide voltage: 9-36VDC
- Multiple video inputs: VGA, HDMI, DisplayPort
- Extreme temperature tolerance: -22°F to 185°F
- 50,000 hour MTBF
- 3-year warranty
- TAA compliant
Applications:
- Food Processing
- Industrial Automation
- Marine Operations
- Military Systems
- Law Enforcement
- Transportation Hubs
- Energy Sector
- Inspection Systems
| Model | VMTRW-15R-36 |
| LCD Panel | 15” Color TN LCD (LED Backlights) |
| Touch Technology | 5-Wire Resistive Touch |
| Touch Interface | USB |
| Resolution | 1024 x 768 (XGA) |
| Viewable Area | 11.97” x 8.98” (304.12 x 228.09 mm) |
| Pixel Pitch | 0.297mm |
| Display Colors | 16.2 M |
| Aspect Ratio | 4:3 |
| Brightness | 400 nits |
| Contrast Ratio | 800:1 |
| Response Time | 8 msec Trf |
| Viewing Angle | 160° (H) x 150° (V) |
| Control | OSD (Rear Pushbuttons) |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 9-36VDC |
| Power Consumption | TBD |
| Enclosure | Stainless Steel |
| Enclosure Rating | NEMA 4X / IP65 |
| Operating Temperature | -22º to 185º F (-30º to 85˚C) |
| Humidity | 8-90% RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS 10-200 Hz |
| Dimensions | 15” x 11.52” x 2.81” (308.9 x 292.7 x 71.4mm) |
| Warranty | 3 Years |
