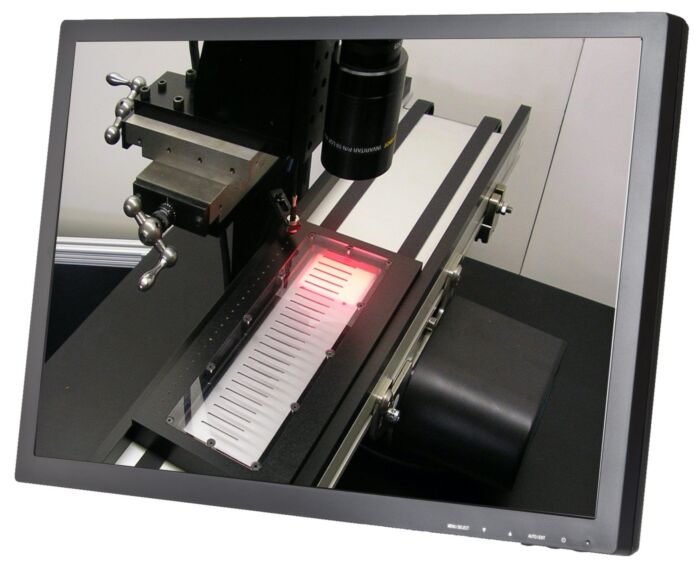

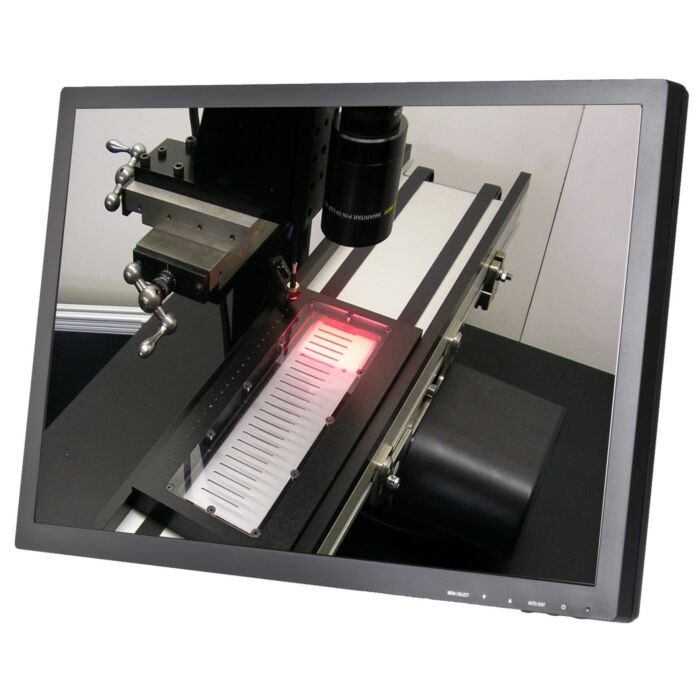

Tru-Vu VMTR-21.5R-NB 21.5” Touch Screen Monitor
The Tru‑Vu VMTR‑21.5R‑NB is a rugged 21.5‑inch industrial touch screen monitor engineered for demanding environments. Featuring 5‑Wire Resistive Touch technology and Full HD 1920×1080 resolution, it delivers precise control and vivid image clarity in manufacturing, automation, and A/V systems. Designed for long-term reliability, its LED backlights and lockable on-screen display controls ensure stable visibility and consistent operation.
Built for durability, each Tru‑Vu monitor undergoes the exclusive TRU‑Tuff treatment for enhanced protection against shock, vibration, and temperature variations. Operators benefit from flexible power options (12VDC, 24VDC, 100–240VAC) and integration-ready video inputs—VGA, HDMI, and DisplayPort—making the VMTR‑21.5R‑NB an ideal solution for OEM applications requiring superior performance and reliability.
Features:
- 21.5″ Full HD (1920×1080) LED display
- 5‑Wire Resistive Touch technology
- VGA, HDMI, DisplayPort inputs
- Lockable OSD controls
- Internal speakers
- Operates on 12VDC, 24VDC, or 100–240VAC
- Auto re‑start after power loss
- Custom OEM options available
- 3‑Year warranty
- TAA compliant
Applications:
- Manufacturing control
- Machine vision
- Food processing
- Surveillance systems
- Vehicle displays
- Museum exhibits
- Medical imaging
| Model | VMTR-21.5R-NB |
| LCD Panel | 21.5” Color LCD; LED Backlights |
| Touch Technology | 5-Wire Resistive |
| Touch Interface | USB |
| Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Viewable Area | 18.76” x 10.55” (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 18 ms (Trf) |
| Control | OSD via Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Audio | Built-in Speakers |
| Power Requirement | 12VDC, 24VDC, & 100-240VAC |
| Power Consumption | 25W |
| Enclosure | ABS |
| Mounting | 100 x 100 mm Rear VESA Holes |
| Operating Temperature | 32° to 140°F (0° to +60°C); 5–90% Non-Condensing RH |
| Shock | 50G, Half-sine Wave, 20ms, X/Y/Z |
| Vibration | 1.5 G RMS; Random Wave; 10–200Hz; 30 mins per axis (X,Y,Z) |
| Dimensions | 20.68” W x 12.60” H x 2.18” D (525.3 x 320 x 55.4 mm) |
| Weight | 9.8 lbs (4.5 kg) |
| Warranty | 3 Years |
