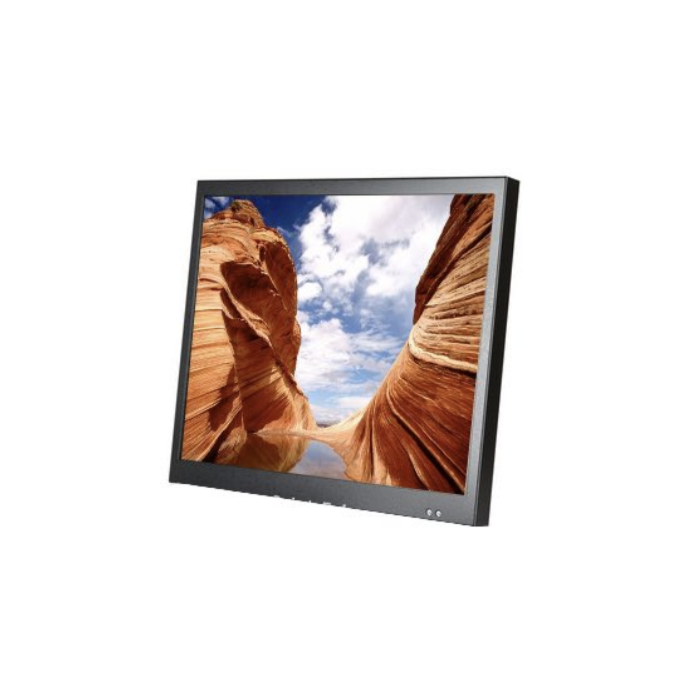

Tru-Vu VMOB-17G-36 17” Daylight Viewable Industrial-Grade LCD Monitors

The VMOB-17 Series are optically bonded LCD monitors, designed to dramatically improve viewability in bright daylight and other high ambient light conditions.
SKU
Tru-Vu VMOB-17G-36

The VMOB-17 Series daylight viewable LCD monitors are built with industrial-grade components, and receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This ensures maximum shock and vibration resistance. These monitors are ideal for a wide range of demanding applications including industrial, military, law enforcement, transportation, aviation, marine, inspection, cranes, oceanic, and entertainment.


Features:


  • Optical Bonding For Increased Contrast Ratio
  • Protective Anti-Reflective Glass
  • High Resolution: 1280 x 1024 (SXGA)
  • Video Inputs: VGA, DVI-D, Composite (BNC Loop-Thru)
  • Lockable On-Screen Display (OSD) Controls
  • Auto Re-Start After Power Loss
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • 3 Year Warranty
  •


    Applications:

  • Industrial
  • Military
  • Law Enforcement
  • Transportation
  • Aviation
  • Marine
  • Inspection
  • Cranes
  • Oceanic
  • Entertainment
  • Model VMOB-17G-36
    LCD Panel 17” Color LCD (LED Backlights)
    Display Resolution 1280 x 1024 (SXGA)
    Viewable Area 13.3” (W) x 10.64” (H) (337.92 x 270.34 mm)
    Pixel Pitch 0.264mm
    Display Colors 16.7 M
    Aspect Ratio 4:3 (5:4)
    o 4:3 (5:4) Brightness 350 nits
    Contrast Ratio 1,000:1
    Viewing Angle 160° (H) x 140° (V)
    Response Time 30 msec
    Control OSD (On-Screen Display) via Front Panel Pushbuttons
    Video Inputs VGA, DVI
    Analog Video Outputs -
    Power Requirements 12 VDC (2.1 mm Barrel Plug); (90-240 VAC via Included Power Brick)
    Power Consumption 40 Watts
    Enclosure  ABS
    Mounting 75 x 75mm Rear VESA Mount Holes (Optional Tabletop Base)
    Operating Temp -22° to 185° F (-30° to 85° C)
    Humidity 5-90% RH
    Shock 50 G (20 msec, ½ sine)
    Vibration 1.5G RMS 10-200 HZ
    Dimensions 14.95 (W) x 13.54” (H) x 1.9” (D) (379.8 x 344 x 47.2mm)
    Weight 6.9 lbs. (2.99kg)
    Warranty 3 Years
