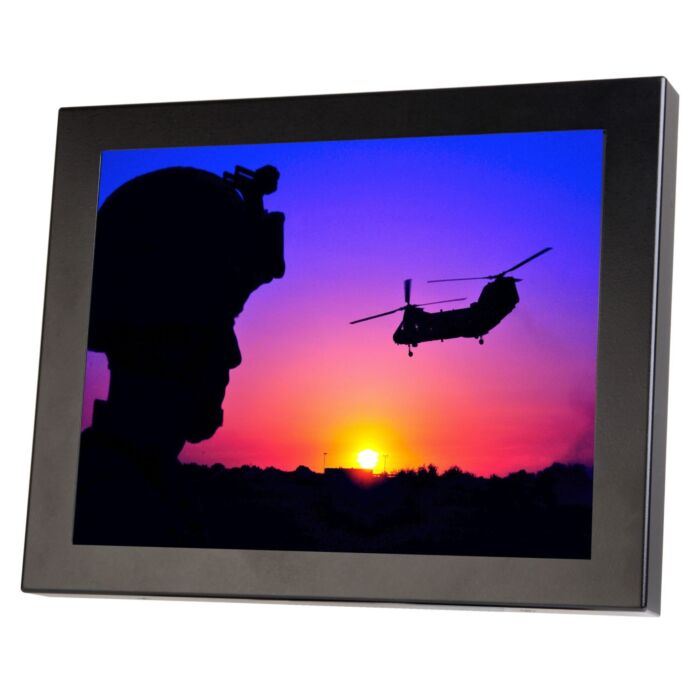

Tru-Vu VMOB-10.4U-24 10.4” Daylight Readable Outdoor LCD Display, Optical Bonded, Rugged Steel Enclosure, Shock & Vibration Resistant
The Tru-Vu VMOB-10.4U-24 is a 10.4-inch outdoor LCD monitor designed for exceptional visibility in bright daylight and high ambient light conditions. Featuring optical bonding and anti-glare protective glass, this rugged display delivers sharp, clear images while minimizing reflections and glare. Its robust steel enclosure and TRU-Tuff shock and vibration resistance make it ideal for demanding environments with extreme temperatures ranging from -22°F to +176°F. The monitor comes with versatile video inputs including VGA, HDMI, and BNC and includes rear VESA mounting for flexible installation.
Built with industrial-grade components and designed to operate reliably in outdoor and industrial settings including military, marine, and oil & gas applications, the VMOB-10.4U-24 is TAA compliant and backed by a 3-year warranty. The monitor’s auto-restart feature after power loss and high MTBF of 50,000 hours ensure continuous operation. Customization options are available to meet specific requirements, making this daylight readable display an excellent choice for challenging outdoor and indoor light environments.
Features:
- Optical Bonding
- Anti-Glare Glass
- TRU-Tuff Shock/Vibration Resistance
- Auto Power Re-Start
- Rugged Steel Enclosure
- Wide Operating Temperature (-22°F to +176°F)
- Rear VESA Mounting (75 x 75 mm)
- Video Inputs: VGA, HDMI, BNC Loop-Thru
- TAA Compliant
- 3-Year Warranty
Applications:
- Military Equipment
- Marine Displays
- Oil & Gas Monitoring
- Industrial Automation
- Outdoor Kiosks
- Transportation Controls
- Law Enforcement
- Aviation Systems
| Display Size | 10.4” Color LCD with LED Backlights |
| Resolution | 800 x 600 (SVGA) |
| Aspect Ratio | 4:3 |
| Brightness | 400 nits |
| Contrast Ratio | 700:1 |
| Viewable Area | 8.31" (W) x 6.24" (H) |
| Pixel Pitch | 0.264 mm |
| Display Colors | 16.2 million |
| Viewing Angle | 160º (H) x 130º (V) |
| Response Time | 15 msec |
| Controller | OSD via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, BNC Loop-Thru (NTSC/PAL Auto Detect) |
| Power Requirement | 12-24VDC (Includes 2.5mm Locking Pigtail) |
| Power Consumption | 10.4W (866 mA @ 12 VDC) |
| Enclosure | Painted Steel |
| Front Glass | Anti-Glare |
| Mounting | 75 x 75 mm Rear VESA Mount Holes (M4 x 6mm Screws) |
| Operating Temperature | -22° to +176°F (-30° to +80°C) |
| Humidity | 5 - 90% RH |
| Shock Resistance | 50G, 20ms, Half-sine wave |
| Vibration Resistance | 1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z) |
| Dimensions (W x H x D) | 10.13” x 7.96” x 1.73” (257.4 x 202.2 x 44 mm) |
| Weight | 3.90 lbs. (1.77 kg) |
| Warranty | 3 Years |
