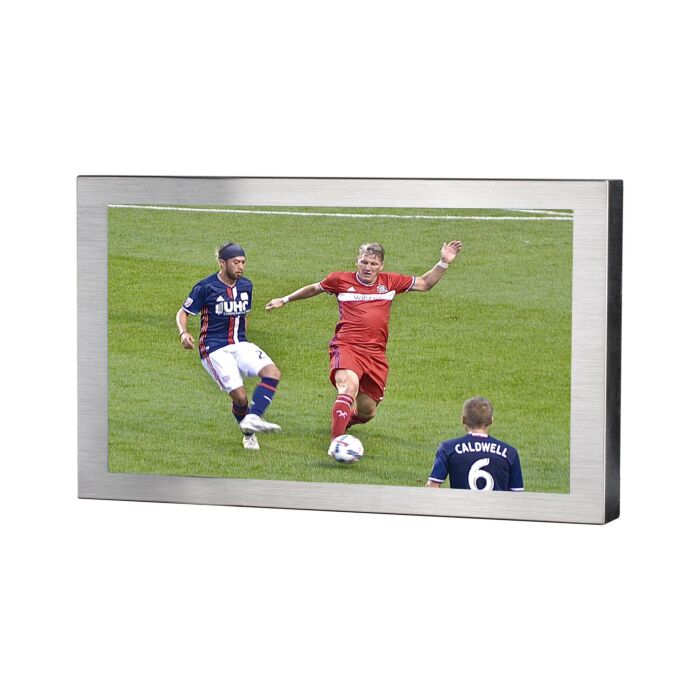

Tru-Vu VMOB-10.4C-24 10.4” Daylight Readable LCD Monitor
The VMOB-10.4 Series are optically-bonded LCD monitors, designed to dramatically improve viewability in high ambient light conditions. The optical bonding process injects an optical-grade epoxy bond between the surface of the LCD panel and the outer protective glass, eliminating the air gap between the two.
SKU
VMOB-10.4C-24
-TruVu
The VMOB-10.4 Series Daylight Readable LCD monitors are built with industrial-grade components and receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged powder-coated steel enclosure, ensures maximum shock and vibration resistance.
Features:
Applications:
| Model | VMOB-10.4C-24 |
| LCD Panel | 10.4” Color LCD; LED Backlights |
| Resolution | 800 x 600 |
| Viewable Area | 8.31” (W) x 6.24” (H) (211.2 x 158.4 mm) |
| Pixel Pitch | 0.264 mm |
| Display Colors | 16.2m |
| Aspect Ratio | 4:3 |
| Brightness | 400 nits |
| Contrast Ratio | 900:1 |
| Viewing Angle | 160° (H) x 130° (V) |
| Response Time | 15 msec |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA, DVI | VGA, S-Video & Composite (BNC) NTSC/PAL Auto-Detect | VGA, Composite BNC Loop-Thru, NTSC/PAL Auto-Detect |
| Power Consumption | 10.4W (866 mA @ 12 VDC) |
| Power Requirements | 12-24 VDC (2.5 mm Barrel Plug) 12-24 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Adapter 11-36 VDC (2.1 mm Barrel Plug) |
| Enclosure | Powder-Coated Steel |
| Mounting | 75 x 75 mm Rear VESA Mount Holes |
| Operating Temp | -22° to +176°F (-30° to +80°C) |
| Humidity | 5 - 90% RH |
| Shock | 50G, 20ms, Half-sine wave |
| Vibration | 1.5G (10-200 Hz, P-P) 30 mins./axis (X,YZ) |
| Weight | 3.9 lbs. |
