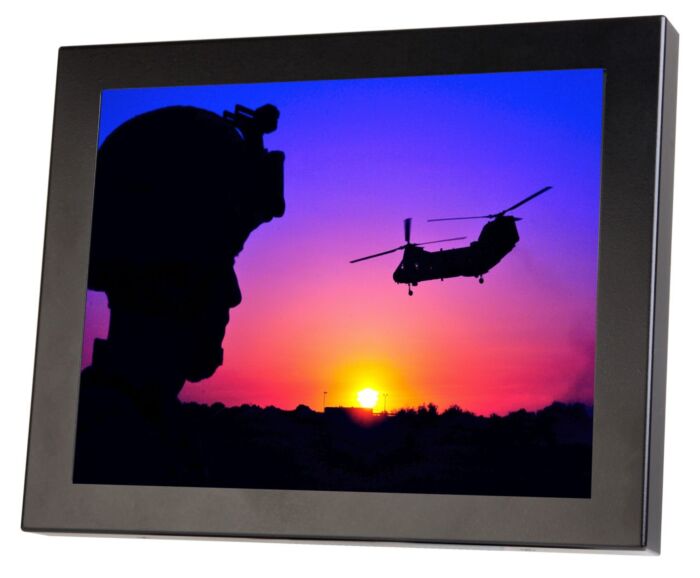

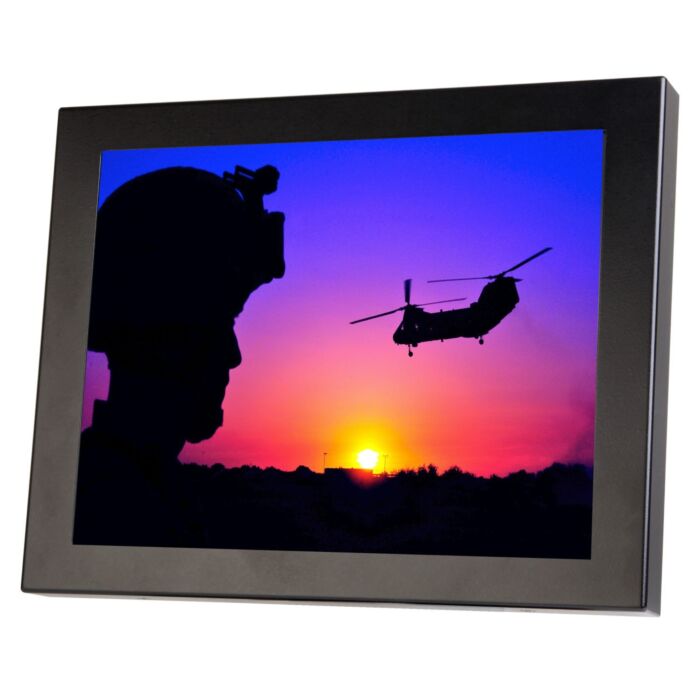

Tru-Vu VMOB-10.4B-INW 10.4” Daylight Readable Outdoor LCD Monitor
The Tru‑Vu VMOB‑10.4B‑INW delivers crystal‑clear visibility in bright daylight with advanced optical bonding and anti‑glare glass. Built for demanding outdoor use, it offers a rugged steel enclosure, wide temperature tolerance, and TRU‑Tuff durability to resist shock and vibration. Its high‑contrast, daylight‑readable 10.4″ LCD ensures sharp imagery even in high ambient light conditions, making it ideal for mission‑critical environments and continuous operation.
Designed and assembled in the USA, this outdoor LCD display supports VGA, HDMI, and composite inputs for flexible connectivity. The 3‑year warranty, TAA compliance, and multiple mounting options make it a dependable choice for OEMs and system integrators needing a bright, rugged monitor that performs in extreme environments.
Features:
- 10.4″ LCD with LED backlight
- Optical bonding for clarity and durability
- Anti‑glare protective outer glass
- 400 nits brightness, 700:1 contrast ratio
- Operates from ‑22°F to +176°F
- TRU‑Tuff rugged steel enclosure
- Auto restart after power loss
- VGA, HDMI, and BNC inputs
- 3‑year warranty, TAA compliant
Applications:
- Outdoor Kiosks
- Military Vehicles
- Industrial Control
- Marine Displays
- Transportation Hubs
- Security Systems
- Public Signage
| LCD Panel | 10.4” Color LCD; LED Backlights |
| Screen Treatment | Optical Bonding |
| Resolution | 800 x 600 (SVGA) |
| Viewable Area | 8.31” (W) x 6.24” (H) (211.2 x 158.4 mm) |
| Pixel Pitch | 0.264 mm |
| Display Colors | 16.2 million |
| Aspect Ratio | 4:3 |
| Brightness | 400 nits |
| Contrast Ratio | 700:1 |
| Viewing Angle | 160º (H) x 130º (V) |
| Response Time | 15 ms |
| Controls | OSD via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, Composite BNC Loop-Thru (NTSC/PAL Auto-Detect) |
| Power Requirement | 12-24 VDC or 90-240 VAC (Adapter Included) |
| Power Consumption | 10.4W (866 mA @ 12 VDC) |
| Enclosure | Painted Steel with Anti-Glare Glass |
| Mounting | 75 x 75 mm Rear VESA Mount Holes (M4 x 6mm Screws) |
| Operating Temperature | -22° to +176°F (-30° to +80°C) |
| Humidity | 5 - 90% RH |
| Shock | 50G, 20ms Half-Sine Wave |
| Vibration | 1.5G (10-200 Hz) 30 mins./axis (X,Y,Z) |
| Dimensions | 10.13” (W) x 7.96” (H) x 1.73” (D) (257.4 x 202.2 x 44 mm) |
| Weight | 3.90 lbs (1.77 kg) |
| Warranty | 3 Years |
