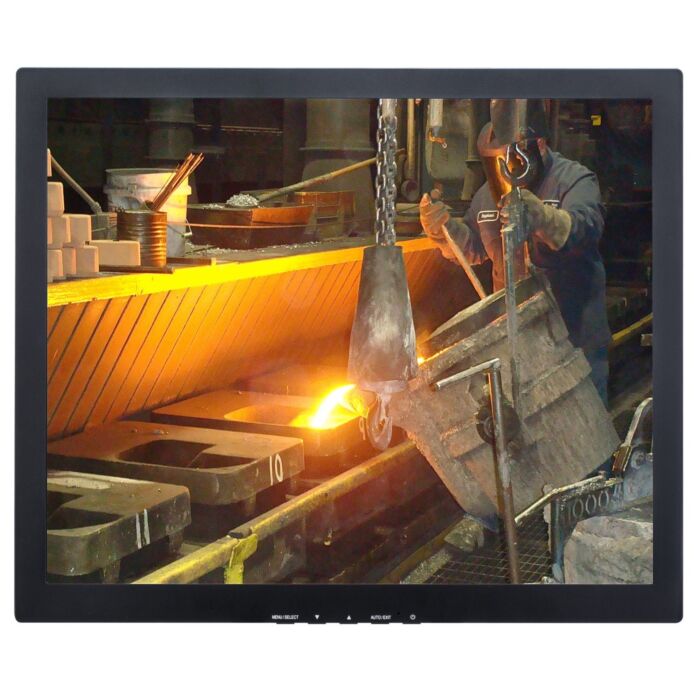

Tru-Vu VMM-19U-24S Rugged Industrial-Grade 19" Monitor
The Tru-Vu VMM-19U-24S is a robust 19-inch industrial-grade monitor engineered for demanding environments requiring high reliability and sharp visual performance. Featuring a 4:3 (5:4) aspect ratio and 1280 x 1024 resolution, this rugged LCD display ensures exceptional image clarity for surveillance systems, production lines, and machine vision setups. TRU-Vu’s proprietary TRU-Tuff treatment enhances resistance to shock, vibration, and environmental stress, ensuring dependable operation in harsh conditions.
Built in the USA with precision assembly, each VMM-19U-24S monitor includes RTV silicone protection on critical components, secure wiring, and industrial-grade materials. With 250 nits brightness, wide viewing angles, and multiple video input options such as VGA, HDMI, and BNC, this display delivers versatility and performance across numerous industrial and commercial applications. It supports 12/24VDC or standard AC input for flexible installation and includes a 3-year warranty.
Features:
- 19” SXGA LCD with LED backlight
- 1280 x 1024 resolution for sharp image clarity
- TRU-Tuff treatment for shock and vibration resistance
- Auto-restart after power loss
- Multiple video inputs: VGA, HDMI, BNC
- 250 nits brightness, 1000:1 contrast
- Lockable on-screen display controls
- 3-year warranty and TAA compliant
Applications:
- Machine Vision
- Factory Automation
- Security Surveillance
- Food Processing
- Vehicle Systems
- Pipeline Inspection
- Exhibit Displays
- Control Rooms
| Model | VMM-19U-24S |
| LCD Panel | 19” Color Defect-Free LCD; LED Backlights |
| Resolution | 1280 x 1024 (SXGA) |
| Viewable Area | 14.81” (W) x 11.85” (H) (376.17 x 300.98 mm) |
| Pixel Pitch | 0.294mm x 0.294mm |
| Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 250 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5 ms (Trf) |
| Controls | Front Panel OSD Pushbuttons (Lockable) |
| Video Inputs | VGA, HDMI, BNC (Loop-Thru, NTSC/PAL Auto Recognition) |
| Audio | Rear Speakers |
| Power | 12VDC (2.1mm), 24VDC (2.5mm), or 90–240VAC via Power Brick |
| Consumption | 18 Watts |
| Enclosure | ABS |
| Mounting | VESA 75 x 75 mm |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Altitude | Up to 18,000 ft |
| Humidity | 5–90% RH |
| Shock | 50G (20 msec, 1/2 sine) |
| Vibration | 1.5G RMS (10–200 Hz) |
| Dimensions | 16.59” (W) x 13.79” (H) x 1.85” (D) |
| Weight | 8 lbs (3.62 kg) |
| Warranty | 3 Years |
